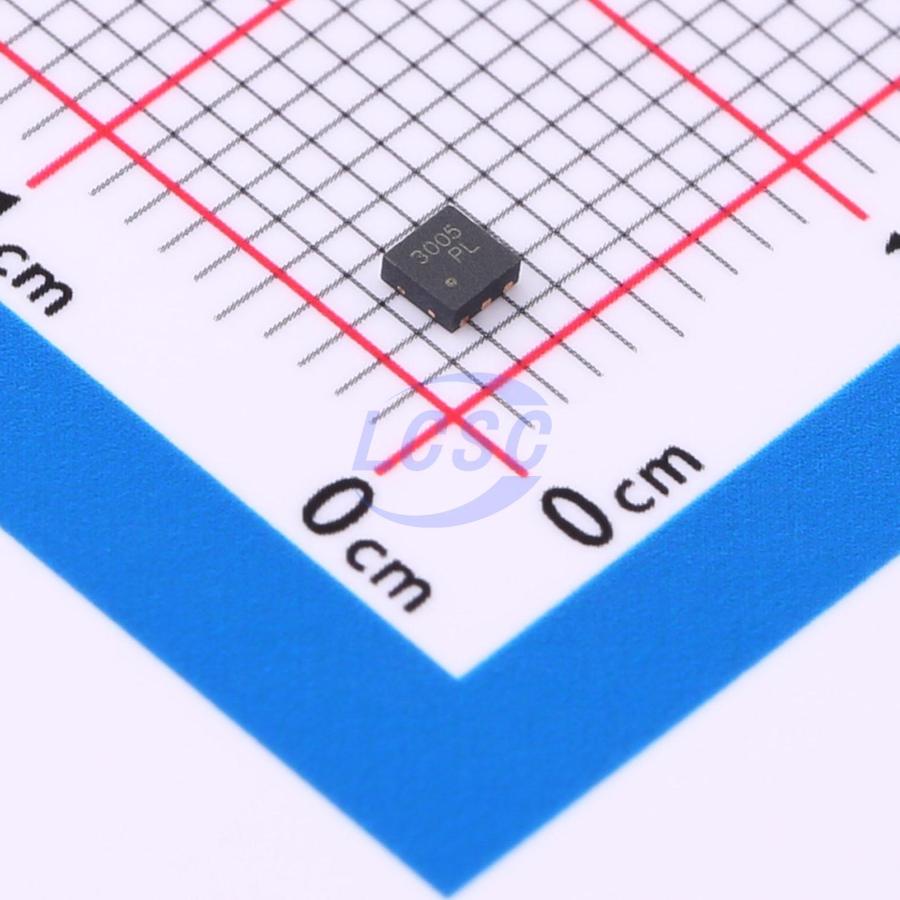

CJM3005
N-Channel 30V 5A DFNWB2x2-6L
DFNWB2x2-6LROHS CompliantActive
MOSFET N-CH 30V 5A DFNWB2x2-6L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJM3005
- Store part #
- C504121
- Package / case
- DFNWB2x2-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C504121
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.49 | ₹72.45 |
| 50+ | ₹11.62 | ₹581.00 |
| 150+ | ₹10.19 | ₹1,528.50 |
| 500+ | ₹9.12 | ₹4,560.00 |
| 3,000+ | ₹8.26 | ₹24,780.00 |
| 6,000+ | ₹7.82 | ₹46,920.00 |
5 × ₹14.49
₹72.45
excl. GST
₹85.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJM3005
₹72.45 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 35pF
- Ciss-Input Capacitance
- 245pF
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 42mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
Applications
- Ideal for Load Swith and Battery Protection Applications
Key features
- TrenchFET Power MOSFET
- Low RDS(ON)
- Typical ESD Protection
