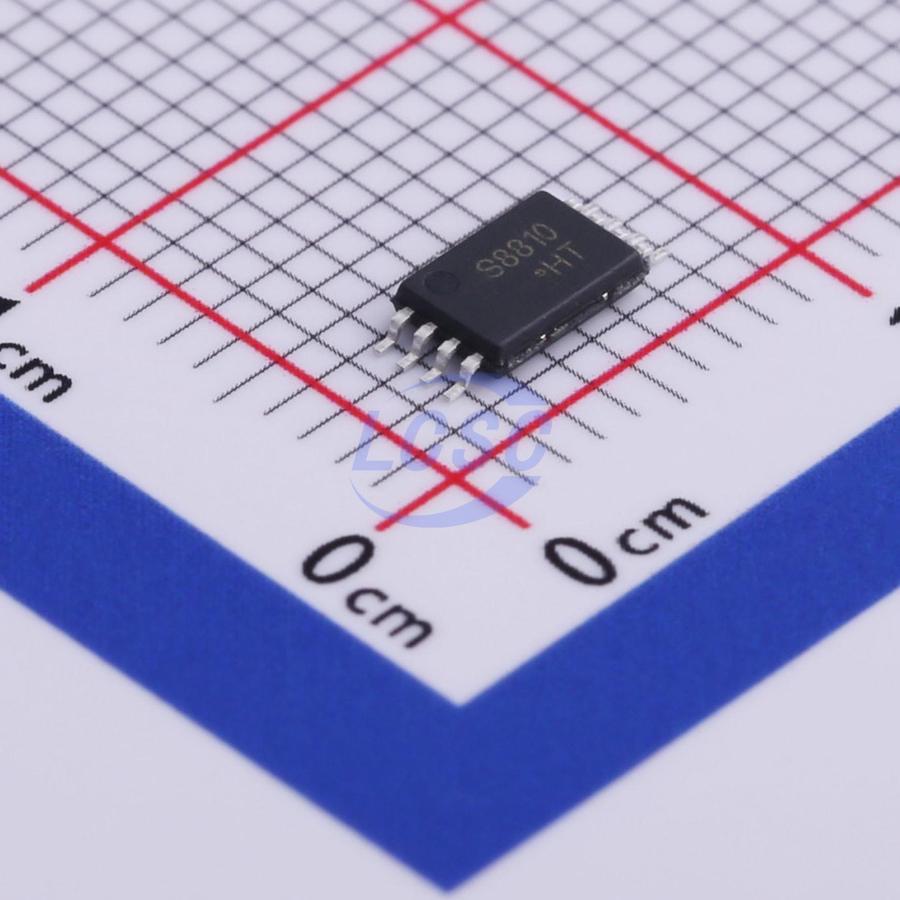

JSCJDatasheet (PDF)
CJS8810
20V 7A 26mΩ@1.8V 2 N-Channel N-Channel TSSOP-8 Single FETs, MOSFETs RoHS
TSSOP-8ROHS CompliantActive
MOSFET 2N-CH 20V 7A TSSOP-8
- Manufacturer
- JSCJ
- Manufacturer part #
- CJS8810
- Store part #
- C504161
- Package / case
- TSSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C504161
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.82 | ₹89.10 |
| 50+ | ₹14.26 | ₹713.00 |
| 150+ | ₹12.49 | ₹1,873.50 |
| 500+ | ₹11.15 | ₹5,575.00 |
| 3,000+ | ₹9.72 | ₹29,160.00 |
| 6,000+ | ₹9.18 | ₹55,080.00 |
5 × ₹17.82
₹89.10
excl. GST
₹105.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJS8810
₹89.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 185pF
- Ciss-Input Capacitance
- 1.15nF
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 7A
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 26mΩ@1.8V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The CJS8810 employs advanced trench technology to deliver excellent on-resistance RDS(ON) and low gate charge. It features ESD protection. The device is configured in a common-drain arrangement, making it suitable for use as a unidirectional or bidirectional load switch.
