JSCJDatasheet (PDF)

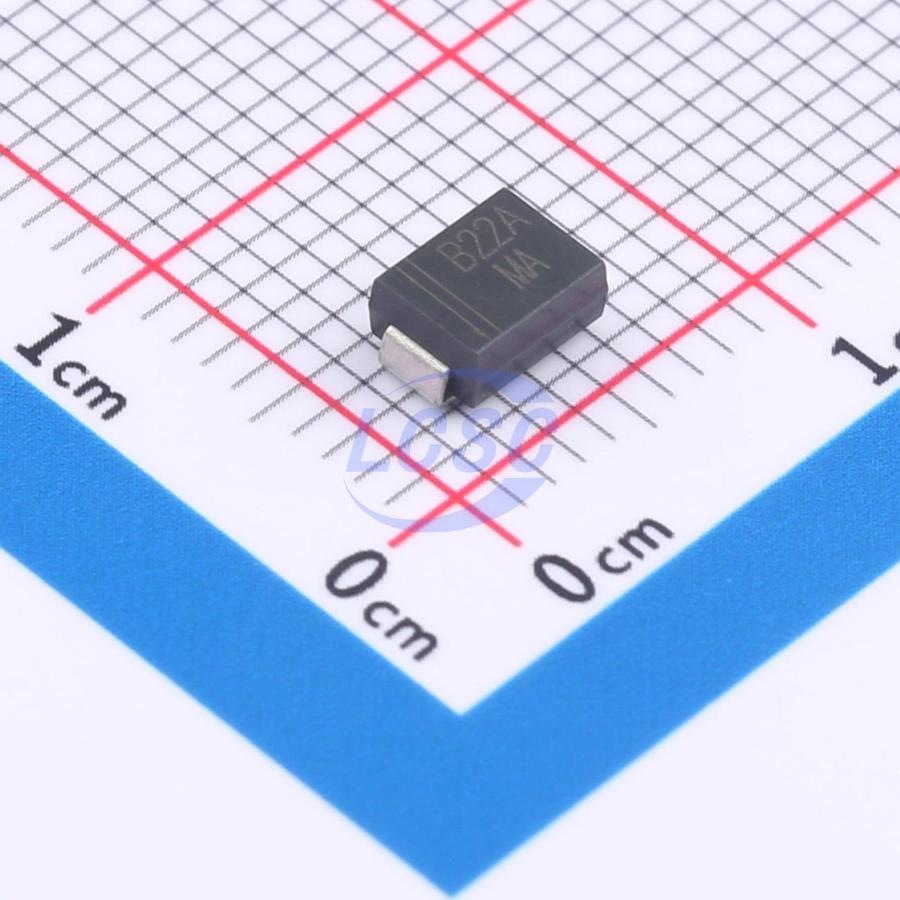

CJSMBJ22A
35.1VC Clamp 16.9A@10/1000us Ipp TVS DIODE SMBG
SMBGROHS CompliantActive
TVS DIODE 22VWM 35.1VC SMBG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMBJ22A
- Store part #
- C7499134
- Package / case
- SMBG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C7499134
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.63 | ₹76.30 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.26 | ₹25,560.00 |
| 9,000+ | ₹4.02 | ₹36,180.00 |
10 × ₹7.63
₹76.30
excl. GST
₹90.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJSMBJ22A
₹76.30 for 10 + GST
Specifications
- Clamping Voltage
- 35.1V
- Peak Pulse Current (Ipp)
- 16.9A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.88V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.2 g
