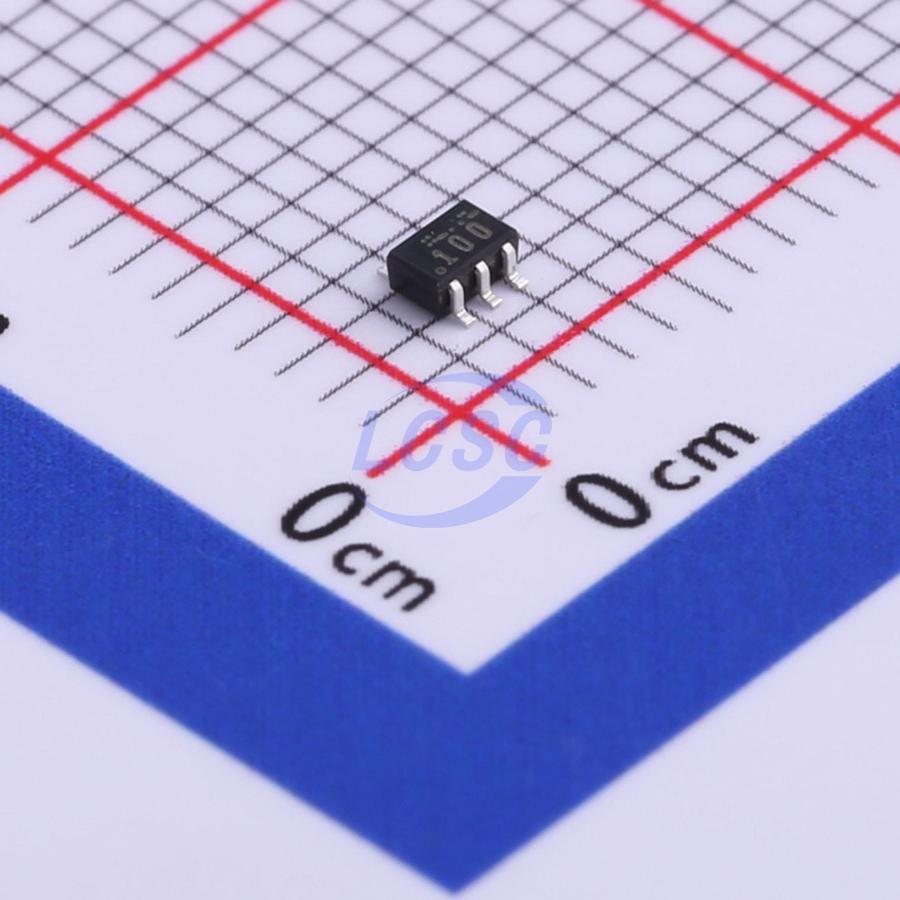

CDK

CKRF2179MM26-C4

SOT-363 Analog Switches, Multiplexers, Demultiplexers

SOT-363RoHSActive

L, S-band Middle Power SPDT Switch

Manufacturer: CDK
Manufacturer part #: CKRF2179MM26-C4
Store part #: C531464
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,695 in stock

#C531464

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.18	₹105.90
50+	₹16.80	₹840.00
150+	₹14.92	₹2,238.00
500+	₹12.58	₹6,290.00
2,500+	₹10.17	₹25,425.00
5,000+	₹9.55	₹47,750.00
10,000+	₹9.42	₹94,200.00
20,000+	₹9.33	₹1,86,600.00

Quantity (min 5, multiples of 5)

5 × ₹21.18

₹105.90

excl. GST

₹124.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 10,000 per reel

CKRF2179MM26-C4

₹105.90 for 5 + GST

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.062 g

Overview

The CKRF2179MM26 is a pHEMT GaAs SPDT (Single Pole Double Throw) switch. This device can operate from 0.05 to 3.06 Hz, having low insertion loss and high isolation.

Applications

Wireless LAN (IEEE 802.11 b/g)

Key features

Control voltage: VC(H) = 1.8 to 5.3 V (3.0V TYP.), VC(L) = -0.2 to 0.2 V (0V TYP.)
Low Insertion Loss: L_ins1 = 0.30 dB TYP. @ f = 0.05 to 0.5 GHz, L_ins2 = 0.30 dB TYP. @ f = 0.5 to 1.0 GHz, L_ins3 = 0.40 dB TYP. @ f = 1.0 to 2.0 GHz, L_ins4 = 0.45 dB TYP. @ f = 2.0 to 2.5 GHz, L_ins5 = 0.45 dB TYP. @ f = 2.5 to 3.0 GHz
High Isolation: ISL1 = 39 dB TYP. @ f = 0.05 to 0.5 GHz, ISL2 = 33 dB TYP. @ f = 0.5 to 1.0 GHz, ISL3 = 27 dB TYP. @ f = 1.0 to 2.0 GHz, ISL4 = 26 dB TYP. @ f = 2.0 to 2.5 GHz, ISL5 = 23 dB TYP. @ f = 2.5 to 3.0 GHz
Handling power: P_in(0.5dB) = +32 dBm TYP. @ f = 3.0 GHz, VC(H) = 3.0 V, VC(L) = 0 V
