CKS

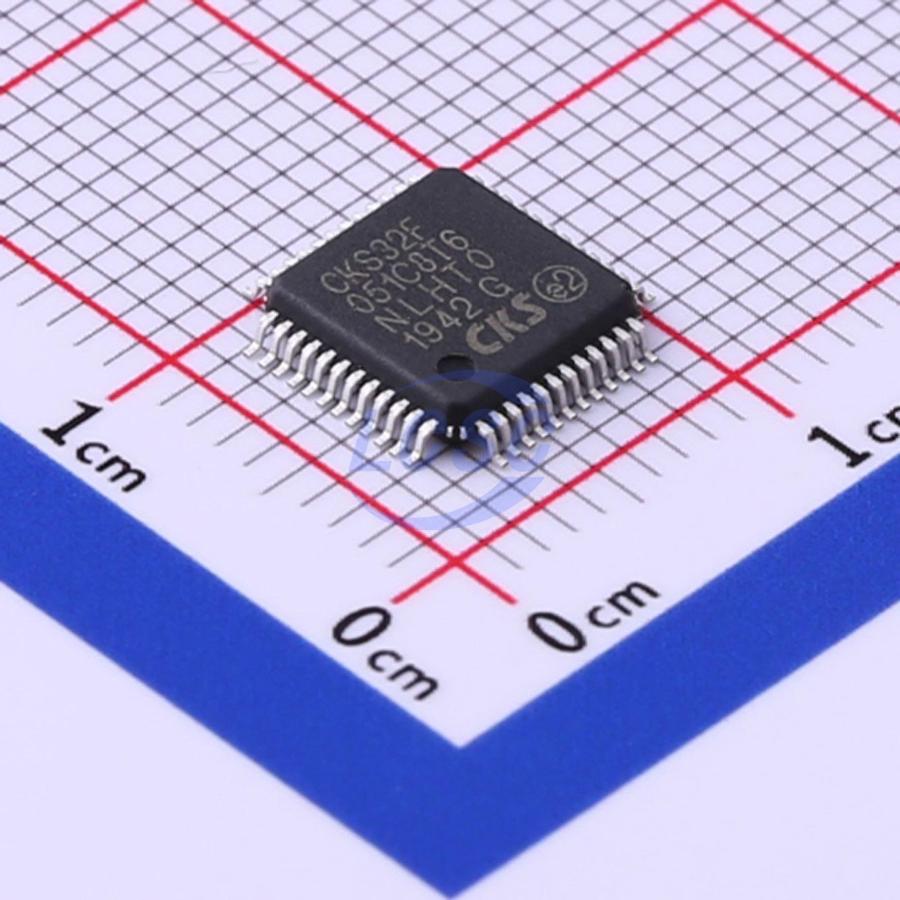

CKS32F051C8T6

ARM Cortex-M0 32 Bit 48MHz LQFP-48(7x7) Microcontrollers RoHS

LQFP-48(7x7)ROHS CompliantActive

Low-and medium-density advanced ARM-based 32-bit MCU with Flash, timers, ADC, DAC and comm. interfaces

Manufacturer: CKS
Manufacturer part #: CKS32F051C8T6
Store part #: C556574
Package / case: LQFP-48(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,733 in stock

#C556574

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹138.90	₹138.90
10+	₹126.74	₹1,267.40
30+	₹120.02	₹3,600.60
250+	₹110.91	₹27,727.50
500+	₹107.43	₹53,715.00
1,000+	₹105.92	₹1,05,920.00

Quantity (min 1)

1 × ₹138.90

₹138.90

excl. GST

₹163.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

CKS32F051C8T6

₹138.90 for 1 + GST

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Number of I/O: 39
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~3.6V
Program Memory Type: FLASH
Program Storage Size: 64KB
CPU Core: ARM Cortex-M0
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.76 g

Overview

The CKS32F051xx series features a high-performance M0 32-bit RISC core operating at up to 48 MHz, with high-speed embedded Flash (up to 64 KB) and SRAM (up to 8 KB), and integrates a rich set of enhanced peripherals and I/O interfaces. Devices in this series offer standard communication interfaces (up to two I²C, two SPI, one I²S, one HDMI CEC, and two USART), one 12-bit ADC, one 12-bit DAC, up to five general-purpose 16-bit timers, one 32-bit timer, and one advanced-control PWM timer. The operating temperature range is -40 to +85°C and -40 to +105°C, the supply voltage range is 2.0 to 3.6 V, and a range of power-saving modes is included for low-power applications. The series is available in three package options ranging from 32 to 64 pins, with peripheral configurations varying by device. These features make it suitable for a wide range of applications.
