CL10A226MP8NUNE

The Samsung Electro-Mechanics CL10A226MP8NUNE is a multilayer ceramic chip capacitor (MLCC) with a nominal capacitance of 22µF. The "M" tolerance code indicates ±20% capacitance tolerance, while the "P" rated voltage code specifies a 10V DC working voltage. The capacitor uses an X5R (Class II) dielectric and features Ni internal electrodes with Ni barrier and Sn-plated terminations.

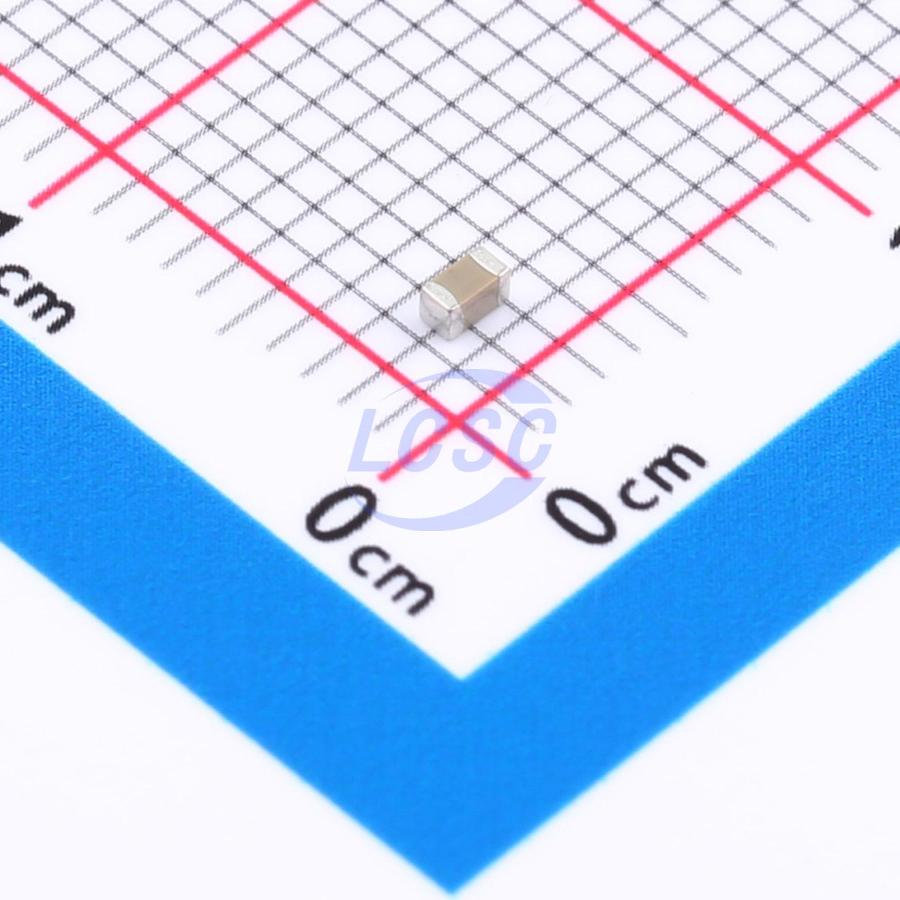

The CL10A226MP8NUNE uses the 1608 metric (0603 imperial) package, identified by the "10" size code. The standard package dimensions are 1.60 ± 0.10 mm in length and 0.80 ± 0.10 mm in width. For this specific high-capacitance part, the product lineup specifies a maximum thickness of 1.10 mm, which overrides the nominal thickness associated with the generic case size.

The capacitor uses an X5R (Class II) dielectric, represented by the dielectric code "A". X5R capacitors provide a capacitance change within ±15% over an operating temperature range of −55°C to +85°C.

Samsung specifies that its Standard & High Capacitance MLCC series is suitable for a wide range of electronic equipment, including desktop PCs, notebook PCs, DC-DC converters, handheld products (HHP), digital still cameras (DSC), digital video cameras (DVC), LCD TVs, memory modules, PDAs, and game machines. The CL10A226MP8NUNE is part of this Standard & High Capacitance MLCC family.

The CL10A226MP8NUNE uses packaging code E, which denotes Embossed Type, 7-inch Reel. Samsung also states that its MLCC products comply with RoHS and REACH requirements. The catalog does not specify a part-specific Moisture Sensitivity Level (MSL) or peak reflow temperature for this capacitor.
