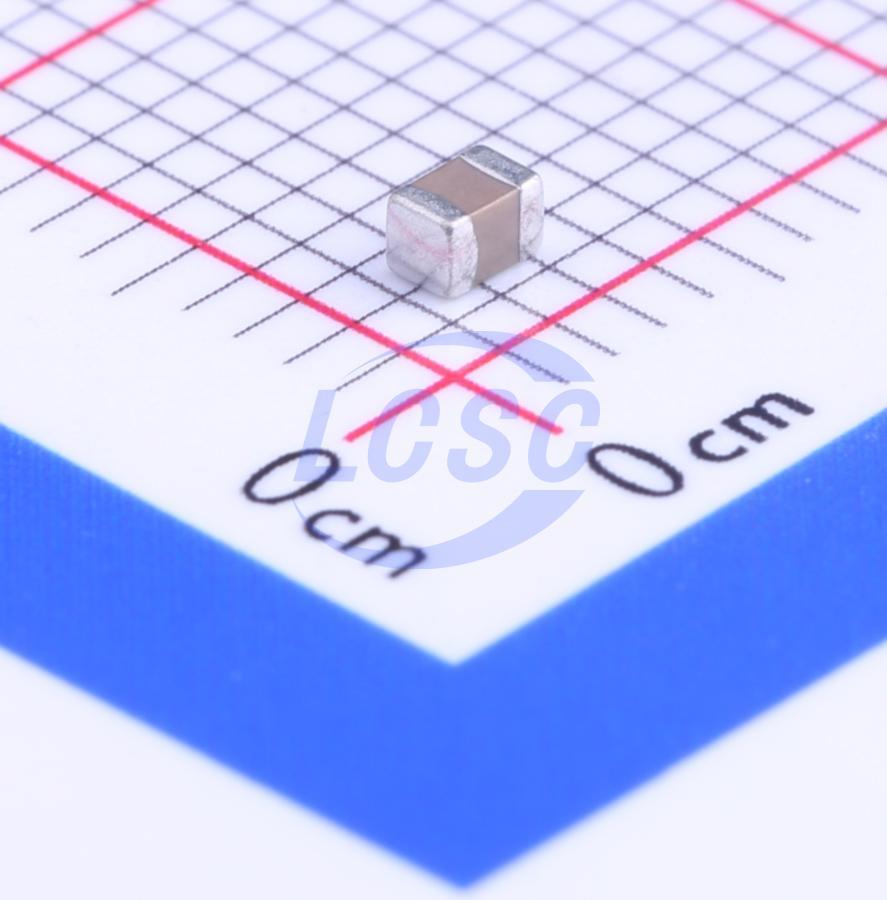

CL21A106KOQNNNE
10uF ±10% 16V Ceramic Capacitor X5R 0805
CAP CER 10uF 16V X5R 0805
- Manufacturer
- Samsung Electro-Mechanics
- Manufacturer part #
- CL21A106KOQNNNE
- Store part #
- C1713
- Package / case
- 0805
- Category
- Ceramic Capacitors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,02,680 in stock
#C1713
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹8.40 | ₹168.00 |
| 200+ | ₹6.14 | ₹1,228.00 |
| 600+ | ₹4.97 | ₹2,982.00 |
| 2,000+ | ₹4.01 | ₹8,020.00 |
| 10,000+ | ₹3.68 | ₹36,800.00 |
| 20,000+ | ₹3.45 | ₹69,000.00 |
20 × ₹8.40
₹168.00
excl. GST
₹198.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CL21A106KOQNNNE
₹168.00 for 20 + GST
Specifications
- Capacitance
- 10uF
- Temperature Coefficient
- X5R
- Tolerance
- ±10%
- Voltage Rating
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.044 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EMK212ABJ106KG-T#C111662Taiyo Yuden · 0805 | Taiyo Yuden | 0805 | 5,220 | ₹7.54 · 5,220 in stock | View |
 | TCC0805X5R106K160FTN#C18185764CCTC · 0805 | CCTC | 0805 | 3,250 | ₹7.90 · 3,250 in stock | View |
 | TCC0805X5R106K250FTC#C18185769CCTC · 0805 | CCTC | 0805 | 20,190 | ₹10.77 · 20,190 in stock | View |
 | HGC0805R5106K250NSLJ#C19103847Chinocera · 0805 | Chinocera | 0805 | 2,24,180 | ₹5.89 · 2,24,180 in stock | View |
| CSA0805X5R106K250MT#C20070397HRE · 0805 | HRE | 0805 | 3,430 | ₹6.51 · 3,430 in stock | View | |
Questions about CL21A106KOQNNNE
What are the fundamental electrical characteristics of the Samsung CL21A106KOQNNNE?
The Samsung CL21A106KOQNNNE is a multilayer ceramic capacitor (MLCC) with a nominal capacitance of 10 μF, a rated DC working voltage of 16 V, and a ±10% capacitance tolerance (code K). The part uses an X5R Class II dielectric, making it suitable for general-purpose capacitor applications within its specified electrical ratings.
What are the package size and physical dimensions of the CL21A106KOQNNNE?
The CL21A106KOQNNNE is supplied in the standard 0805 (2012 metric) surface-mount package. It has nominal dimensions of 2.00 ± 0.15 mm in length, 1.25 ± 0.15 mm in width, and 1.25 ± 0.15 mm in thickness, in accordance with Samsung's standard 0805 MLCC package specification.
What dielectric material and operating temperature range does this capacitor use?
The CL21A106KOQNNNE uses an X5R Class II ceramic dielectric. It is specified for an operating temperature range of −55°C to +85°C, with a capacitance change within ±15% over this temperature range, consistent with the X5R dielectric specification.
What insulation and construction specifications does the CL21A106KOQNNNE provide?
The CL21A106KOQNNNE has an initial insulation resistance of at least 10,000 MΩ or 100 MΩ·μF, whichever is smaller, when measured under the specified test conditions for products rated at 16 V or below. The capacitor is constructed with nickel (Ni) internal electrodes, copper (Cu) terminations, a nickel (Ni) barrier layer, and 100% lead-free tin (Sn) plating, corresponding to Samsung's termination code "N".
What packaging format is available for the CL21A106KOQNNNE?
The "E" packaging code indicates that the capacitor is supplied in embossed carrier tape on a 7-inch reel for automated surface-mount assembly. Packaging quantities depend on Samsung's packaging specification.
