HXY MOSFETDatasheet (PDF)

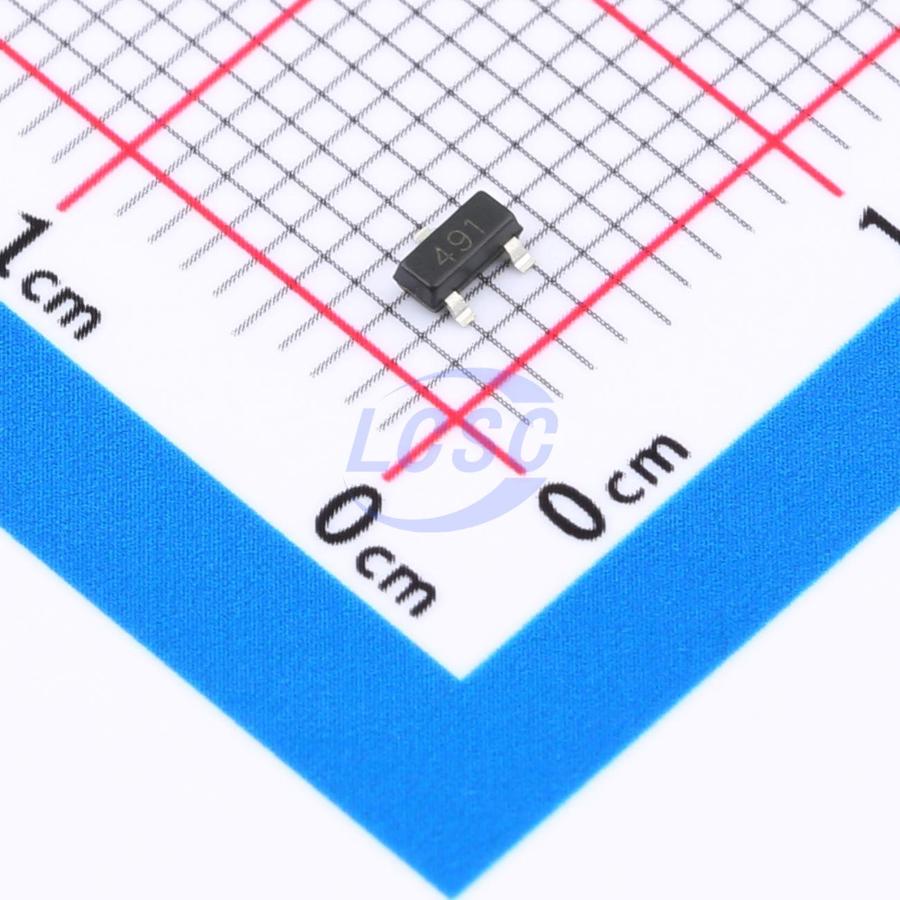

CMPT3820-HXY
60V 300 1A 1 NPN NPN SOT-23 Single Bipolar Transistors RoHS
SOT-23ROHS CompliantActive
NPN Plastic-Encapsulate Transistors
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- CMPT3820-HXY
- Store part #
- C47506942
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C47506942
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.06 | ₹55.30 |
| 50+ | ₹8.75 | ₹437.50 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 500+ | ₹6.72 | ₹3,360.00 |
| 3,000+ | ₹6.02 | ₹18,060.00 |
| 6,000+ | ₹5.68 | ₹34,080.00 |
5 × ₹11.06
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CMPT3820-HXY
₹55.30 for 5 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Operating Temperature
- -55℃~+150℃
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 60V
- DC Current Gain
- 300
- Emitter-Base Voltage VEBO
- 5V
- Current - Collector(Ic)
- 1A
- Pd - Power Dissipation
- 250mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Key features
- BVCEO >60 V
- IC = 1A Continuous Collector Current
- ICM = 2A Peak Pulse Current
- 500mW Power Dissipation
- hFE Characterized up to 2A for High Current Gain Hold Up
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DNBT8105-7-HXY#C47506928HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 50 | ₹8.06 · 50 in stock | View |
 | DSS4160TQ-7-HXY#C47506931HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,340 | ₹11.15 · 2,340 in stock | View |
 | FMMT451TA-HXY#C47506934HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 185 | ₹15.90 · 185 in stock | View |
 | ZXTN2038FTA-HXY#C47506936HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 175 | ₹13.24 · 175 in stock | View |
 | PBSS4160T-HXY#C47506939HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 190 | ₹6.73 · 190 in stock | View |
