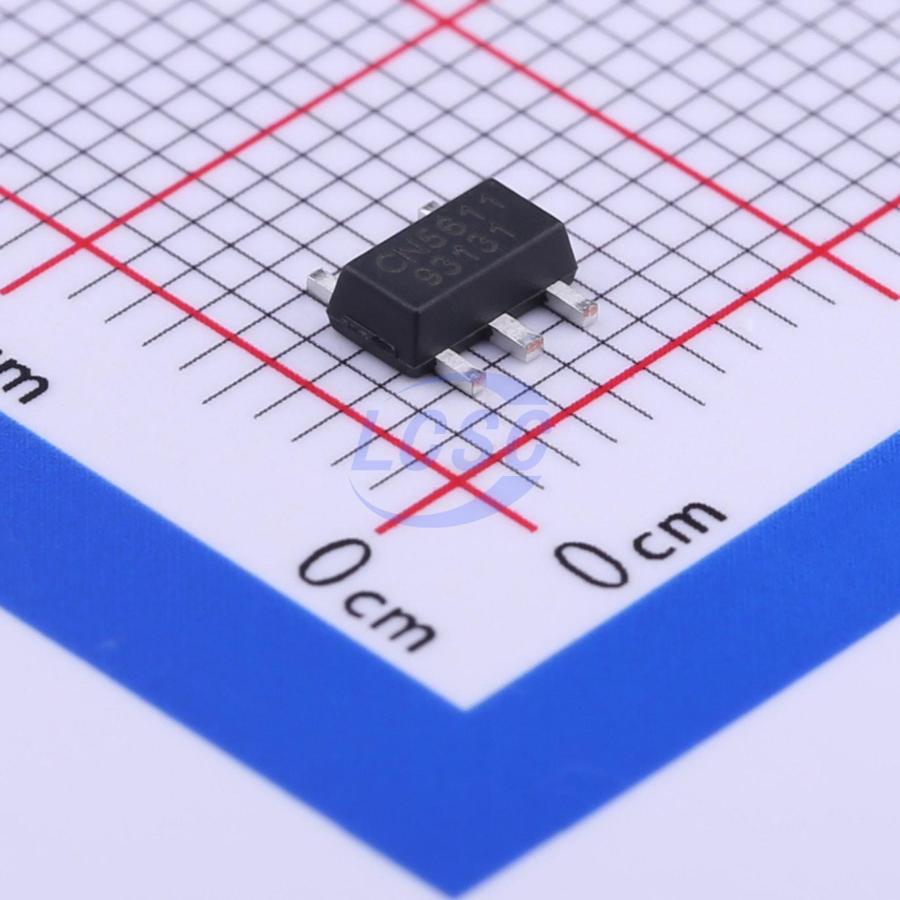

CONSONANCE

CN5611

LED Driver IC 1 Output PWM Dimming 800mA SOT-89-5

SOT-89-5RoHSActive

Low-dropout, high-power light-emitting diode (LED) driver integrated circuit

Manufacturer: CONSONANCE
Manufacturer part #: CN5611
Store part #: C12378
Package / case: SOT-89-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,445 in stock

#C12378

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹47.19	₹235.95
50+	₹37.77	₹1,888.50
150+	₹33.74	₹5,061.00
1,000+	₹25.00	₹25,000.00
2,000+	₹22.77	₹45,540.00
5,000+	₹21.42	₹1,07,100.00

Quantity (min 5, multiples of 5)

5 × ₹47.19

₹235.95

excl. GST

₹278.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

CN5611

₹235.95 for 5 + GST

Specifications

Features: Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Output Current: 800mA
Constant Current Accuracy: 8%
Voltage - Input(DC): 2.7V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.73 g

Overview

CN5611 is a current modulation circuit operating from 2.7V to 6V, capable of delivering a constant output current up to 800mA, suitable for driving various types of LEDs including white LEDs. The LED current at CN5611's LED pin is set by an external resistor, with a settable current range of 30mA to 800mA. An integrated power transistor significantly reduces the external component count. Additional features include over-temperature protection and LED short/open circuit protection. CN5611 is available in a 5-pin SOT89 package with excellent thermal dissipation capability.
