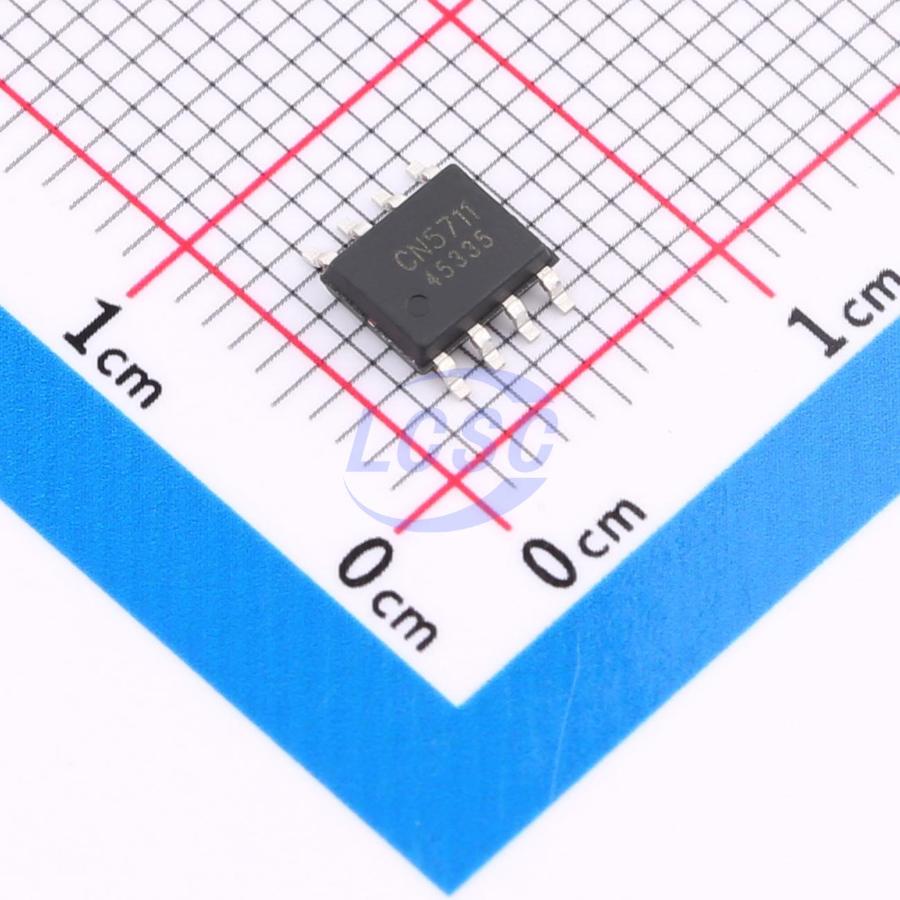

CN5711

CN5711 is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant output current can be set up to 1.5A with an external resistor. The CN5711 is ideal for driving LED. The on-chip power MOSFET and current sense block greatly reduce the number of external component count. The CN5711 adopts the temperature regulation instead of temperature protection function, the temperature regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage drop. Other features include chip enable, etc. CN5711 is available in thermally-enhanced 8-pin small outline package (eSOP8).

Applications

• Flashlight
• High-brightness LED driver
• LED headlights
• Emergency lights and lighting

Key features

• Operating Voltage Range: 2.8V to 6V
• On-chip Power MOSFET
• Low Dropout Voltage: 0.37V @ 1.5A
• LED Current up to 1.5A
• Output Current Accuracy: ±5%
• Chip Temperature Regulation
• Over LED Current Protection
• Operating Temperature Range: -40°C to +85°C
• Available in eSOP8 Package
• Pb-free, Rohs Compliant, Halogen Free
