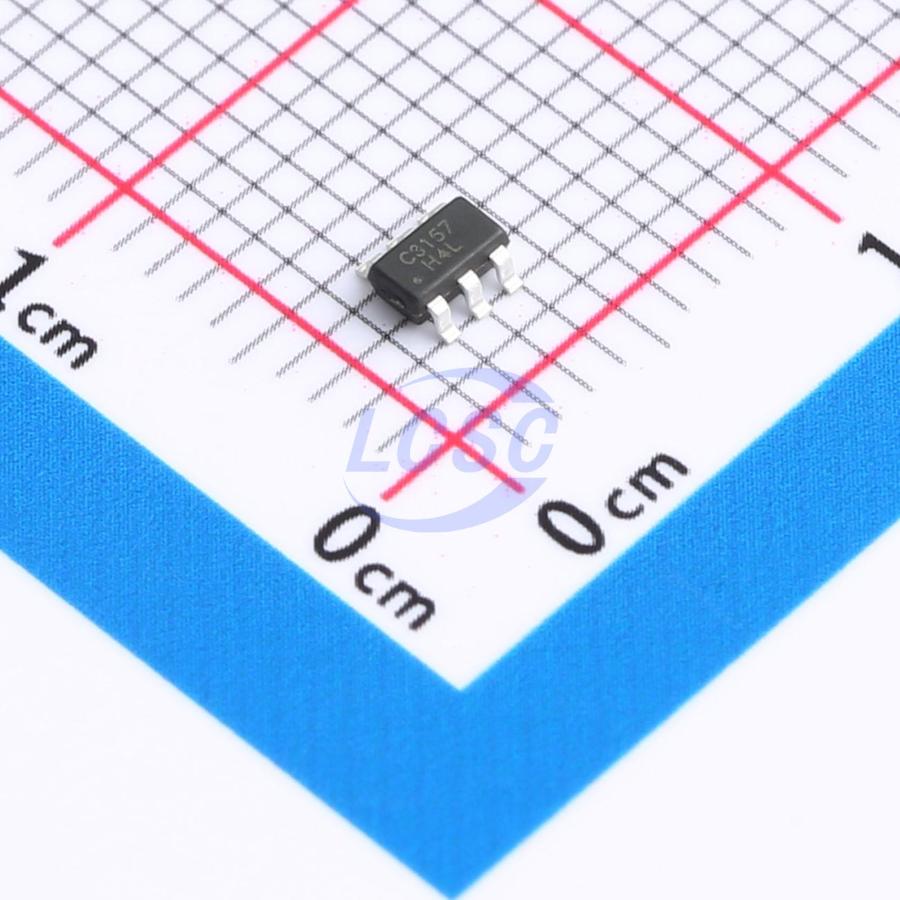

COSINE

COSTS5A3157DBVR

IC SWITCH 2:1 8Ω@5V SOT-23-6

SOT-23-6ROHS CompliantActive

Low-Voltage SPDT Analog Switch, 2:1 Multiplexer / Demultiplexer Bus Switch

Manufacturer: COSINE
Manufacturer part #: COSTS5A3157DBVR
Store part #: C42428253
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,210 in stock

#C42428253

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.13	₹71.30
100+	₹5.64	₹564.00
300+	₹4.90	₹1,470.00
3,000+	₹4.34	₹13,020.00
6,000+	₹3.89	₹23,340.00
9,000+	₹3.66	₹32,940.00

Quantity (min 10, multiples of 10)

10 × ₹7.13

₹71.30

excl. GST

₹84.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

COSTS5A3157DBVR

₹71.30 for 10 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 8Ω@5V
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 1.4ns
Con: 15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

Low-voltage, high-bandwidth SPDT CMOS analog switches or 2:1 multiplexers/demultiplexers with a single output enable control pin. The device supports rail-to-rail signal swing from a single supply of 1.65V to 5.5V. When the switch is on, conduction performance is identical in both directions. The output enable pin places the signal path in a high-impedance state, isolating the bus when not in use and reducing current consumption. Offers low on-resistance and high bandwidth with break-before-make functionality to prevent signal distortion when switching signals from one channel to another. Ideal for high-speed signal switching in mobile and consumer applications.
