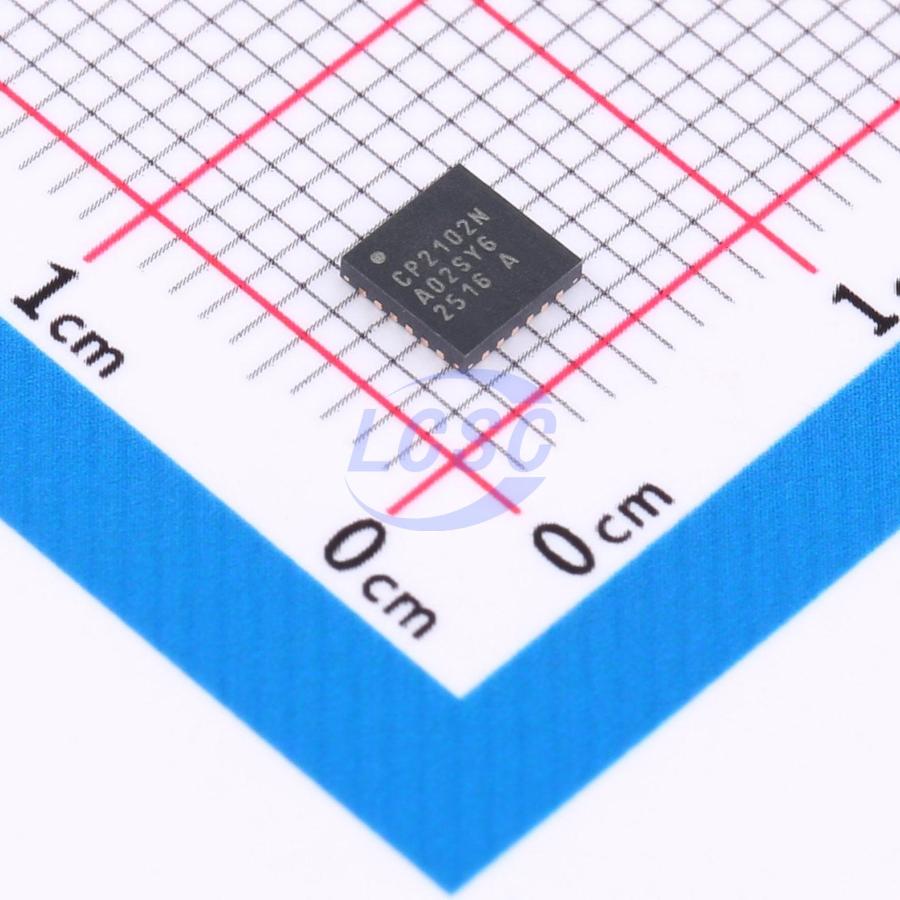

CP2102N-A02-GQFN24R

The CP2102N devices, part of the USBXpress family, are designed to quickly add USB to your applications by eliminating firmware complexity and reducing development time. These highly-integrated USB-to-UART bridge controllers provide a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. CP2102N includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, and Universal Asynchronous Receiver/Transmitter (UART) in packages as small as 3 mm×3 mm. No other external USB components are required for development. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2102N devices enable quick USB connectivity with minimal development effort.

Applications

• POS terminals
• USB dongles
• Gaming controllers
• Medical equipment
• Data loggers

Key features

• No firmware development required
• Simple GUI-based configurator
• Integrated USB transceiver; no external resistors required
• Integrated clock; no external crystal required
• USB 2.0 full-speed compatible
• Data transfer rates up to 3 Mbaud
• USB Battery Charger Detection (USB BCS 1.2 Specification)
• Remote wakeup for waking a suspended host
• Low operating current: 9.5 mA
• Royalty-free Virtual COM port drivers
• Internal 960-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
• On-chip power-on reset circuit
• On-chip voltage regulator — 3.3 V output
• Pin compatible with CP2101/2/9 (QFN28 package)
• Pin compatible with CP2104 (QFN24 package)
• USB Specification 2.0 compliant; full-speed (12 Mbps)
• USB suspend states supported via SUSPEND pins
• Single power supply of 3.0 to 3.6 V or 3.0 to 5.25 V
• Works with existing COM port Applications
• Supported on Windows, Mac, and Linux
• Royalty-free distribution license
