TDSEMICDatasheet (PDF)

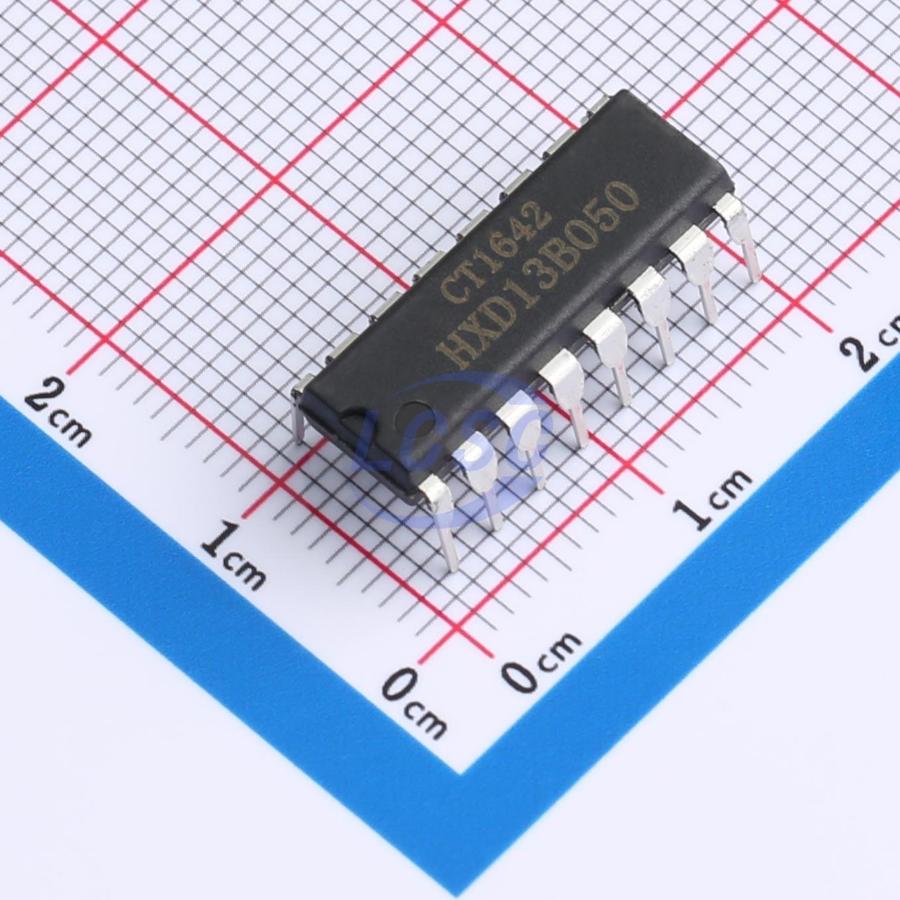

CT1642-TD
20mA 3.3V DIP-16 LED Drivers ICs RoHS
DIP-16ROHS CompliantActive
LED driver control circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- CT1642-TD
- Store part #
- C42421862
- Package / case
- DIP-16
- Category
- LED Drivers ICs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C42421862
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.17 | ₹170.85 |
| 50+ | ₹29.93 | ₹1,496.50 |
| 150+ | ₹28.11 | ₹4,216.50 |
| 500+ | ₹25.84 | ₹12,920.00 |
| 2,500+ | ₹24.83 | ₹62,075.00 |
| 5,000+ | ₹24.22 | ₹1,21,100.00 |
5 × ₹34.17
₹170.85
excl. GST
₹201.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CT1642-TD
₹170.85 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Output Current
- 20mA
- Voltage - Input(DC)
- 3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.757 g
Overview
CT1642 is a dedicated LED display driver control circuit with integrated digital interface, data latch, and LED driver. Available in SOP/DIP16 package.
Key features
- Special process technology
- VDD: 3.3V low power
- Low standby quiescent current after power-on, max 1uA
- User-selectable LED type (cathode × 4, anode × 8)
- Serial interface (CLK, DATA)
- Built-in power-on reset circuit
- Package: DIP/SOP16
