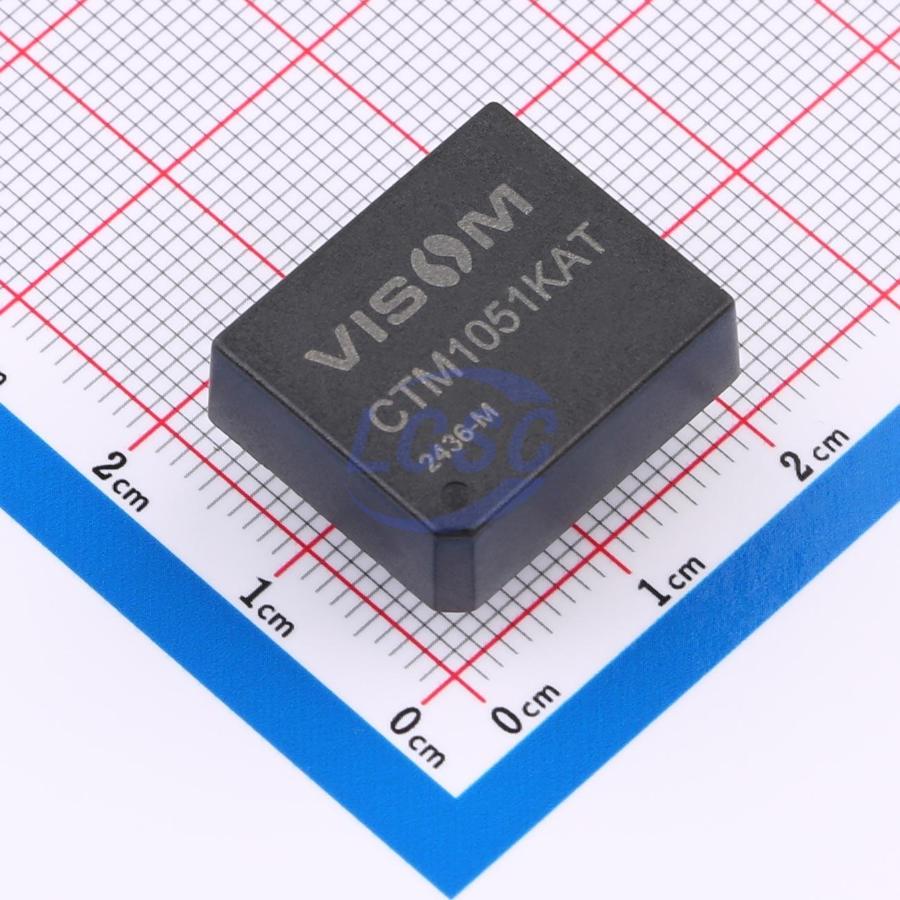

VISOM
CTM1051KAT
CAN Interface Dominant timeout Isolated 1Mbps DIP-7 Modules
DIP-7RoHSActive
High-speed CAN Isolated Transceiver
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,551 in stock
#C882111
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹625.41 | ₹625.41 |
| 10+ | ₹532.84 | ₹5,328.40 |
| 30+ | ₹477.75 | ₹14,332.50 |
| 90+ | ₹422.04 | ₹37,983.60 |
| 600+ | ₹396.28 | ₹2,37,768.00 |
| 900+ | ₹384.75 | ₹3,46,275.00 |
1 × ₹625.41
₹625.41
excl. GST
₹737.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
CTM1051KAT
₹625.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3.3V
- Output Port
- CAN Interface
- Features
- Dominant timeout
- Isolation
- Isolated
- Data Rate
- 1Mbps
- Quiescent Current
- 30mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.9 g
Overview
The CTM1051KAT/CTM1051KT high-speed CAN isolated transceiver module series is a CAN bus transceiver module integrating an isolated power supply, signal isolation chip, and CAN transceiver chip into a single unit. The primary function of the product is to convert logic-level signals to CAN bus differential-level signals for signal isolation. The product features a built-in regulated isolated power supply, providing up to 3500VDC electrical isolation along with high ESD protection. The product can be easily embedded into user equipment, enabling seamless CAN bus network connectivity.
Applications
- Automotive Electronics
- Instrumentation
- Railway Transportation
- Petrochemical
- Power Monitoring
- Industrial Control
- Smart Home
Key features
- Compliant with ISO 11898-2 standard
- Unpowered nodes do not affect the bus
- Supports a minimum of 110 nodes per network
- Housing and potting compound compliant with UL94-V0 standard
- Ultra-low EMI emission and high EMI immunity
- Excellent performance across temperature extremes, meeting industrial-grade requirements
