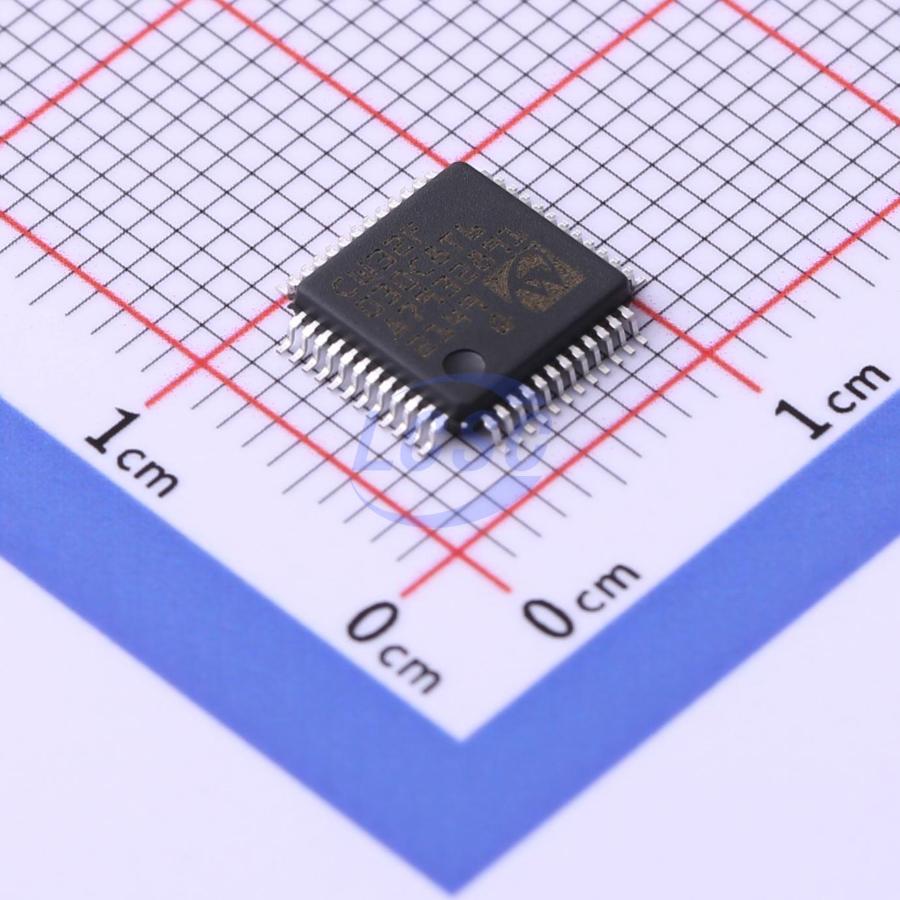

CW32F030C8T6

ARM Cortex-M0 32 Bit 64MHz LQFP-48(7x7) Microcontrollers

LQFP-48(7x7)RoHSActive

ARM Cortex-M0+ 32-bit microcontroller with integrated FLASH and SRAM

Manufacturer: CW
Manufacturer part #: CW32F030C8T6
Store part #: C3019113
Package / case: LQFP-48(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,410 in stock

#C3019113

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹147.22	₹147.22
10+	₹119.90	₹1,199.00
30+	₹104.94	₹3,148.20
250+	₹87.82	₹21,955.00
500+	₹80.44	₹40,220.00
1,000+	₹76.97	₹76,970.00

Quantity (min 1)

1 × ₹147.22

₹147.22

excl. GST

₹173.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

CW32F030C8T6

₹147.22 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 39
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 1.65V~5.5V
Program Storage Size: 64KB
CPU Core: ARM Cortex-M0
Core Size: 32 Bit
CPU Maximum Speed: 64MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.54 g

Overview

CW32F030x6/x8 is a single-chip microcontroller based on eFlash, integrating an ARM Cortex-M0+ core with a main frequency of up to 64MHz, high-speed embedded memory (up to 64K bytes of FLASH and up to 8K bytes of SRAM), and a series of comprehensive enhanced peripherals and I/O ports. All models provide a full set of communication interfaces (three UARTs, two SPIs, and two I2Cs), a 12-bit high-speed ADC, seven groups of general and basic timers, and a set of advanced control PWM timers. CW32F030x6/x8 can operate in a temperature range of -40℃ to 105℃, with a wide supply voltage range of 1.65V to 5.5V. It supports two low-power operation modes: Sleep and DeepSleep.

Key features

Maximum 64K bytes of FLASH, data retention for 25 years @85℃
Maximum 8K bytes of RAM, supporting parity check
128 bytes of OTP memory
CRC hardware calculation unit
Low-power modes (Sleep, DeepSleep)
Power-on and power-off reset (POR/BOR)
Programmable low-voltage detector (LVD)
4 - 32MHz crystal oscillator
32kHz low-speed crystal oscillator
Built-in 48MHz RC oscillator
Built-in 32kHz RC oscillator
Built-in 10kHz RC oscillator
Built-in 150kHz RC oscillator
Built-in PLL phase-locked loop
Clock monitoring system
Allows independent shutdown of each peripheral clock
Supports up to 39 channels of I/O interfaces
All I/O ports support interrupt functions
All I/O support interrupt input filtering function
Five-channel DMA controller
12-bit precision, ±1LSB
Up to 1M SPS conversion speed
Built-in voltage reference
Analog watchdog function
Built-in temperature sensor
Dual-channel voltage comparator
Real-time clock and calendar
Supports wake-up from Sleep/DeepSleep mode
16-bit advanced control timer, supporting 6 channels of capture/compare and 3 pairs of complementary PWM outputs, dead-time and flexible synchronization functions
Four groups of 16-bit general-purpose timers
Three groups of 16-bit basic timers
Window watchdog timer
Independent watchdog timer
Three low-power UARTs, supporting fractional baud rates
Two SPI interfaces, 12Mbit/s
Two I2C interfaces, 1Mbit/s
IR modulator
Serial debug interface (SWD)
80-bit unique ID
