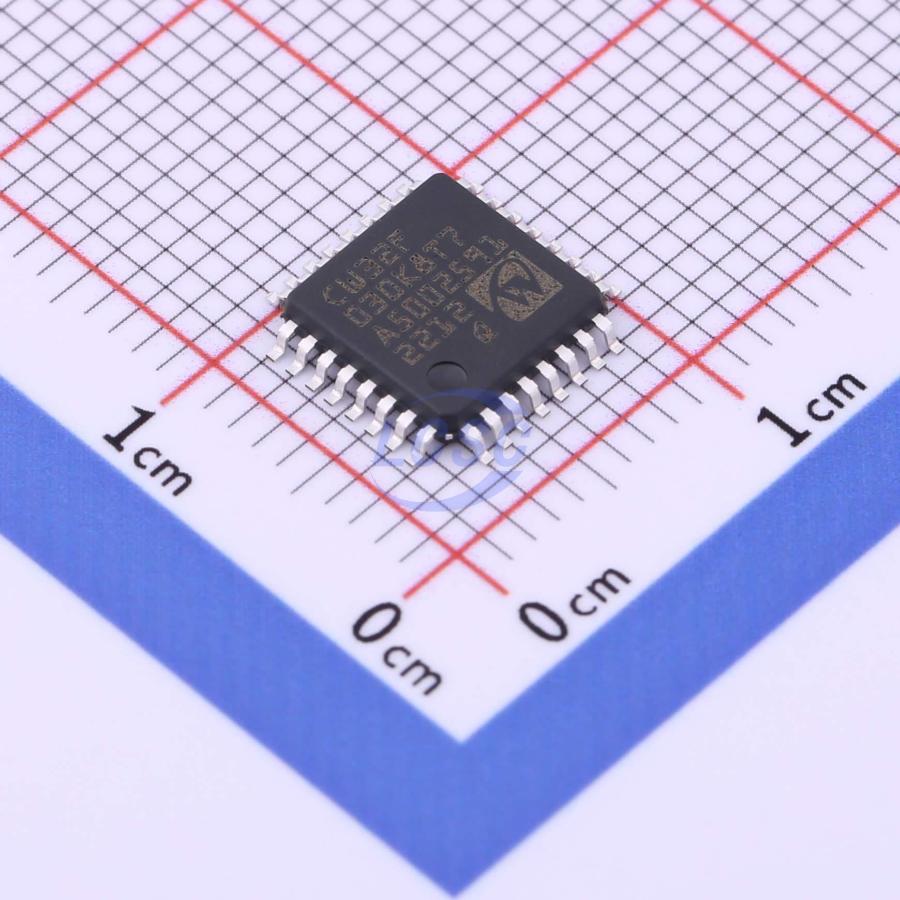

CW32F030K8T7

CW32F030x6/x8 is an eFlash-based single-chip microcontroller integrating an ARM Cortex-M0+ core running at up to 64MHz, high-speed embedded memory (up to 64KB Flash and up to 8KB SRAM), and a comprehensive set of enhanced peripherals and I/O ports. All variants provide a full suite of communication interfaces (3× UART, 2× SPI, and 2× I2C), a 12-bit high-speed ADC, seven general-purpose and basic timers, and one advanced-control PWM timer. Operating temperature range: -40°C to 105°C; supply voltage range: 1.65V to 5.5V. Two low-power modes are supported: Sleep and DeepSleep. Available in five package options: TSSOP20, LQFP32, QFN32, LQFP48, and QFN20.

Key features

• Up to 64KB FLASH, 25-year data retention @ 85°C
• Up to 8KB RAM with parity support
• 128-byte OTP memory
• CRC hardware calculation unit
• Low-power modes (Sleep, DeepSleep)
• Power-on and brown-out reset (POR/BOR)
• Programmable low voltage detector (LVD)
• 4~32MHz crystal oscillator
• 32kHz low-speed crystal oscillator
• Built-in 48MHz RC oscillator
• Built-in 32kHz RC oscillator
• Built-in 10kHz RC oscillator
• Built-in 150kHz RC oscillator
• Built-in PLL
• Clock monitoring system
• Independent peripheral clock gating
• Up to 39 I/O interfaces
• Interrupt support on all I/Os
• Interrupt input filtering on all I/Os
• 5-channel DMA controller
• 12-bit resolution, ±1LSB
• Up to 1M SPS conversion rate
• Built-in voltage reference
• Analog watchdog
• Built-in temperature sensor
• Dual voltage comparators
• RTC with calendar, wakeable from Sleep/DeepSleep modes
• 16-bit advanced control timer with 6 capture/compare channels, 3 complementary PWM output pairs, dead-time control, and flexible synchronization
• Four 16-bit general-purpose timers
• Three 16-bit basic timers
• Window watchdog timer
• Independent watchdog timer
• Three low-power UARTs with fractional baud rate support
• Two SPI interfaces at 12Mbit/s
• Two I2C interfaces at 1Mbit/s
• IR modulator
• Serial debug interface (SWD)
• 80-bit unique ID
