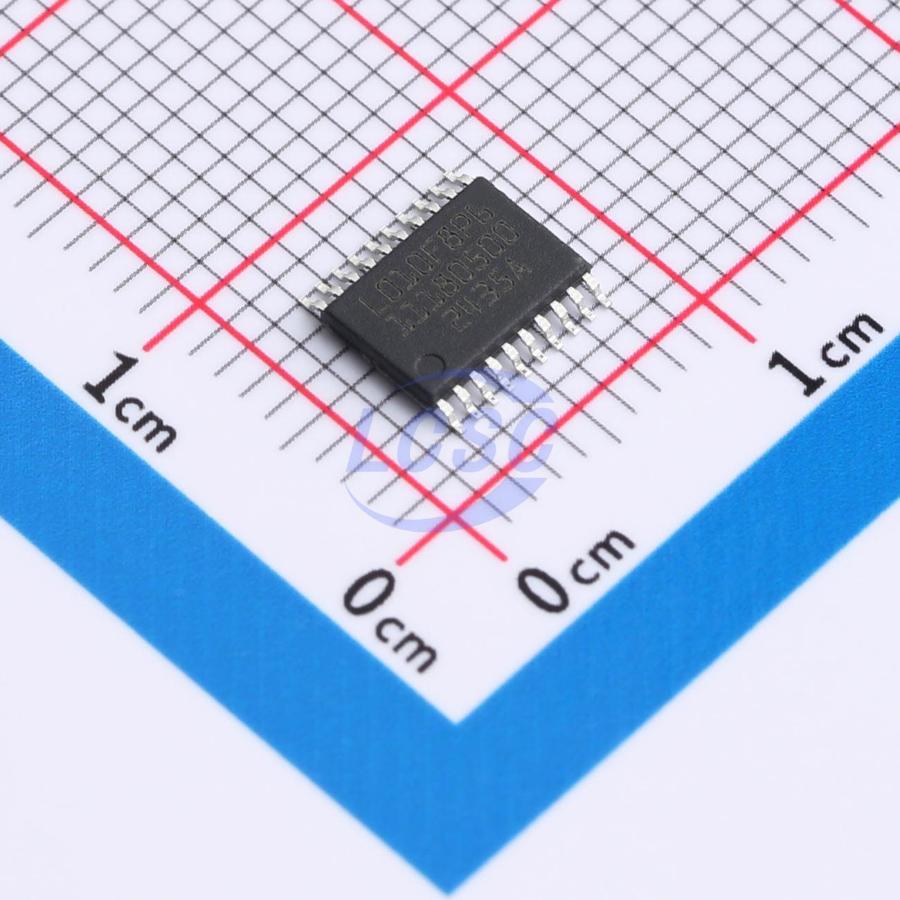

CW32L010F8P6

CW32L010 is an eFlash-based single-chip low-power microcontroller integrating an ARM® Cortex-M0+ core running up to 48MHz, high-speed embedded memory (up to 64KB FLASH and up to 4KB SRAM), and a comprehensive set of enhanced peripherals and I/O ports. All models provide a full suite of communication interfaces (2× UART, 1× SPI, and 1× I2C), a 12-bit high-speed ADC, four general-purpose and basic timers, one low-power timer, and one advanced-control PWM timer. The CW32L010 operates over a temperature range of -40°C to 85°C with a wide supply voltage of 1.62V~5.5V, and supports two low-power operating modes: Sleep and DeepSleep.

Key features

• Core: ARM® Cortex-M0+, up to 48MHz, operating temperature: -40°C to 85°C; operating voltage: 1.62V to 5.5V
• Memory:
• Up to 64KB FLASH, 25-year data retention at -40°C to +85°C, with erase protection, read protection, and secure library protection
• Up to 4KB RAM with hardware parity check
• 22-byte OTP memory
• CRC hardware calculation unit
• Reset and power management:
• Low-power modes (Sleep, DeepSleep)
• Power-on and brownout reset (POR/BOR)
• Programmable low voltage detector (LVD)
• Clock management:
• 4~32MHz crystal oscillator
• 32kHz low-speed crystal oscillator
• Built-in 48MHz RC oscillator
• Built-in 32kHz RC oscillator
• Clock monitoring system
• Independent peripheral clock gating
• All I/O pins support filtered interrupt
• All I/O pins support filtered wake-up
• All I/O pins support hysteresis and pull-up input
• All I/O pins support push-pull and open-drain output
• 12-bit ADC:
• Up to 2MSPS conversion rate, individually configurable sampling time per sequence channel
• 8 conversion result registers
• Built-in 1.2V voltage reference
• Analog watchdog
• Built-in temperature sensor
• Dual voltage comparators
• RTC and calendar, supports wake-up from Sleep/DeepSleep mode
• Timers:
• 16-bit advanced control timer: 6-channel input capture, 6 pairs of complementary PWM output with dead-time, dual-point comparison, PWM phase shift
• One 16-bit general-purpose timer
• Three 16-bit basic timers
• One 16-bit low-power timer
• Independent watchdog timer
• Communication interfaces:
• Two low-power UARTs with fractional baud rate, low-power data reception, configurable level shifting; one supports LIN interface
• One SPI interface at 24Mbit/s, supporting 4~16-bit data width
• One I2C interface at 1Mbit/s with configurable level shifting and SMBUS support
• IR modulator with programmable duty cycle and polarity
• Serial Wire Debug (SWD)
• 80-bit unique ID
