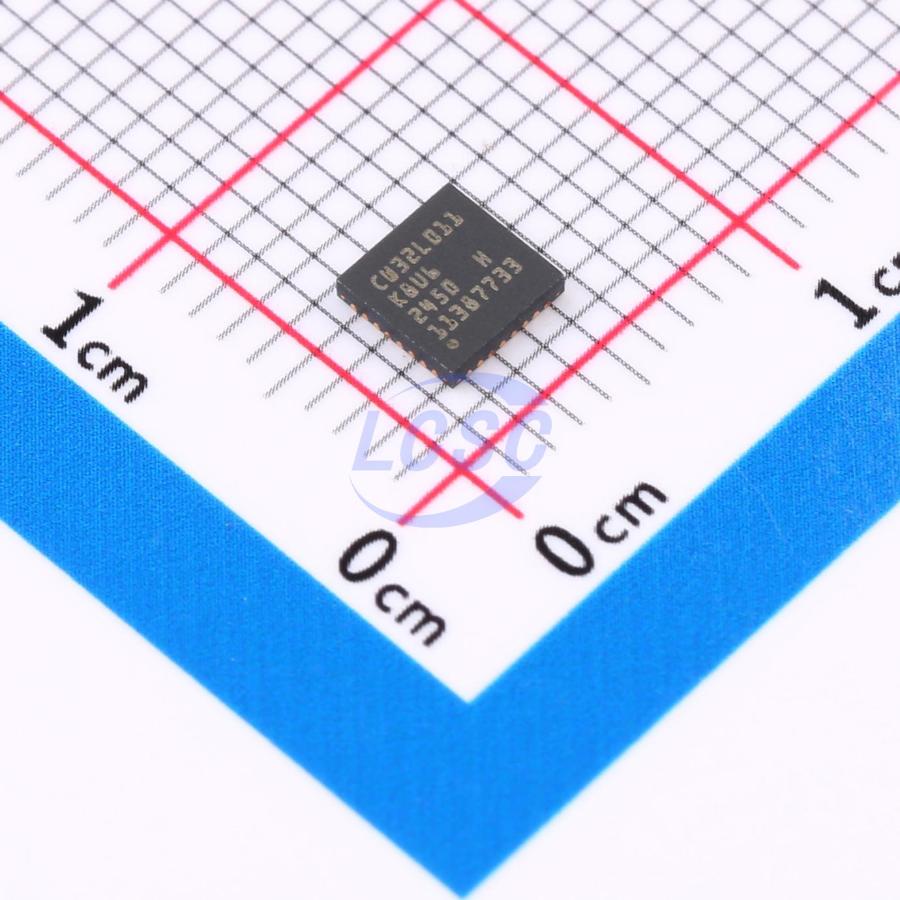

CW32L011K8U6

CW32L011 is an eFlash-based single-chip low-power microcontroller integrating an ARM Cortex-M0+ core with a maximum clock frequency of 96MHz, high-speed embedded memory (up to 64KB FLASH and up to 6KB SRAM), and a comprehensive set of enhanced peripherals and I/O ports. All models offer a full suite of communication interfaces (3× UART, 1× SPI, and 1× I2C), a 12-bit high-speed ADC, 5 general-purpose and basic timers, 1 low-power timer, and 1 advanced control PWM timer. The CW32L011 operates over a temperature range of -40℃ to +85℃ with a supply voltage range of 1.7V to 5.5V, supporting two low-power operating modes: Sleep and DeepSleep.

Key features

• Core: ARM Cortex-M0+
• Max frequency: 96MHz
• Operating temperature: -40℃ ~ +85℃; Operating voltage: 1.7V ~ 5.5V
• Memory: Up to 64KB FLASH, 25-year data retention (-40℃ ~ +85℃), with write protection, read protection, and secure library protection; Up to 6KB SRAM with hardware parity; 22-byte OTP memory
• CRC hardware calculation unit
• Reset and power management: Low-power modes (Sleep, DeepSleep); POR and PDR; Programmable LVD
• Clock management: 4~32MHz crystal oscillator; 32kHz low-speed crystal oscillator; Built-in 96MHz RC oscillator; Built-in 32kHz RC oscillator; Clock security system; Independent peripheral clock gating
• Up to 26 I/O ports: All I/Os support filtered interrupt; All I/Os support filtered wakeup; All I/Os support hysteresis and pull-up input; All I/Os support push-pull and open-drain output
• 12-bit ADC: Up to 1MSPS conversion rate, individually configurable sampling time per channel; 8 conversion result registers; Built-in 1.2V voltage reference; Analog watchdog; Built-in temperature sensor
• Dual voltage comparators
• RTC and calendar: Wakeup from Sleep/DeepSleep mode
• Timers: 16-bit advanced control timer with 6 input captures, 6 pairs of complementary PWM outputs with dead-time, dual-point comparison, and PWM phase shift; 2× 16-bit general-purpose timers; 3× 16-bit basic timers; 1× 16-bit low-power timer; Independent watchdog timer
• Communication interfaces: 3× low-power UART with fractional baud rate, low-power data reception, configurable level shifting, one supporting LIN; 1× SPI at 24Mbit/s, 4~16-bit data width; 1× I2C at 1Mbit/s with configurable level shifting and SMBus support; Infrared modulator with programmable duty cycle and polarity
• Serial debug interface; 80-bit UID
