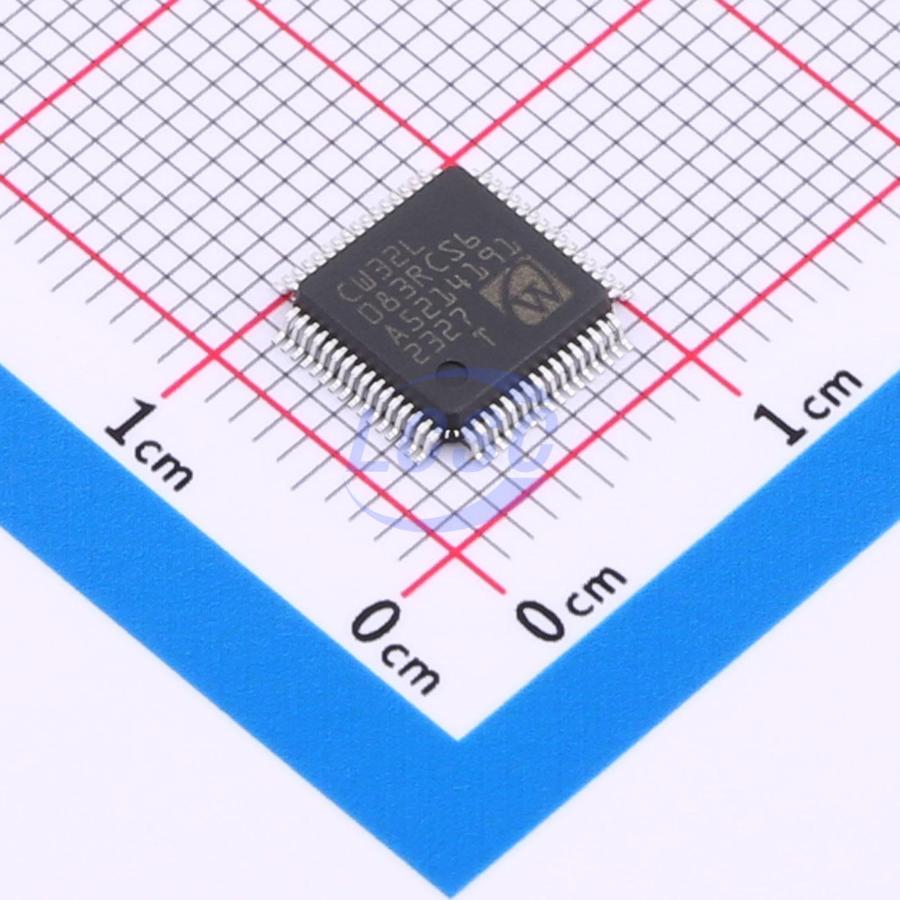

CW32L083RCS6

CW32L083 is a single-chip low-power microcontroller based on eFlash, integrating an ARM® Cortex®-M0+ core with a main frequency of up to 64MHz, high-speed embedded memory (up to 256K bytes of FLASH and up to 24K bytes of SRAM), and a series of comprehensive enhanced peripherals and I/O ports. All models provide a full set of communication interfaces (six UARTs, two SPIs, and two I2Cs), a 12-bit high-speed ADC, seven groups of general and basic timers, a group of low-power timers, and a group of advanced control PWM timers. CW32L083 can operate in a temperature range of -40℃ to 85℃ and has a wide supply voltage range of 1.65V to 5.5V. It supports two low-power operating modes: Sleep and DeepSleep. CW32L083 offers four different package forms: LQFP100, LQFP80, LQFP64 (10mm x 10mm), and LQFP64 (7mm x 7mm). The functions that can be achieved by products in different packages vary.

Key features

• Maximum 256K bytes of FLASH with 25-year data retention at 85℃
• Maximum 24K bytes of RAM with parity check
• 128 bytes of OTP memory
• CRC hardware calculation unit
• Low-power modes (Sleep, DeepSleep)
• Power-on and power-off reset (POR/BOR)
• Programmable low-voltage detector (LVD)
• 4 - 32MHz crystal oscillator
• 32kHz low-speed crystal oscillator
• Built-in 48MHz RC oscillator
• Built-in 32kHz RC oscillator
• Built-in 10kHz RC oscillator
• Built-in 150kHz RC oscillator
• Built-in PLL phase-locked loop
• Clock monitoring system
• Allows independent shutdown of each peripheral clock
• Supports up to 87 I/O interfaces
• All I/O ports support interrupt function
• All I/O supports interrupt input filtering function
• Five-channel DMA controller
• 12-bit precision, ±1 LSB
• Up to 1M SPS conversion speed
• Built-in voltage reference
• Analog watchdog function
• Built-in temperature sensor
• Dual voltage comparators
• Real-time clock and calendar, supports wake-up from Sleep/DeepSleep mode
• 16-bit advanced control timer, supports 6-channel capture/compare channels and 3 pairs of complementary PWM outputs, dead-time and flexible synchronization functions
• Four groups of 16-bit general timers
• Three groups of 16-bit basic timers
• One group of 16-bit ultra-low-power timers
• 16-bit clock calibration timer
• Window watchdog timer
• Independent watchdog timer
• Six low-power UARTs, support fractional baud rate
• Two SPI interfaces at 12Mbit/s
• Two I2C interfaces at 1Mbit/s
• IR modulator
• 4x56, 6x54, or 8x52 LCD segment code liquid crystal driver
• TRNG true random number generator
• AES advanced encryption standard module
• Serial debug interface (SWD)
• 80-bit unique ID
