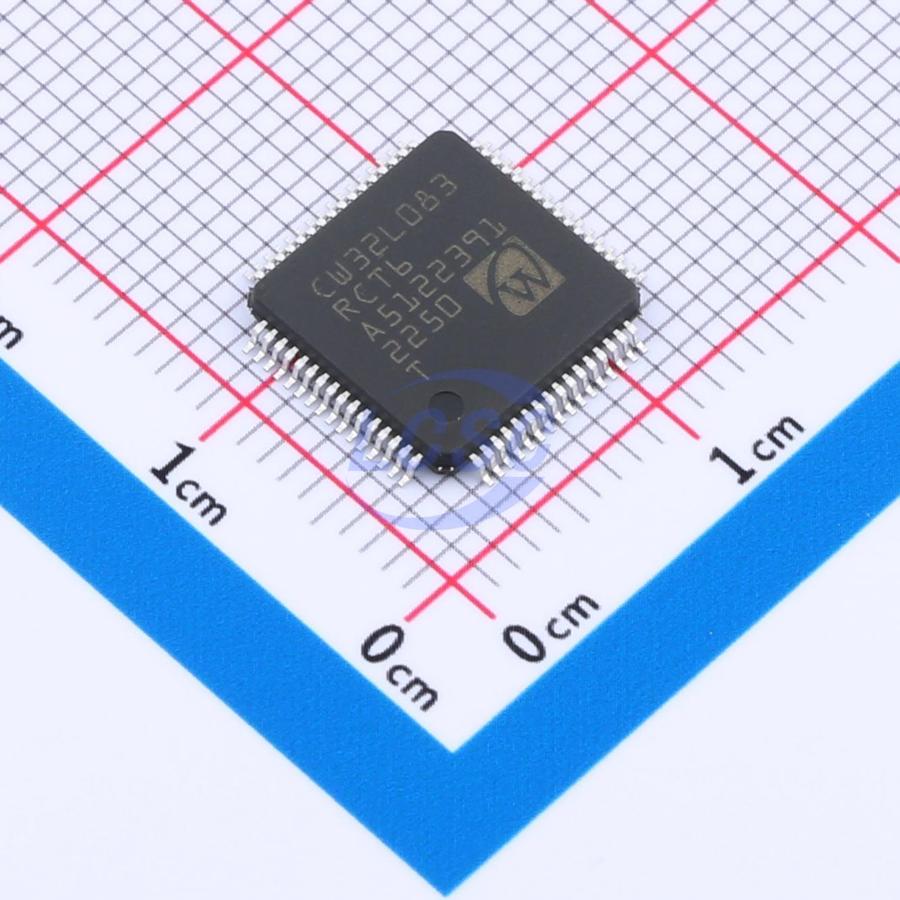

CW32L083RCT6
ARM Cortex-M0+ 32 Bit 64MHz LQFP-64(10x10) Microcontrollers
LQFP-64(10x10)RoHSActive
ARM Cortex-M0+ 32-bit low-power microcontroller
- Manufacturer
- CW
- Manufacturer part #
- CW32L083RCT6
- Store part #
- C5464735
- Package / case
- LQFP-64(10x10)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C5464735
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.98 | ₹162.98 |
| 10+ | ₹134.73 | ₹1,347.30 |
| 30+ | ₹119.31 | ₹3,579.30 |
| 160+ | ₹101.70 | ₹16,272.00 |
| 480+ | ₹94.09 | ₹45,163.20 |
| 960+ | ₹90.40 | ₹86,784.00 |
1 × ₹162.98
₹162.98
excl. GST
₹192.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 160 per tray
CW32L083RCT6
₹162.98 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 55
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.65V~5.5V
- Program Memory Type
- FLASH
- Program Storage Size
- 256KB
- CPU Core
- ARM Cortex-M0+
- Core Size
- 32 Bit
- CPU Maximum Speed
- 64MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 160 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.172 g
Overview
The CW32L083 is an eFlash-based single-chip low-power microcontroller integrating an ARM Cortex-M0+ core with a clock frequency up to 64MHz, high-speed embedded memory (up to 256KB Flash and up to 24KB SRAM), and a comprehensive set of enhanced peripherals and I/O ports. All models provide a full suite of communication interfaces (6× UART, 2× SPI, and 2× I2C), a 12-bit high-speed ADC, seven general-purpose and basic timers, one low-power timer, and one advanced-control PWM timer. The CW32L083 operates over a temperature range of -40°C to 85°C with a wide supply voltage of 1.65V~5.5V, supporting Sleep and DeepSleep low-power operating modes.
Key features
- Operating temperature: -40°C to 85°C; Operating voltage: 1.65V to 5.5V
- Up to 256KB FLASH, data retention 25 years @85°C
- Up to 24KB RAM with parity support
- 128-byte OTP memory
- CRC hardware calculation unit
- Low-power modes (Sleep, DeepSleep)
- Power-on and brownout reset (POR/BOR)
- Programmable LVD
- 4~32MHz crystal oscillator
- 32kHz low-speed crystal oscillator
- Built-in 48MHz RC oscillator
- Built-in 32kHz RC oscillator
- Built-in 10kHz RC oscillator
- Built-in 150kHz RC oscillator
- Built-in PLL
- Clock monitoring system
- Independent peripheral clock gating
- Up to 87 I/O ports
- All I/Os support interrupt functionality
- All I/Os support interrupt input filtering
- 5-channel DMA controller
- ADC: 12-bit resolution, ±1LSB; up to 1M SPS conversion rate; built-in voltage reference; analog watchdog; built-in temperature sensor
- Dual voltage comparators
- RTC and calendar with Sleep/DeepSleep wakeup support
- 16-bit advanced control timer with 6 capture/compare channels, 3 complementary PWM output pairs, dead-time control, and flexible synchronization
- Four 16-bit general-purpose timers
- Three 16-bit basic timers
- One 16-bit ultra-low-power timer
- 16-bit clock calibration timer
- Window watchdog timer
- Independent watchdog timer
- Six low-power UARTs with fractional baud rate support
- Two SPI interfaces at 12Mbit/s
- Two I2C interfaces at 1Mbit/s
- IR modulator 4×56, 6×54, or 8×52
- LCD segment driver
- TRNG
- AES module
- SWD interface
- 80-bit unique ID
