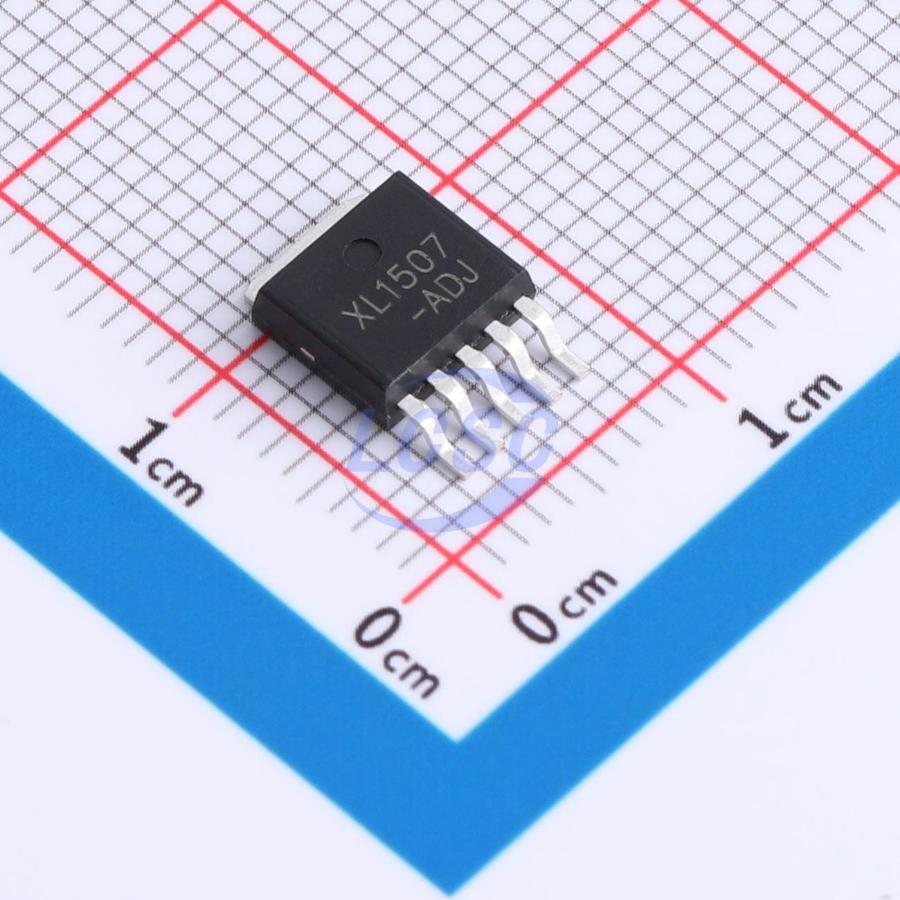

CXL1507-ADJ(TOKMAS)
Step-down type 127kHz~173kHz Adjustable 1.23V~37V 3A TO-252-5L Voltage Regulators - DC DC Switching Regulators
TO-252-5LRoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- CXL1507-ADJ(TOKMAS)
- Store part #
- C53133672
- Package / case
- TO-252-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C53133672
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.79 | ₹168.95 |
| 50+ | ₹26.61 | ₹1,330.50 |
| 150+ | ₹23.52 | ₹3,528.00 |
| 500+ | ₹19.69 | ₹9,845.00 |
| 2,500+ | ₹17.97 | ₹44,925.00 |
| 5,000+ | ₹16.95 | ₹84,750.00 |
5 × ₹33.79
₹168.95
excl. GST
₹199.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CXL1507-ADJ(TOKMAS)
₹168.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 127kHz~173kHz
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~37V
- Output Current
- 3A
- Quiescent Current
- 4.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.383 g
Overview
Applications
- Portable DVD players
- LCD monitors/TVs
- Battery chargers
- ADSL modems
- Telecom/networking equipment
Key features
- Wide 4.5V to 40V input voltage range
- Available in 3.3V, 5V, 12V and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- Maximum duty cycle 100%
- Minimum dropout voltage 1.0V
- Fixed 150KHz switching frequency
- 3A continuous output current capability
- Internally optimized power transistor
- High efficiency
- TTL shutdown capability
- Excellent line and load regulation
- Built-in thermal shutdown protection
- Built-in current limiting protection
- Built-in output short-circuit protection
- Available in TO252-5L package
