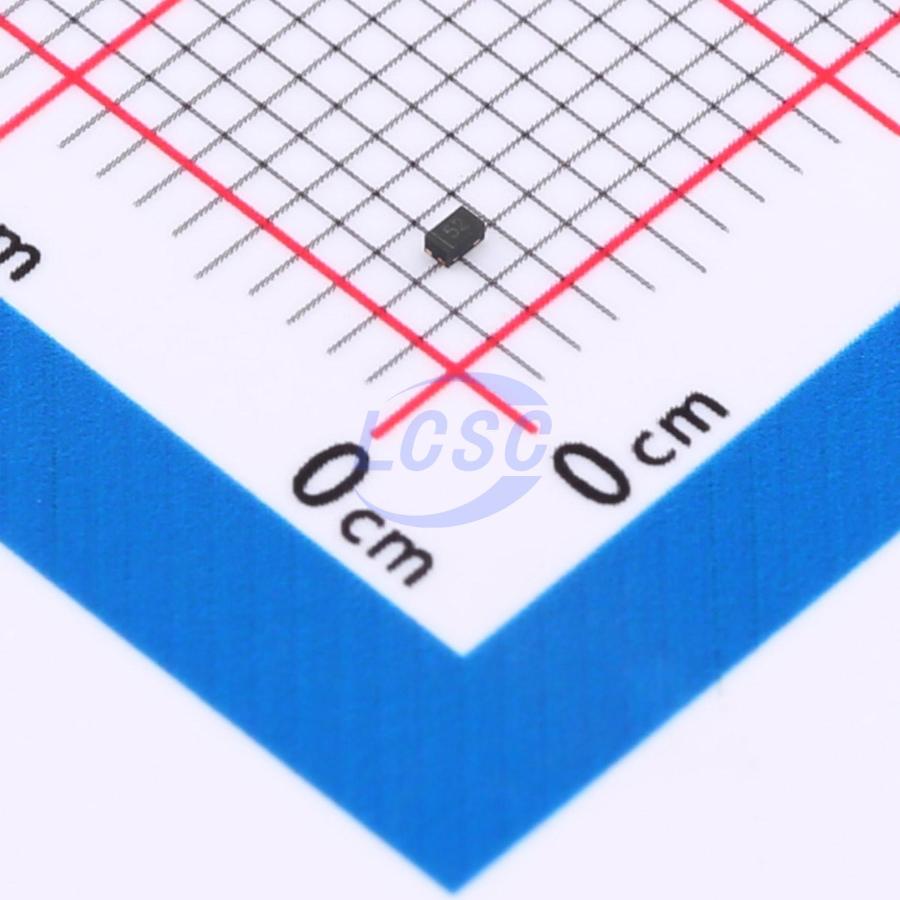

TECH PUBLIC

D5V0F2U3LP

15VC Clamp 4A@8/20us Ipp DFN1006-3

DFN1006-3RoHSActive

5VWM 15VC DFN1006-3

Manufacturer: TECH PUBLIC
Manufacturer part #: D5V0F2U3LP
Store part #: C28646333
Package / case: DFN1006-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

900 in stock

#C28646333

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.09	₹101.80
200+	₹3.97	₹794.00
600+	₹3.33	₹1,998.00
2,000+	₹2.96	₹5,920.00
10,000+	₹2.65	₹26,500.00
20,000+	₹2.47	₹49,400.00

Quantity (min 20, multiples of 20)

20 × ₹5.09

₹101.80

excl. GST

₹120.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

D5V0F2U3LP

₹101.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Number of Channels: 2
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.005 g

Overview

Applications

Cellular Handsets & Accessories
Digital Visual Interface (DVI)
Display Port
MDDI Ports
USB Ports
PCI Express
Serial ATA

Key features

Ultra small package: 1.0×0.6×0.5mm
Ultra low capacitance: 0.3pF typical (1/O-1/O)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
3-pin leadless package
Up to 2-line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
IEC61000-4-5 (Lightning) 4A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
