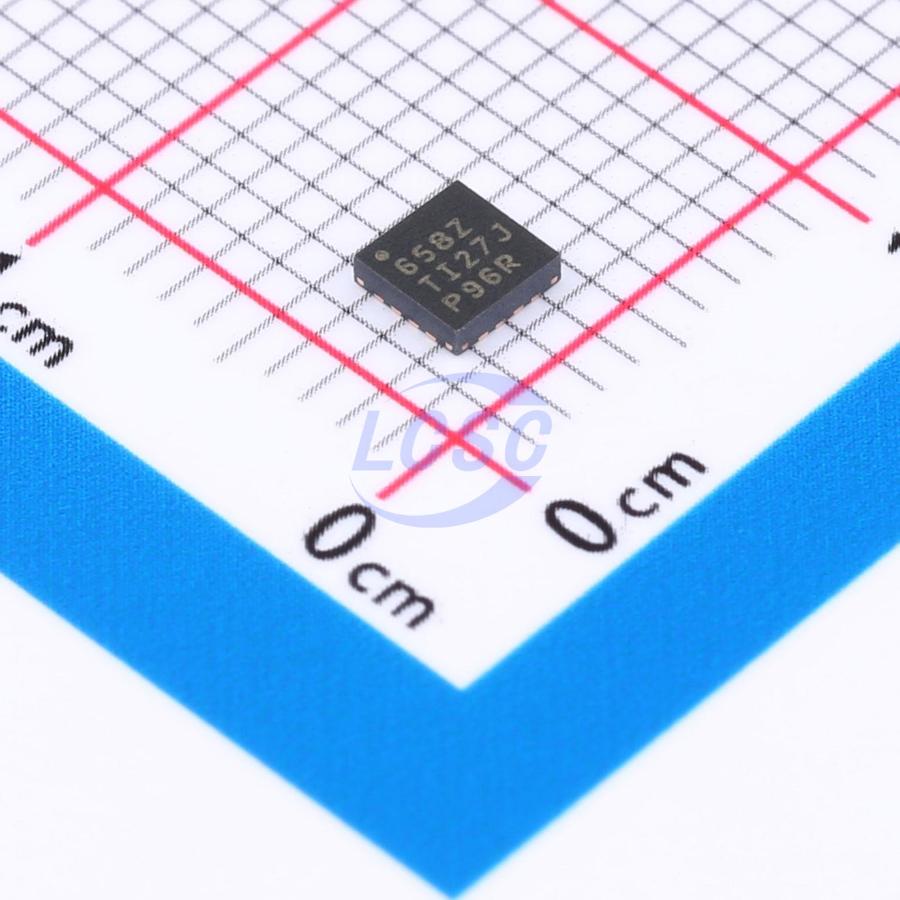

DAC60508ZRTER

The DACx0508 is a member of the low-power, eight-channel, buffered voltage-output digital-to-analog converter (DAC) pin-compatible family, offering 16/14/12-bit resolution. The DACx0508 includes a 2.5V (5ppm/°C) internal voltage reference, eliminating the need for an external precision reference in most applications. User-selectable gain configurations provide 1.25V (gain = 1/2), 2.5V (gain = 1), or 5V (gain = 2) full-scale output voltages. The device is powered by a single 2.7V to 5.5V supply, features monotonicity, and offers high linearity of ±1 LSB INL. The DACx0508 communicates via a serial interface that operates at clock rates up to 50MHz. The VIO pin allows the serial interface to operate from 1.7V to 5.5V. The DACx0508's flexible interface supports a wide range of industry-standard microprocessors and microcontrollers. The DACx0508 incorporates a power-on reset circuit to power up and hold the DAC outputs at zero or midscale until a valid code is written to the device. The device consumes as little as 0.6mA per channel (5.5V), making it suitable for battery-powered equipment. The per-channel power-down feature reduces the device's current consumption to 15μA. The DACx0508 is available in a small package and operates over the temperature range of -40°C to +125°C.

Applications

• Fiber optic networks
• Wireless infrastructure
• Industrial automation
• Data acquisition systems

Key features

• INL: ±1LSB, max TUE at 16-bit resolution: ±0.1% FSR
• Integrated 2.5V precision internal reference
• Initial accuracy: ±5mV (max)
• Low temperature drift: 2ppm/°C (typical), DAC80508
• High drive capability: 20mA, 0.5V supply rail
• Flexible output configuration
• User-selectable gain: 2, 1, or 1/2
• Reset to zero-scale or mid-scale
• Clear output function: DACx0508C
• Wide operating range:
• Supply voltage: 2.7V to 5.5V
• Temperature range: -40°C to 125°C
• 50MHz SPI-compatible serial interface
• 1.7V to 5.5V operation
• Daisy-chain operation
• CRC error checking
• Low power consumption: 0.6mA/channel (5.5V)
• Compact package: 3mm×3mm, 16-pin WQFN; 2.4mm×2.4mm, 16-pin DSBGA
