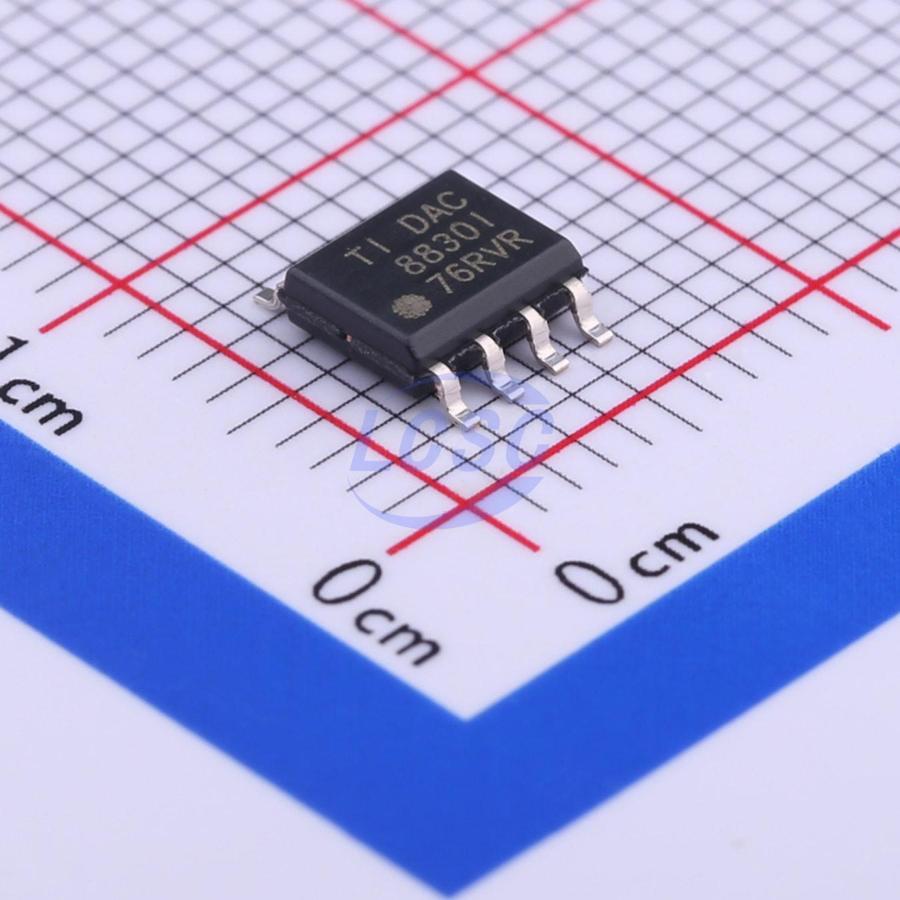

DAC8830IDR

The DAC8830 and DAC8831 are single, 16-bit, serial-input, voltage-output digital-to-analog converters (DACs) operating from a single 3V to 5V power supply. These converters provide excellent linearity (1 LSB INL), low glitch, low noise, and fast settling (1.0 μs to 1/2 LSB of full-scale output) over the specified temperature range of -40°C to +85°C. The output is unbuffered, which reduces the power consumption and the error introduced by the buffer. These parts feature a standard high-speed (clock up to 50 MHz), 3 V or 5 V SPI serial interface to communicate with a DSP or microprocessor. The DAC8830 output is 0V to V_REF. However, the DAC8831 provides bipolar output (±V_REF) when working with an external buffer. The DAC8830 and DAC8831 are both reset to zero code after power up. For optimum performance, a set of Kelvin connections to external reference and analog ground input are provided on the DAC8831. The DAC8830 is available in an SO-8 package, and the DAC8831 in an SO-14 package. Both have industry standard pinouts. The DAC8831 is also available in a QFN-14 package.

Applications

• Portable Equipment
• Automatic Test Equipment
• Industrial Process Control
• Data Acquisition Systems
• Optical Networking

Key features

• 16-Bit Resolution
• 2.7 V to 5.5 V Single-Supply Operation
• Very Low Power: 15 μW for 3 V Power
• High Accuracy, INL: 1 LSB
• Low Noise: 10 nV/√Hz
• Fast Settling: 1.0 μs
• Fast SPI Interface, up to 50 MHz
• Reset to Zero-Code
• Schmitt-Trigger Inputs for Direct Optocoupler Interface
• Industry-Standard Pin Configuration
