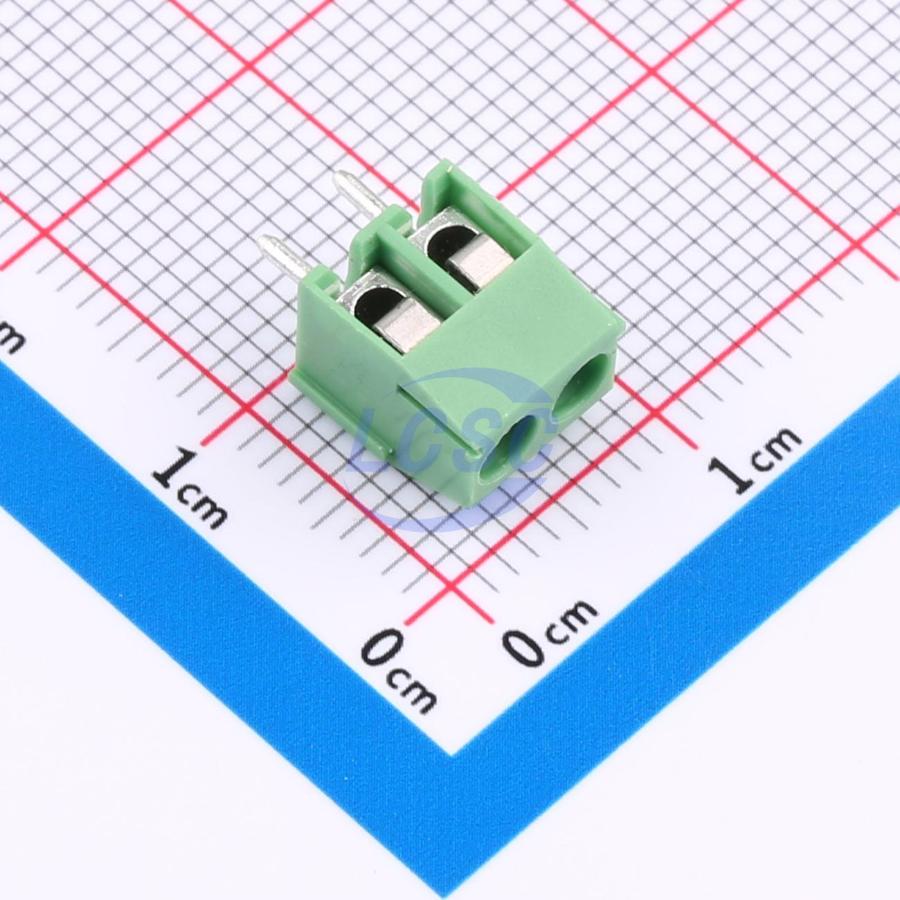

DB301V-3.5-2P-GN-S DORABO
DORABO

DB301V-3.5-2P-GN-S

2 Position Wire to Board Terminal Block Through Hole 3.5mm

PopularThrough Hole,P=3.5mmROHS CompliantActive

TERM BLK 2POS 3.5mm TH

Manufacturer
DORABO
Manufacturer part #
DB301V-3.5-2P-GN-S
Store part #
C695629
Package / case
Through Hole,P=3.5mm
Category
Wire to Board
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,79,945 in stock

#C695629

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹13.59₹67.95
50+₹11.23₹561.50
150+₹10.03₹1,504.50
1,000+₹8.12₹8,120.00
2,000+₹7.78₹15,560.00
5,000+₹7.54₹37,700.00

5 × ₹13.59

₹67.95

excl. GST

₹80.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 1,000 per bag

DB301V-3.5-2P-GN-S

₹67.95 for 5 + GST

Specifications

Wire Gauge - mm2
0.5~1
Number of Positions or Pins
1x2P
Number of Pins
2P
Screw Specification
M2
Pitch
3.5mm
Current Rating
7A
Operating Temperature
-40℃~+105℃
Voltage Rating (Max)
300V
Height Above Board
8.5mm
Color
Green
Wire Gauge - AWG
18~24
Mounting Type
Through Hole
Number of PINs Per Row
2
Number of Rows
1

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
1,000 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.811 g

Alternatives

Similar parts — check the datasheet before substituting.

DB125-3.5-2P-GN-S#C466970DORABO · Through Hole,P=3.5mm₹24.24 · 9,280 in stockView
DB127S-3.5-2P-GN-S#C2997509DORABO · Through Hole,P=3.5mm₹40.43 · 2,345 in stockView
