TECH PUBLICDatasheet (PDF)

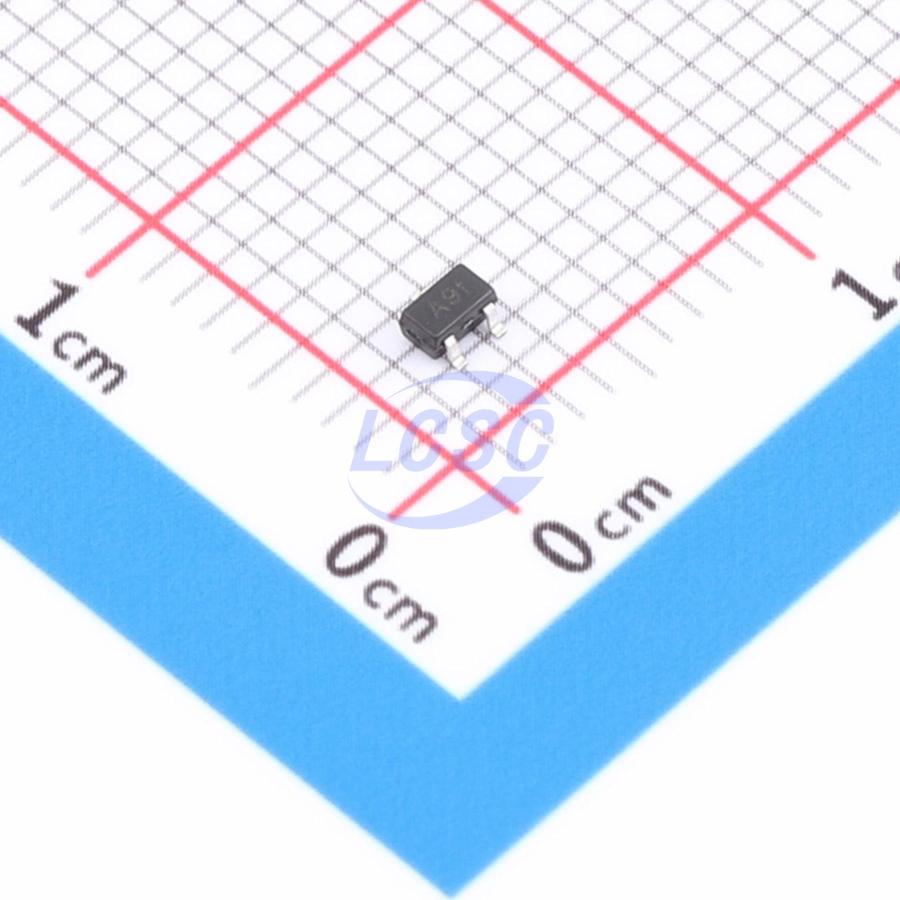

DESD1CAN2WQ-TP
40V 4A@8/20us 150W@8/20us 26V Bidirectional 24V SOT-323 TVS Diodes
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DESD1CAN2WQ-TP
- Store part #
- C54194945
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54194945
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.69 | ₹53.45 |
| 50+ | ₹8.40 | ₹420.00 |
| 150+ | ₹7.26 | ₹1,089.00 |
| 500+ | ₹6.42 | ₹3,210.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.38 | ₹32,280.00 |
5 × ₹10.69
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DESD1CAN2WQ-TP
₹53.45 for 5 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- CAN bus protection
- Automotive applications
Key features
- Ultra-low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (surge) 4A (8/20μs)
- RoHS compliant
- Package: SOT323
- Lead finish: matte tin
- UL flammability rating: 94V-0
- Packaging quantity: 3000 pcs/7-inch reel
