TECH PUBLIC

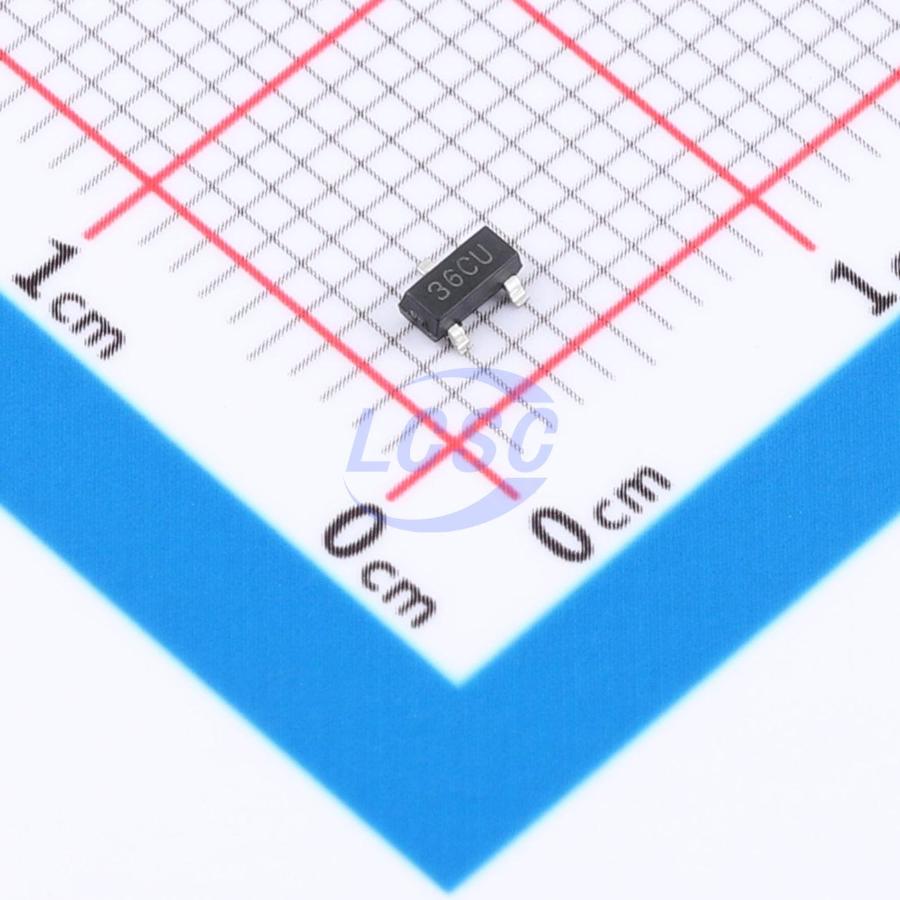

DESD34VS2SO(TP)

60V 6A@8/20us 350W@8/20us 36V Bidirectional 34V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: DESD34VS2SO(TP)
Store part #: C53340811
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C53340811

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹13.27	₹66.35
50+	₹10.48	₹524.00
150+	₹9.08	₹1,362.00
500+	₹8.03	₹4,015.00
3,000+	₹7.20	₹21,600.00
6,000+	₹6.77	₹40,620.00

Quantity (min 5, multiples of 5)

5 × ₹13.27

₹66.35

excl. GST

₹78.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

DESD34VS2SO(TP)

₹66.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 60V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 2
Voltage - Breakdown: 36V
type: ESD
Reverse Leakage Current (Ir): 4uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 34V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

Applications

Mobile phones & accessories
Laptops & handheld devices
Portable instruments
Set-top boxes
Industrial control

Key features

350W peak pulse power (8/20μs)
Protects one bidirectional line or two unidirectional lines
Ultra-low leakage: nanoamp level
Working voltage: 34V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning Surge) 6A (8/20μs)
RoHS compliant
Package: SOT-23
Lead finish: Matte tin
Molding compound: "Green" molding compound
UL flammability rating 94V-0
Moisture sensitivity: Level 3 per J-STD-020
Packaging quantity: 3000 pcs/7-inch tape reel
