DIODESDatasheet (PDF)

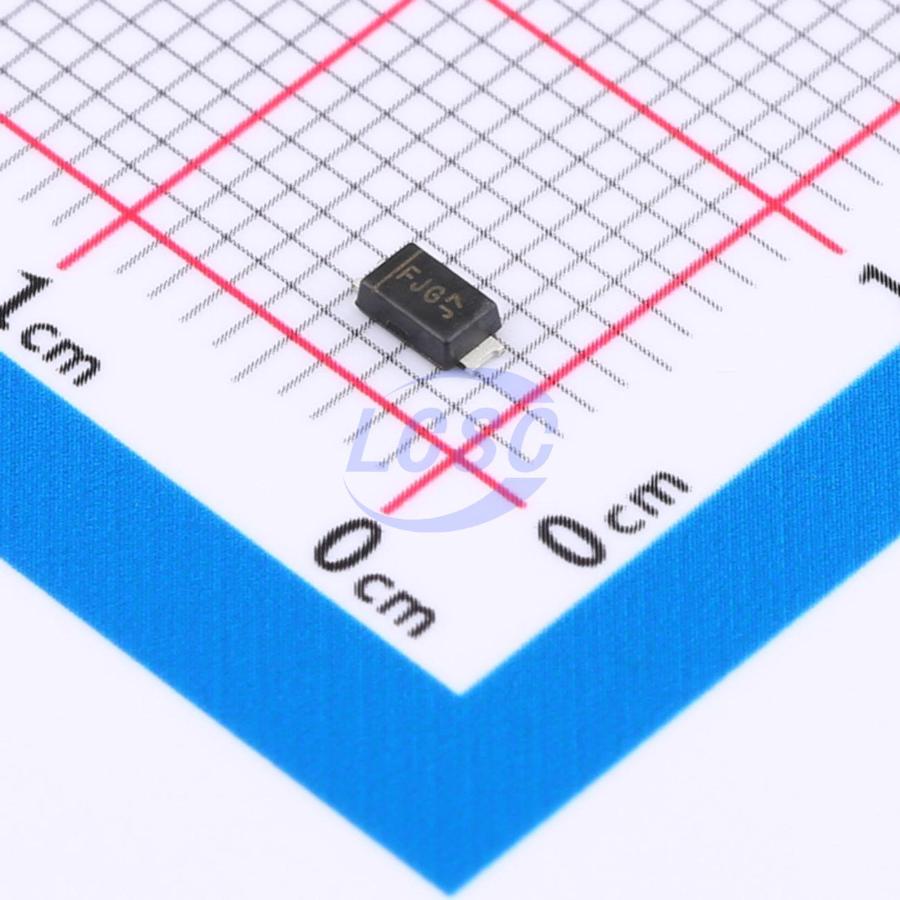

DFLZ20-7
Zener Diode 20V 1W Surface Mount PowerDI123
PowerDI123ROHS3 CompliantActive
DIODE ZENER 20V 1W PowerDI123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLZ20-7
- Store part #
- C177024
- Package / case
- PowerDI123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C177024
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.81 | ₹214.05 |
| 50+ | ₹34.07 | ₹1,703.50 |
| 150+ | ₹30.32 | ₹4,548.00 |
| 500+ | ₹25.64 | ₹12,820.00 |
| 3,000+ | ₹23.56 | ₹70,680.00 |
| 6,000+ | ₹22.32 | ₹1,33,920.00 |
5 × ₹42.81
₹214.05
excl. GST
₹252.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLZ20-7
₹214.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 1uA@15V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 18.8V~21.2V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Key features
- 1W Power Dissipation on FR-4 PCB
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
- An automotive-compliant part is available under separate datasheet (DFLZ5V1Q - DFLZ39Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PZ1AH20B-AU_R1_000A1#C5848443PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹22.77 · 0 in stock | View | |
| PZ1AH20B_R1_00001#C6365882PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹19.57 · 0 in stock | View | |
| PZ1AH19B_R1_00001#C5830515PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹19.57 · 0 in stock | View | |
| PZ1AH19B-AU_R1_000A1#C5848441PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹22.77 · 0 in stock | View | |
