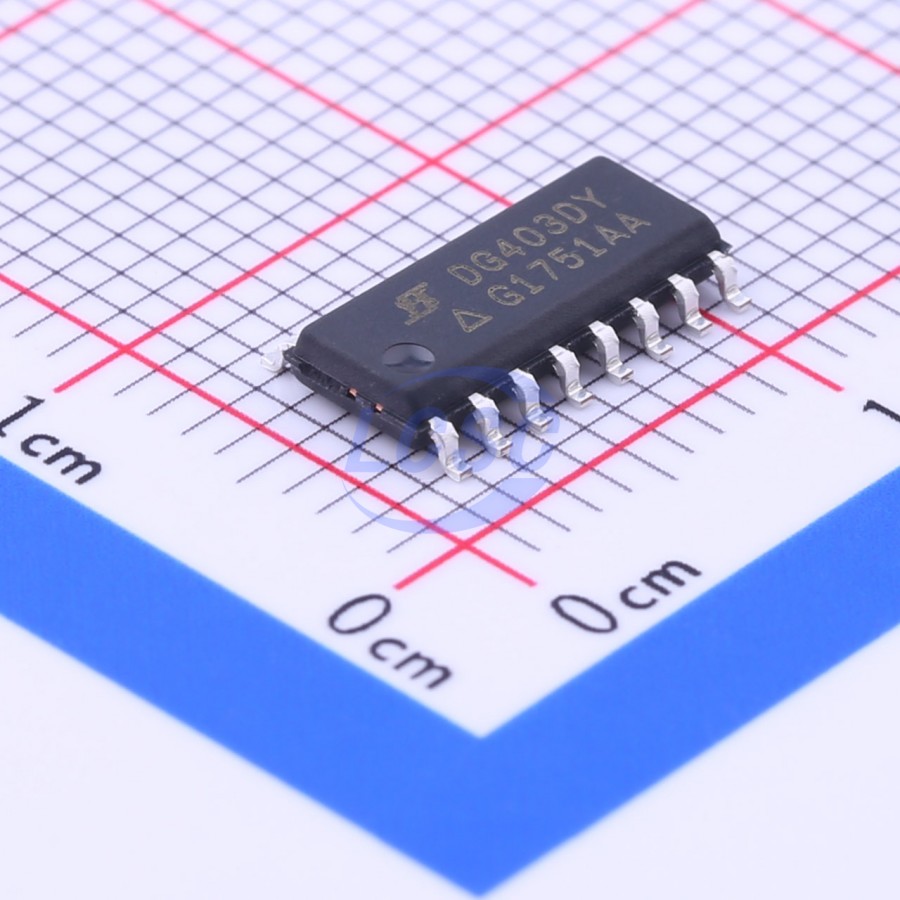

DG403DY-T1-E3 VISHAY
VISHAY

DG403DY-T1-E3

-15V~15V 2 55Ω SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS

SOIC-16ROHS3 CompliantActive

Low-Power, High-Speed CMoS Analog Switches

Manufacturer
VISHAY
Manufacturer part #
DG403DY-T1-E3
Store part #
C145284
Package / case
SOIC-16
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,944 in stock

#C145284

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹237.89₹237.89
10+₹200.77₹2,007.70
30+₹177.55₹5,326.50
100+₹153.67₹15,367.00
500+₹142.82₹71,410.00
1,000+₹138.27₹1,38,270.00

1 × ₹237.89

₹237.89

excl. GST

₹280.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,500 per reel

DG403DY-T1-E3

₹237.89 for 1 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+85℃
Voltage - Supply
-15V~15V
Number of Channels
2
Ron
55Ω
Con
39pF

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
2,500 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.421 g

Overview

Applications

  • Audio and video switching
  • Sample-and-hold circuits
  • Battery-operated equipment
  • Test equipment
  • Communication systems
  • PBX, PABX
  • Stereo source selector
  • Dual-slope integrator
  • Bandpass switched-capacitor filter
  • Peak detector

Key features

  • 44 V maximum supply voltage
  • ±15 V analog signal range
  • On-resistance - RDS(on): 30 Ω
  • Low leakage current - ID(on): 40 pA
  • Fast switching - tON: 75 ns
  • Ultra-low power consumption - PD: 0.35 μW
  • TTL, CMOS compatible
  • Single-supply operation capability
  • RoHS directive 2002/95/EC compliant

Alternatives

Similar parts — check the datasheet before substituting.

DG401DY-T1-E3#C727787VISHAY · SOIC-16₹154.87 · 20 in stockView
DG403DY-E3#C93683VISHAY · SOIC-16Price on requestQuote
DG405DY-T1-E3#C2673780VISHAY · SOIC-16Price on requestQuote
DG401DY-E3#C6183481VISHAY · SOIC-16Price on requestQuote
