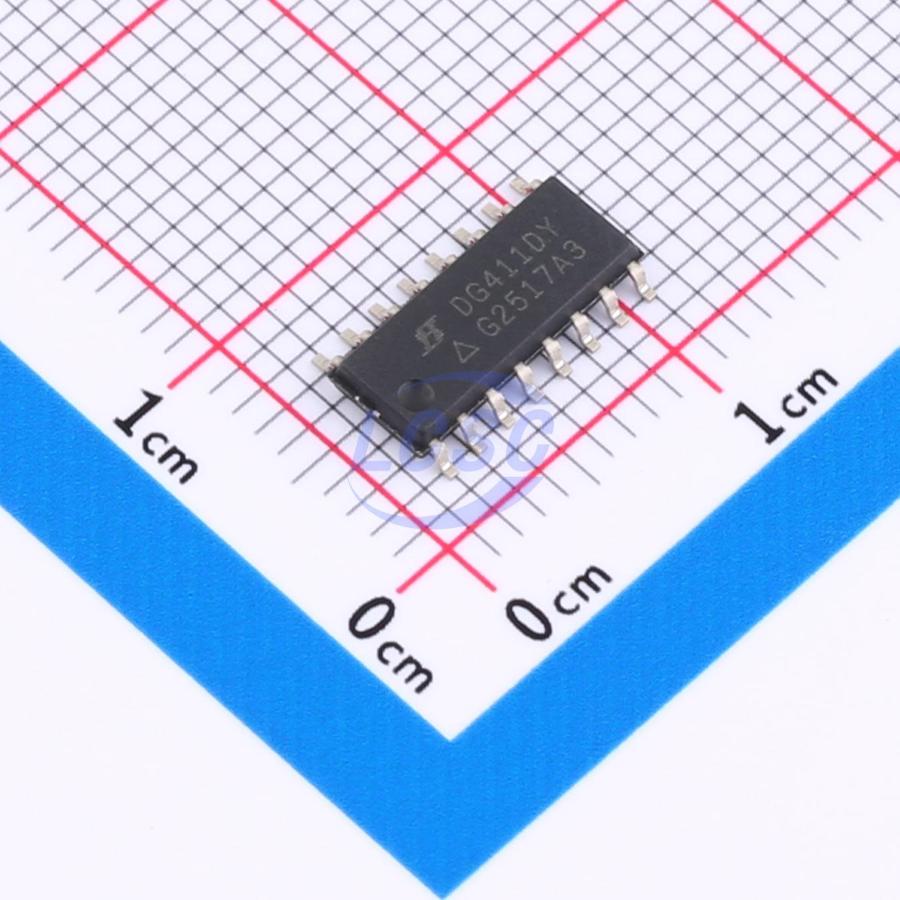

DG411DY-T1-E3

The DG411 series of monolithic quad analog switches was designed to provide high speed, low error switching of precision analog signals. Combining low power (0.35 μW) with high speed (tON: 110 ns), the DG411 family is ideally suited for portable and battery powered industrial applications. To achieve high-voltage ratings and superior switching performance, the DG411 series was built on Vishay Siliconix’s high voltage silicon gate process. An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks input voltages up to the supply levels when off. The DG411, DG412 respond to opposite control logic as shown in the Truth Table. The DG413 has two normally open and two normally closed switches.

Applications

• Precision automatic test equipment
• Precision data acquisition
• Communication systems
• Battery powered systems
• Computer peripherals

Key features

• Halogen-free according to IEC 61249-2-21 Definition
• 44 V supply max. rating
• ± 15 V analog signal range
• On-resistance - RDS(on): 25 Ω
• Fast switching - tON: 110 ns
• Ultra low power - PD: 0.35 μW
• TTL, CMOS compatible
• Single supply capability
• Compliant to RoHS Directive 2002/95/EC
