VBsemi ElecDatasheet (PDF)

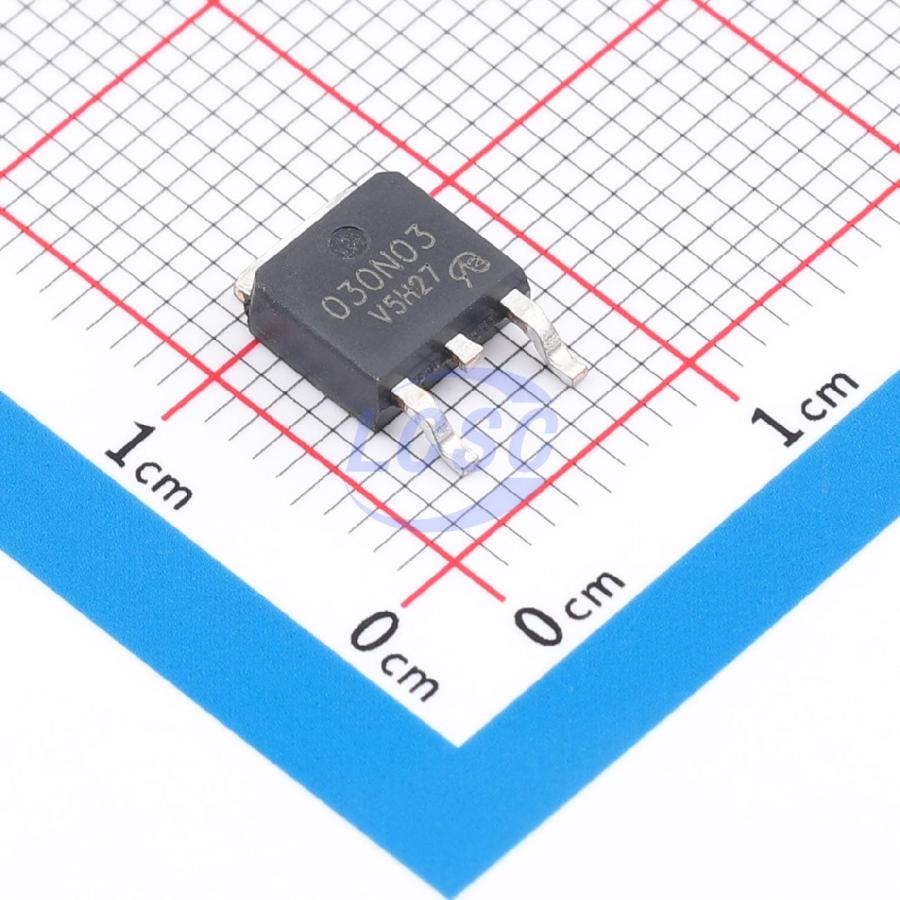

DI030N03D1-VB
100W 30V 70A 7mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DI030N03D1-VB
- Store part #
- C51822636
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C51822636
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.13 | ₹58.13 |
| 10+ | ₹46.81 | ₹468.10 |
| 30+ | ₹42.02 | ₹1,260.60 |
| 100+ | ₹35.92 | ₹3,592.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹58.13
₹58.13
excl. GST
₹68.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DI030N03D1-VB
₹58.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 525pF
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
Applications
- OR Gate-Server-DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD4813NHT4G-VB#C22388979VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹67.92 · 50 in stock | View |
 | IPD040N03L-VB#C7569013VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹50.84 · 1 in stock | View |
 | NTD20N03L27-VB#C878885VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹52.31 · 1 in stock | View |
 | P1402CDG-VB#C878892VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹54.63 · 3 in stock | View |
 | NTD40N03R-VB#C878897VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 130 | ₹55.88 · 130 in stock | View |
