DIOO

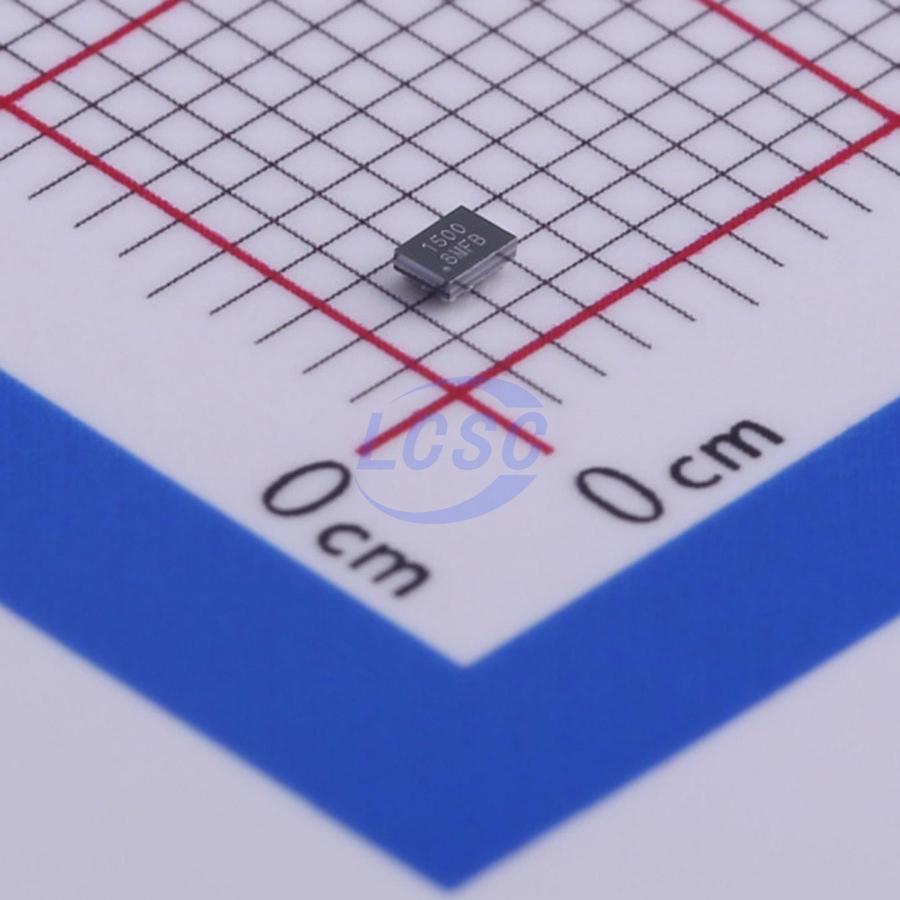

DIO1500WL12

1.6V~3V 500mΩ 4 CSP-12 Analog Switches, Multiplexers, Demultiplexers RoHS

CSP-12ROHS CompliantActive

Four-pole single-throw (4PST) Depletion Mode Isolation Switch

Manufacturer: DIOO
Manufacturer part #: DIO1500WL12
Store part #: C444364
Package / case: CSP-12
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,931 in stock

#C444364

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹72.51	₹72.51
10+	₹64.34	₹643.40
30+	₹60.25	₹1,807.50
100+	₹56.16	₹5,616.00
500+	₹53.79	₹26,895.00
1,000+	₹52.51	₹52,510.00

Quantity (min 1)

1 × ₹72.51

₹72.51

excl. GST

₹85.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO1500WL12

₹72.51 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.6V~3V
Ron: 500mΩ
Number of Channels: 4

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.012 g

Overview

The DIO1500 is a high-performance four-pole single- throw (4PST) analog switch with wide VCC range. The key feature of DIO1500 is the Depletion-Mode isolation technology. That allows the device to conduct signals when there is no VCC available and to isolate the signals when VCC is present. In additional, select pins allow the internal oscillator frequency to be adjusted between 500kHz and 750kHz in 75kHz steps when VCC is present. This feature can improve electromagnetic interference (EMI).

Applications

Cell phones
Smart Phones
Tablets
MP3
GPS
PMP

Key features

Support 4-pole single-throw
Depletion Mode MOSFETs
VCC(OFF): 1.6V to 3.0V
Ron: 0.5Ω Typical
RON-Flat: 0.01Ω Typical
Package: 12-Ball WLCSP, (with Back side Laminate), 3x4 Array, 0.4mm Pitch, 250μm Ball
