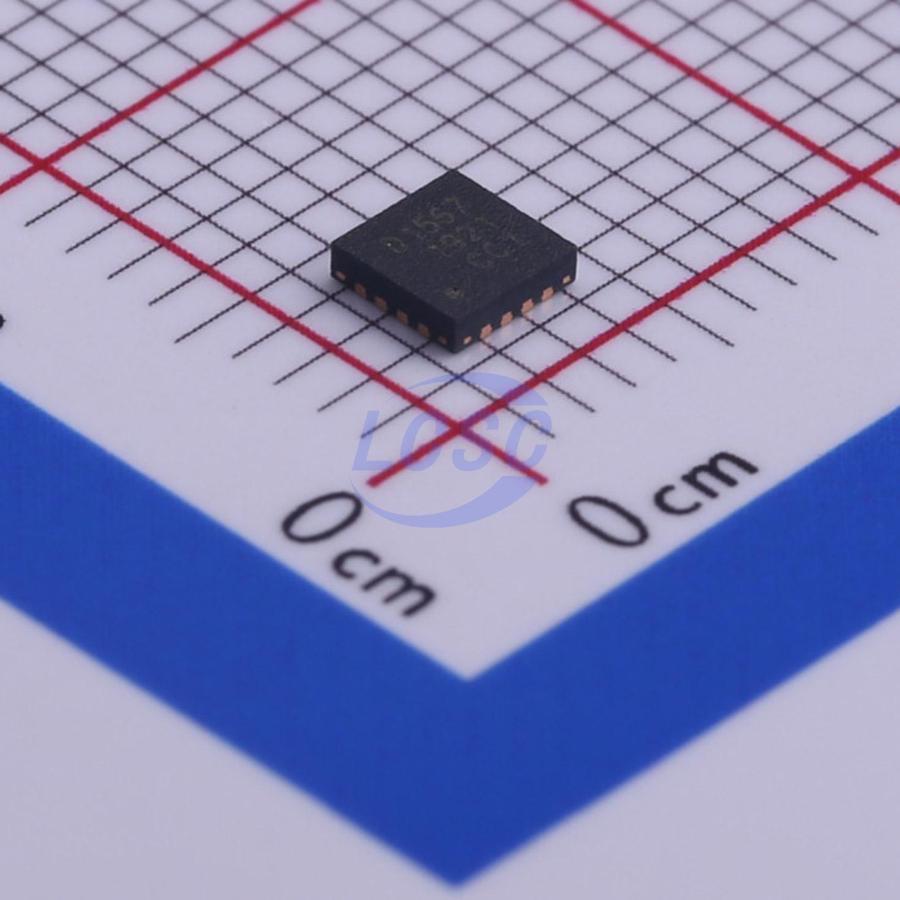

DIO1567CL16

The DIO1567 is a dual Double-Pole, Double-Throw (DPDT) analog switch targeted at dual SIM card multiplexing. DIO1567 operates from a single 1.65V to 5.225V supply and features an ultra-low on resistance of 0.5Ω at SIM path to ensure minimal voltage drop in other path. This device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation. DIO1567 features very low quiescent current even when the control voltage is lower than the VCC supply. This allows mobile handset applications direct interface with the baseband processor general-purpose I/Os. DIO1567 provides two packages with Green DQFN-16 and TQFN-16.

Applications

• Cell-Phone/PDA
• Set-Top Box
• Digital Camera
• Notebook
• TV/ LCD Monitor

Key features

• Switch Type: DPDT(2X)
• Voltage Operation: 1.65V to 5.225V
• Low On Resistance: 0.75Ω at SSIM path; 4.2Ω at other path
• Bandwidth >200MHz
• 10pF cₒₙ at DAT/CLK/RST path
• Low power consumption
• Packaged: 16-Lead DQFN and 16-Lead TQFN 8kV HBM ESD
