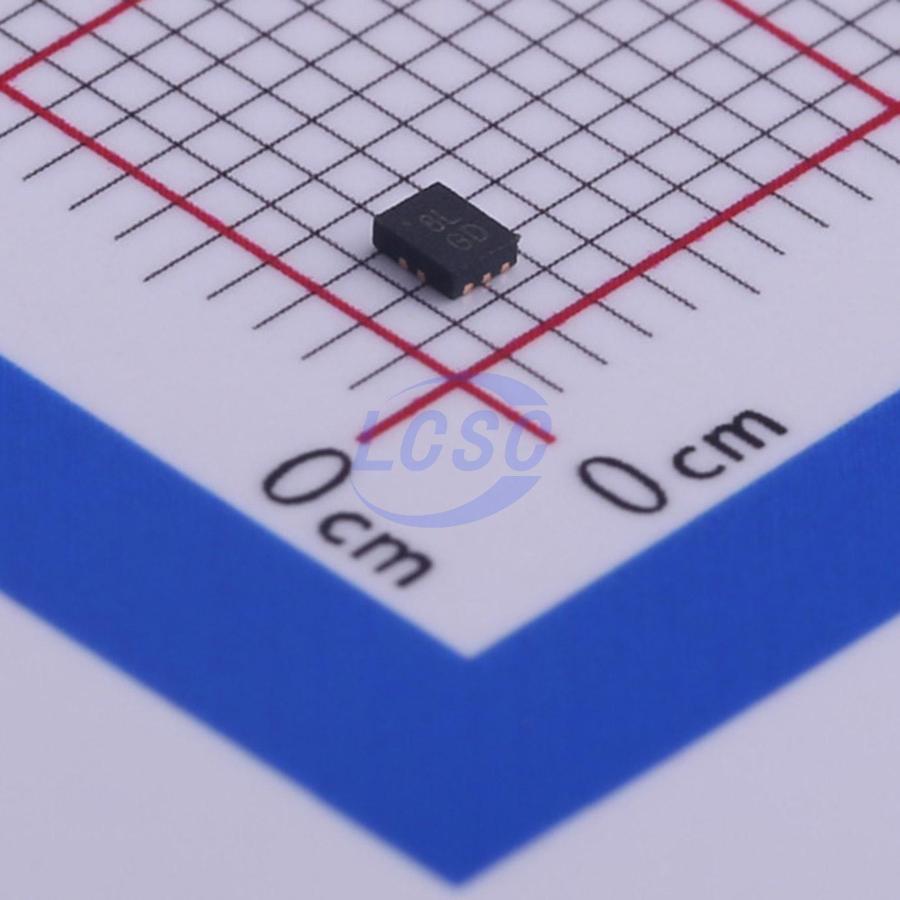

DIO1717LP10 DIOO
DIOO

DIO1717LP10

2.8Ω 2 2.5V~5V QFN-10(1.8x1.4) Analog Switches, Multiplexers, Demultiplexers RoHS

QFN-10(1.8x1.4)ROHS CompliantActive

2.8Ω, 300MHz Dual-SPPDT Analog Switch with Negative Swing Audio Capability

Manufacturer
DIOO
Manufacturer part #
DIO1717LP10
Store part #
C444371
Package / case
QFN-10(1.8x1.4)
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C444371

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹33.75₹168.75
50+₹26.50₹1,325.00
150+₹23.39₹3,508.50
500+₹19.51₹9,755.00
3,000+₹17.79₹53,370.00
6,000+₹16.76₹1,00,560.00

5 × ₹33.75

₹168.75

excl. GST

₹199.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

DIO1717LP10

₹168.75 for 5 + GST

Specifications

Features
Bidirectional analog channel;Glitch-free switching
Operating Temperature
-40℃~+85℃
Ron
2.8Ω
Number of Channels
2
Voltage - Supply
2.5V~5V

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.011 g

Overview

The DIO1717 is a dual, bidirectional, single-pole/ double-throw (SPDT) CMOS analog switch designed to operate from a single +2.5V to +5.0V supply. It features high bandwidth (300MHz) and low on-resistance (2.8Ω TYP), the lowest -2.0V negative signal can pass switch. DIO1717 features guaranteed on-resistance matching (0.05Ω TYP) between switches. This ensures excellent linearity and low distortion when switching audio signals. The DIO1717 is a committed dual single-pole/ double-throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer. DIO1717 is available in DQFN-10 package.

Applications

  • Cell Phone, and Digital Camera
  • PDA, and Notebook
  • LCD Monitor TV, and Set-Top Box

Key features

  • Voltage Operation: +2.5V to +5.0V
  • -2.0V to ± Signal Passing Ability
  • On-Resistance: 2.8Ω (TYP) at +4.5V
  • High Bandwidth: 300MHz
  • Fast Switching Times: tON 1.8μs tOFF 350ns
  • High Off-Isolation: -49dB at 10MHz
  • Low Crosstalk: -52dB at 10MHz
  • Negative signal handling: the lowest -2.0V
  • negative signal pass
  • TTL/CMOS Compatible
  • Break-Before-Make Switching
  • Extended Industrial Temperature Range: -40°C to +85°C

Alternatives

Similar parts — check the datasheet before substituting.

DIO3712LP10#C444640DIOO · QFN-10(1.8x1.4)Price on requestQuote
DIO1523LP10#C444365DIOO · QFN-10(1.8x1.4)Price on requestQuote
