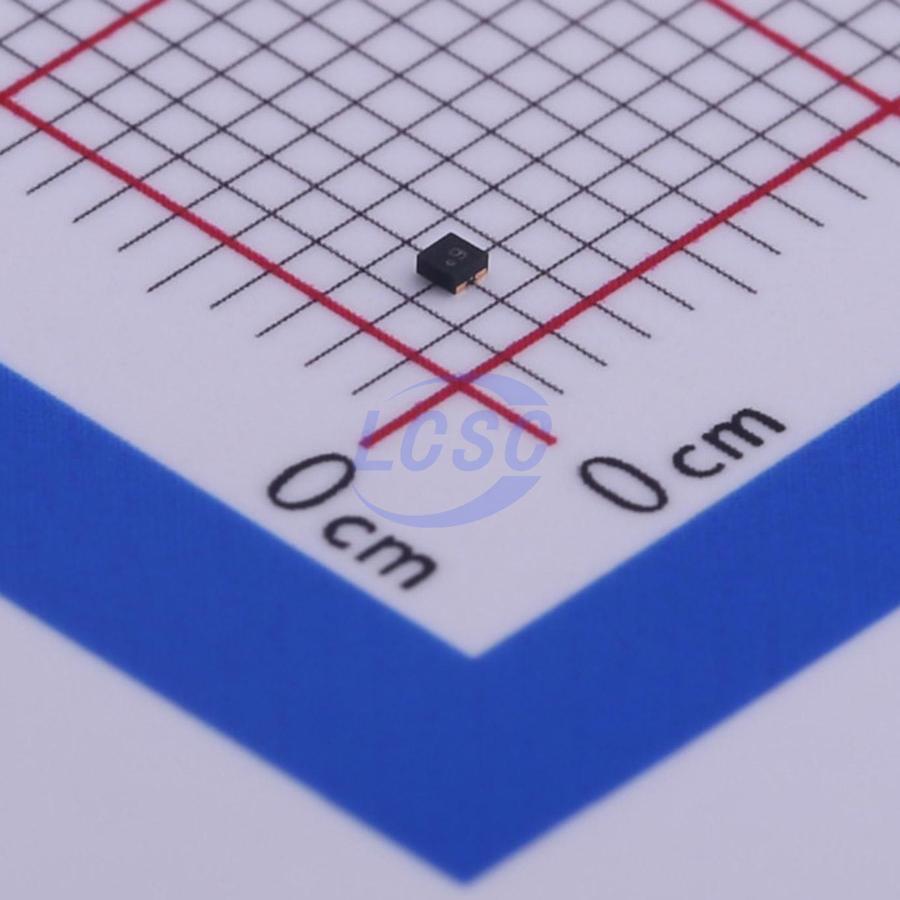

DIO20891CN4
1 500nA 5mV Rail-to-rail input DFN-4(0.8x0.8) Comparators
Ultra Low Power Comparator
- Manufacturer
- DIOO
- Manufacturer part #
- DIO20891CN4
- Store part #
- C444558
- Package / case
- DFN-4(0.8x0.8)
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,385 in stock
#C444558
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.85 | ₹94.25 |
| 50+ | ₹16.31 | ₹815.50 |
| 150+ | ₹15.23 | ₹2,284.50 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 2,500+ | ₹13.26 | ₹33,150.00 |
| 5,000+ | ₹12.90 | ₹64,500.00 |
5 × ₹18.85
₹94.25
excl. GST
₹111.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DIO20891CN4
₹94.25 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 8pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 70uV/℃
- Quiescent Current(Iq)
- 500nA
- Vos - Input Offset Voltage
- 5mV
- Output Current
- 23mA
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The Dl020891 is an ultra low-power comparator with a typical power supply current of 0.3μA. It has the best-in-class power supply current versus propagation delay performance. The propagation delay is as low as 8μs with 100mV overdrive at 1.4V supply. Designed to operate over a wide range of supply voltages, from 1.4V to 5.5V, with guaranteed operation at 1.4V, 1.8V, 2.5V and 5.0V, the DlO20891 is ideal for use in a variety of battery-powered applications. With rail-to-rail common mode voltage range, the Dlo20891 is well suited for single-supply operation.
Applications
- RC Timers
- Window Detectors
- IR Receiver
- Multi-vibrators
- Alarm and Monitoring Circuits
- Handheld electronics
- Mobile phone applications
Key features
- Ultra Low Power Consumption: 0.3μA (TYP) at V+=1.4V
- Wide Supply Voltage Range: 1.4V to 5.5V
- Propagation Delay: 8μs (TYP) at V+=1.4V
- Push-Pull Output Current Drive: 23mA (TYP) at V+=5V
- Rail-to-Rail Input
- -40°C to 85°C Operating Temperature Range
- Available in the Green SC70-5, DFN1*1-6 and DFNO.8*0.8-4 Packages
