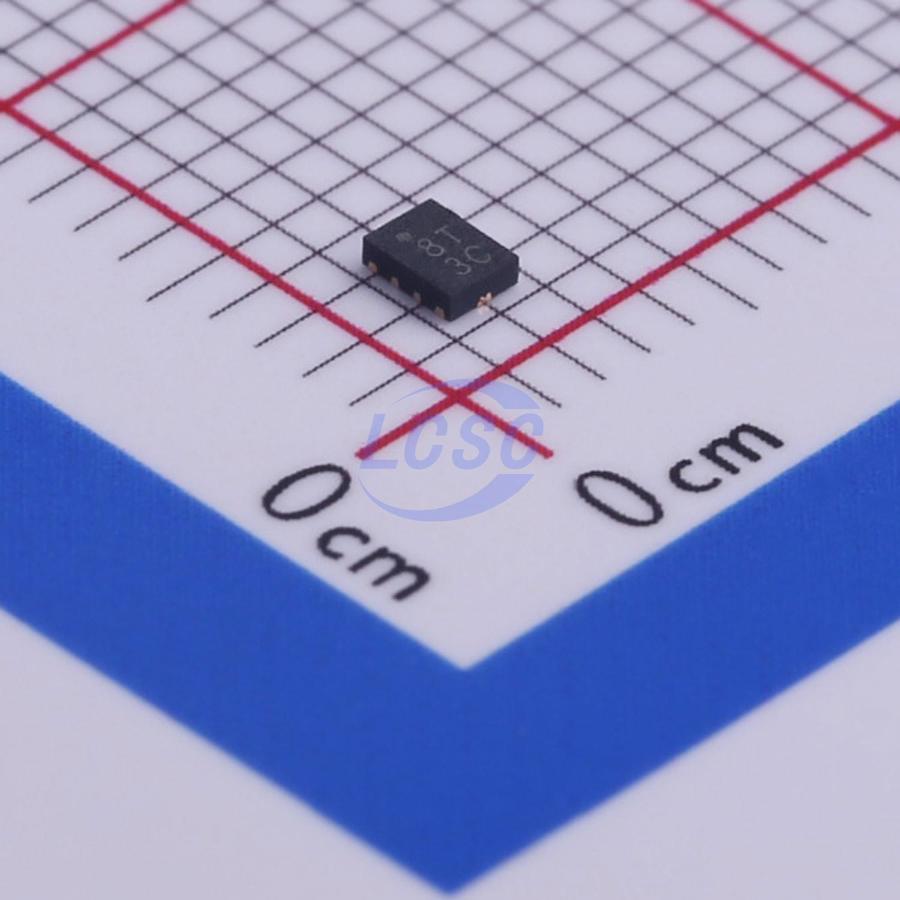

DIO3000QN10

DIO3000 is a dual SPDT switch that integrates an MHL switch and a USB 2.0 high-speed (480Mbps) switch in a single package. Its wide-bandwidth characteristics allow the USB connector to be used simultaneously for MHL video signal transmission and USB data transfer. DIO3000 offers a wide Vcc input voltage range of 2.3V to 5.5V and features over-voltage tolerance (OVT), enabling I/O pins to withstand over-voltage conditions up to 5.5V. When power is absent or turned off, the power-down protection feature places all I/O pins in high-impedance mode without generating excessive leakage current. The 1.8V-compatible control logic of DIO3000 allows direct interfacing with the GPIO of a baseband processor. DIO3000 is housed in a compact QFN2*1.5-10 package, making it ideal for handheld devices.

Applications

• Portable instruments
• Digital still cameras
• Tablet PCs
• Mobile phones

Key features

• Wide Vcc input voltage range: 2.3V to 5.5V
• USB channel:
• Bandwidth (-3dB): 5.8GHz
• Ron (typical): 4.6Ω
• Con (typical): 1.2pF
• MHL channel:
• Bandwidth (-3dB): 5.5GHz
• Ron (typical): 5.7Ω
• Con (typical): 1.4pF
• Ultra-low power consumption: 20μA (typical)
• Additional features:
• Power-off protection: ultra-low current leakage in power-off state (Vcc=0)
• All I/O pins overvoltage tolerant (OVT) up to 5.5V
• Overvoltage protection for data pins shorted to 9V
• QFN2*1.5-10 package
