DIOO

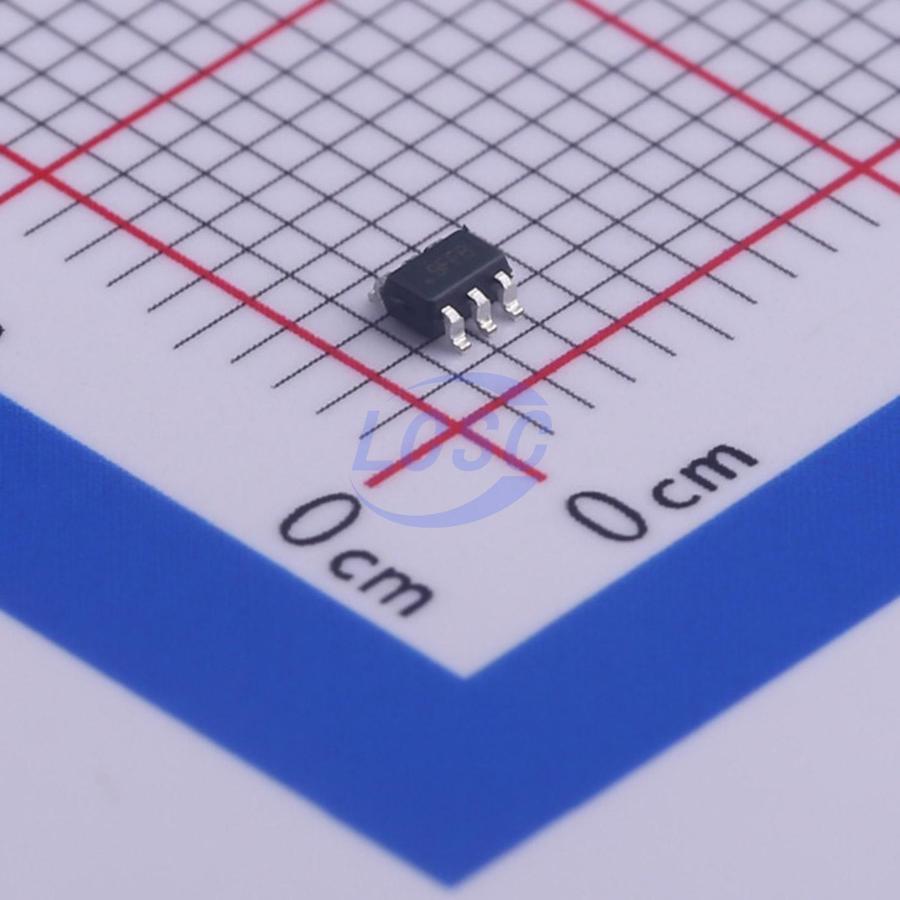

DIO3157ESC6

10Ω 1 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers

SC-70-6RoHSActive

Enhanced Low Voltage SPDT Analog Switch with Power On and Power Off Protection

Manufacturer: DIOO
Manufacturer part #: DIO3157ESC6
Store part #: C444615
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,215 in stock

#C444615

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.79	₹73.95
50+	₹11.89	₹594.50
150+	₹10.44	₹1,566.00
500+	₹9.35	₹4,675.00
3,000+	₹8.48	₹25,440.00
6,000+	₹8.04	₹48,240.00

Quantity (min 5, multiples of 5)

5 × ₹14.79

₹73.95

excl. GST

₹87.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO3157ESC6

₹73.95 for 5 + GST

Specifications

Features: Fault protection;Level shifting
Operating Temperature: -40℃~+85℃
Ron: 10Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Con: 16pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

The DIO3157E is an enhanced single-pole double-throw (SPDT) CMOS analog switch. It features power ON/OFF protection on common ports, effectively protecting device against external signal perturbation. It also offers excellent -3dB bandwidth and lower ON resistance, which can be used as analog switch in multiple applications. DIO3157E operates under wide Vcc supply from 1.65V to 5.5V, consuming very low quiescent current even when the voltage of S pin is lower than Vcc supply. This new feature services the mobile handset applications very well, allowing for the direct interface with baseband processor general purpose I/Os with no need of level translator.

Applications

Cell Phones
PDAs
Portable Instrumentation
Battery Powered Communications Computer Peripherals

Key features

Over-Voltage Tolerance (OVT) Features at common port
Low On Capacitance: 18pF Typical
Low On Resistance: 10Ω Maximum
Low Power Consumption: 1uA Maximum, 10uA Maximum ICC over an Expanded Voltage Range (Vcc=2.7V, Vcc=4.3V)
Wide -3dB Bandwidth: >300MHz
Wide Supply Range: 1.65~5.5V
Packaged: 6-Lead SC70 and SOT23
8kV HBM ESD Rating, 2kV CDM ESD Rating
