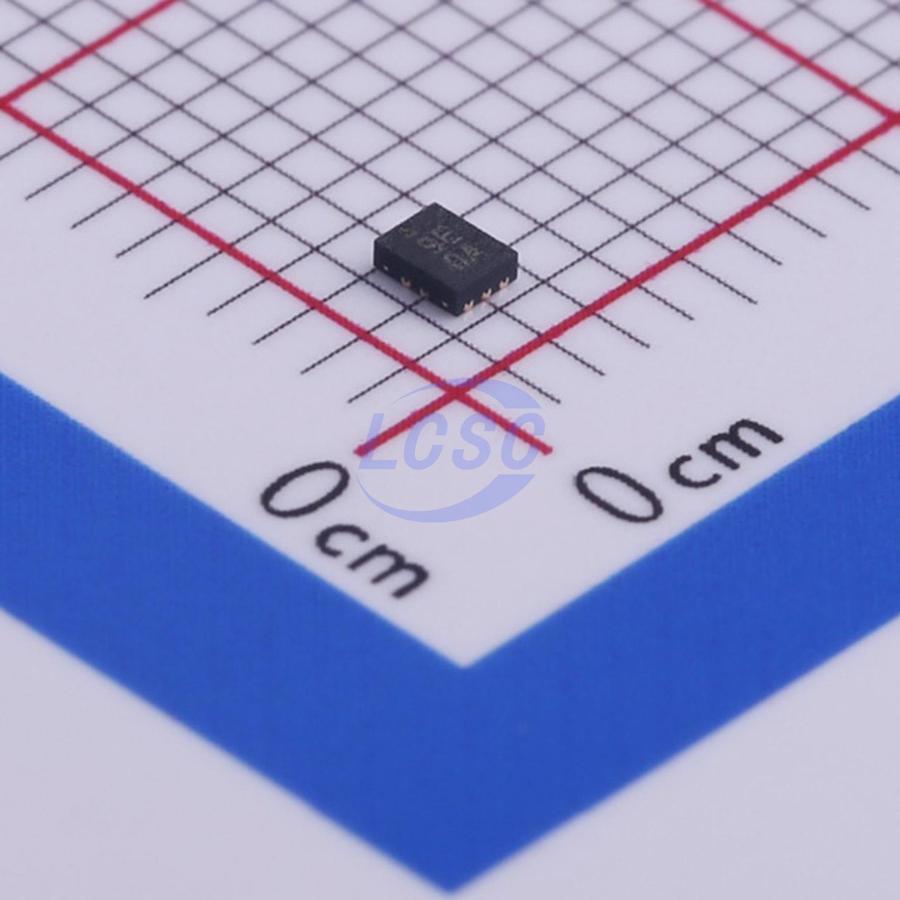

DIOO

DIO32020LP10

2.7V~5.5V 3.8Ω QFN-10(1.8x1.4) Analog Switches, Multiplexers, Demultiplexers

QFN-10(1.8x1.4)RoHSActive

USB2.0 High-Speed and Audio/USB/UART Switch with Negative Swing Capacity

Manufacturer: DIOO
Manufacturer part #: DIO32020LP10
Store part #: C444616
Package / case: QFN-10(1.8x1.4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,085 in stock

#C444616

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹34.79	₹173.95
50+	₹27.06	₹1,353.00
150+	₹23.75	₹3,562.50
500+	₹19.61	₹9,805.00
3,000+	₹17.77	₹53,310.00
6,000+	₹16.66	₹99,960.00

Quantity (min 5, multiples of 5)

5 × ₹34.79

₹173.95

excl. GST

₹205.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO32020LP10

₹173.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.7V~5.5V
Ron: 3.8Ω
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.011 g

Overview

The DIO32020 is dual SPDT (Single Pole/Double Throw) switch which combines low distortion audio/USB/UART and USB2.0 high-speed data signal switching in the same low voltage device. This architecture is designed to allow negative signal passing as low as 3V below ground. When a voltage is detected on VBUS, DIO32020 will immediately switch to USB mode. Due to ultra low capacitance design, the audio channels (pin 3 and pin 4 input/outputs) are able to not only switch audio signal but also high speed USB signal or low voltage UART signal as well. DIO32020 provides packages with Green or RoHS tiny 10L packages, and operates over a temperature range of -40°C to 85°C.
