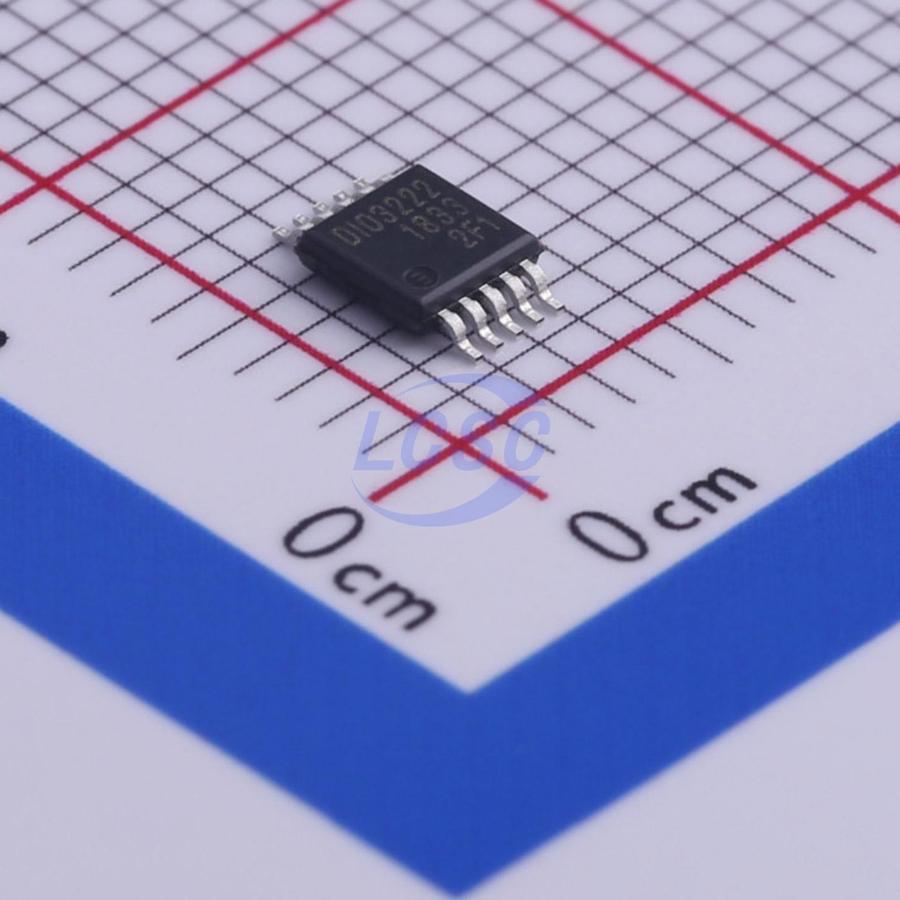

DIO32220MP10
2 480Mbps USB 2.0 MSOP-10 Interface Controllers
Low-Power, USB2.0 High-Speed Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO32220MP10
- Store part #
- C444624
- Package / case
- MSOP-10
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,315 in stock
#C444624
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.28 | ₹136.40 |
| 50+ | ₹21.15 | ₹1,057.50 |
| 150+ | ₹18.52 | ₹2,778.00 |
| 500+ | ₹15.24 | ₹7,620.00 |
| 3,000+ | ₹13.79 | ₹41,370.00 |
| 6,000+ | ₹12.90 | ₹77,400.00 |
5 × ₹27.28
₹136.40
excl. GST
₹160.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO32220MP10
₹136.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.7V~5.5V
- Number of ports
- 2
- Features
- Low-power mode;Power-off protection
- Data Rate
- 480Mbps
- Quiescent Supply Current
- 1uA
- USB Protocol
- USB 2.0
- Current - Supply
- 8uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The DlO32220 is a low power, dual SPDT2-port high-speed analog switch. It handles bi-directional signal flow optimized for switching a hi-speed (480Mbps) source or a full-speed (12Mbps) source. DlO32220 has high channel-to-channel noise isolation and low bit-to-bit skew which allows it to pass high-speed differential signals with good signal integrity. Each switch offers little or no attenuation of the high-speed signals at the outputs. The Dl032220 contains special circuitry on the D#/D pins, which can tolerate up to 5.5V when the USB devices either powered off or powered on. DlO32220 is available in three type Green packages: DQFN-10, QFN-10, and MSOP-10 package.
Applications
- Cell-Phone/PDA
- MP3/MP4/PMP
- STB/LCDTV
Key features
- Super high bandwidth (-3dB): > 2.0GHz
- Vcc operation at 2.7V to 5.5V
- Low Con: 3pF Typical
- Low Ron: 6Ω Typical
- Low Power Consumption: 1μA Maximum
- Low lcct: 8μμ Max × V₁ₓ₁ = 1.8V, VCC = 3.6V
- Packaged in Green MSOP-10, DQFN-10 and QFN-10
- 6kV HBM ESD on all pins
- Power-Off/On Protection on Common ports
- D+D- Pins Tolerate up to 5.5V
