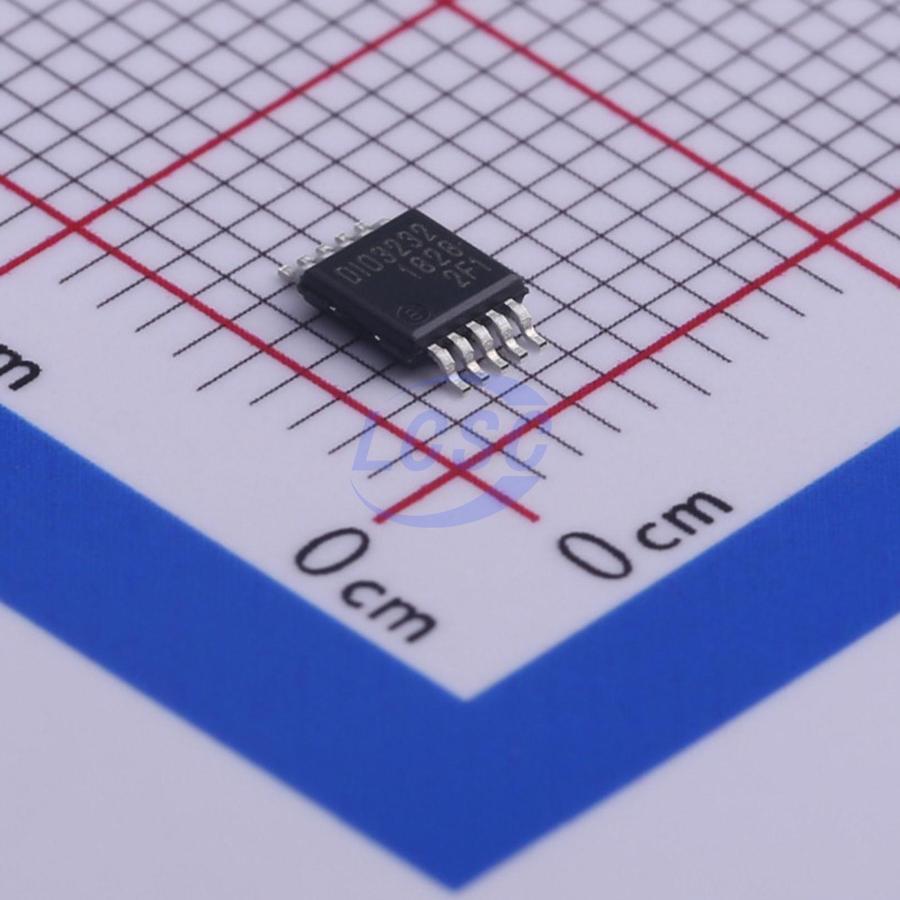

DIO32320MP10
2 480Mbps USB 2.0 MSOP-10 Interface Controllers
Low-Power, USB2.0 High-Speed Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO32320MP10
- Store part #
- C444626
- Package / case
- MSOP-10
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C444626
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.29 | ₹141.45 |
| 50+ | ₹21.92 | ₹1,096.00 |
| 150+ | ₹19.20 | ₹2,880.00 |
| 500+ | ₹15.80 | ₹7,900.00 |
| 3,000+ | ₹14.29 | ₹42,870.00 |
| 6,000+ | ₹13.38 | ₹80,280.00 |
5 × ₹28.29
₹141.45
excl. GST
₹166.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO32320MP10
₹141.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.7V~5.5V
- Number of ports
- 2
- Features
- Low-power mode;Power-off protection
- Data Rate
- 480Mbps
- Quiescent Supply Current
- 1uA
- USB Protocol
- USB 2.0
- Current - Supply
- 8uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The DlO32320 is a low power, dual SPDT2-port high-speed analog switch. Ithandles bi-directional signal flow optimized for switching a hi-speed (480Mbps) source or a full-speed (12Mbps) source. DlO32320 has high channel-to-channel noise isolation and low bit-to-bit skew which allows it to pass high-speed differential signals with good signal integrity. Each switch offers little or no attenuation of the high-speed signals at the outputs. The Dl032320 contains special circuitry on the D#/D· pins, which can tolerate up to 5.5V when the USB devices either powered off or powered on. DlO32320 is available in two type Green packages: DQFN-10 and MSOP-10 package.
Applications
- Cell-Phone/PDA
- MP3/MP4/PMP
- STB/LCDTV
Key features
- Super high bandwidth (-3dB): > 2.0GHz
- Vcc operation at 2.7V to 5.5V
- Low Con: 3pF Typical
- Low Ron: 6Ω Typical
- Low Power Consumption: μA Maximum
- Low lcct: 8μA Max @ V1x1 = 1.8V, VCC = 3.6V
- Packaged in Green MSOP-10 and DQFN-10
- 6kV HBM ESD on all pins
- Power-Off/On Protection on Common ports
- D#/D· Pins Tolerate up to 5.5V
