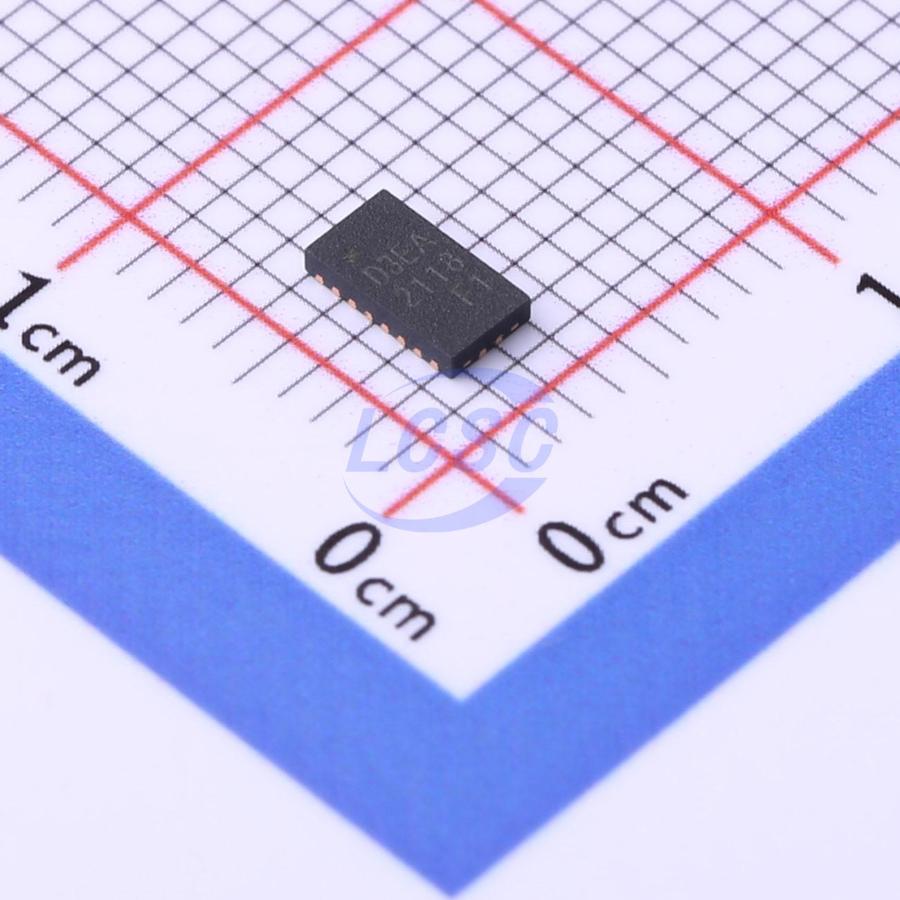

DIO3350AEN20
2 11Gbps QFN-20(2.5x4.5) Interface Controllers
USB 3.1/3.0 Super-Speed Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO3350AEN20
- Store part #
- C2980818
- Package / case
- QFN-20(2.5x4.5)
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,289 in stock
#C2980818
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.78 | ₹92.78 |
| 10+ | ₹83.01 | ₹830.10 |
| 30+ | ₹78.00 | ₹2,340.00 |
| 100+ | ₹73.23 | ₹7,323.00 |
| 500+ | ₹64.54 | ₹32,270.00 |
| 1,000+ | ₹63.01 | ₹63,010.00 |
1 × ₹92.78
₹92.78
excl. GST
₹109.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DIO3350AEN20
₹92.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.5V~5V
- Number of ports
- 2
- Features
- Shutdown mode
- Data Rate
- 11Gbps
- Quiescent Supply Current
- 21uA
- USB Protocol
- USB 3.0;USB 3.1
- Current - Supply
- 15uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The DIO3350 is a two pairs 2:1 data switch for USB Super Speed Gen1 and Gen2, 5 Gbps and 10 Gbps data. The DIO3350 focus on the mobile device market, for the use in Type-C applications as a reversible cable switch. It can minimize the switch channel to channel skew and channel to channel crosstalk of the super speed signals. The DIO3350 data switches offer superior performance, support various high speed data transmission protocols, such as USB3.0, USB3.1, 10GE, Thunderbolt, and SAS3.0.
Applications
- Smartphones
- Tablets
- Notebooks
Key features
- Wide VDD Input Voltage Range: 1.5V to 5.0V
- Up to 11 Gbps for applications including USB3.0, USB3.1, 10GE, Thunderbolt, and SAS3.0
- Bi-directional operation
- Bandwidth: 11GHz(Typical)
- -0.9dB Typical Insertion Loss at 2.5GHz
- Low Active Power of 15μ Typ. @3.6V, 1IN
- Low Shutdown Power of <0.5μ Max.
- Low Crosstalk: -55dB @2.5GHz
- Low Off Isolation: -27dB @2.56Hz
- Operation Temperature Range: -40°C to 85°C
- 2.5KV HBM ESD Protection
- Packaged in QFN2.6*1.8-16, QFN2.5*4.5-20 and QFN2*2-18
