DIOODatasheet (PDF)

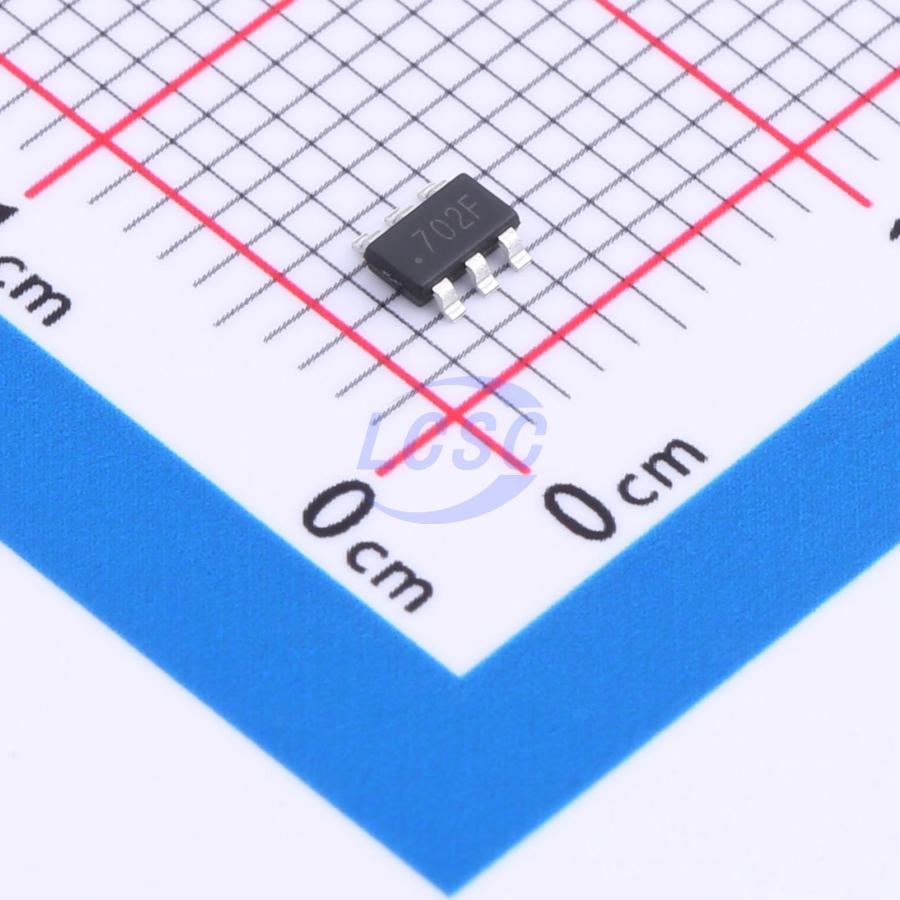

DIO54270TST6
500kHz Step-down type Adjustable 2A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High-Efficiency 2A, 28V Input Synchronous Step Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO54270TST6
- Store part #
- C2990566
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,043 in stock
#C2990566
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.67 | ₹53.67 |
| 10+ | ₹42.16 | ₹421.60 |
| 30+ | ₹37.16 | ₹1,114.80 |
| 100+ | ₹31.08 | ₹3,108.00 |
| 500+ | ₹28.26 | ₹14,130.00 |
| 1,000+ | ₹26.74 | ₹26,740.00 |
1 × ₹53.67
₹53.67
excl. GST
₹63.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO54270TST6
₹53.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.016 g
Overview
The DIO54270 is high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 2A output currents. The DIO54270 family operate over a wide input voltage range from 4.5V to 28V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. DIO54270 adopts the COT architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under heavy load conditions to minimize the size of inductor and capacitor.
Applications
- Meters and PLC Modules
- Industrial Control
- Portable TV
Key features
- Low RDS(ON) for internal switches (top/bottom) 120mΩ/75mΩ
- 2.0A 4.5 - 28V input voltage range
- High-Efficiency Synchronous-Mode
- Internal soft start limits the inrush current
- Over Current protection
- Thermal shutdown
- Green package: TSOT23-6 is pin compatible
