DIOODatasheet (PDF)

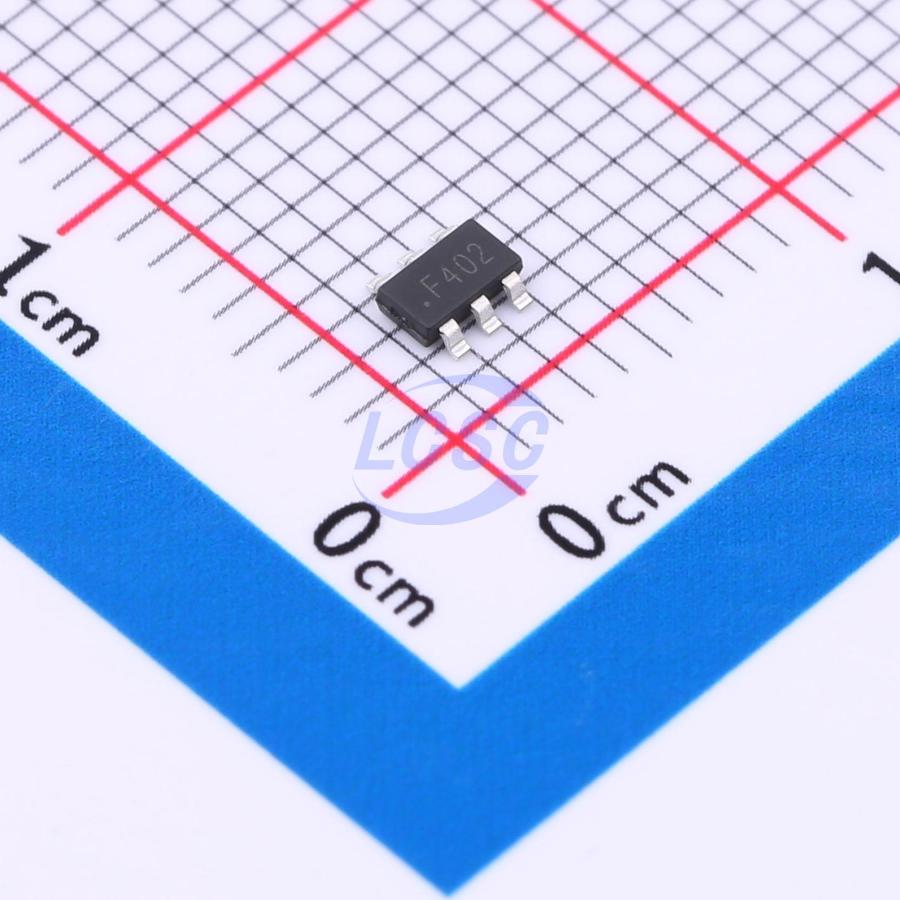

DIO54302TST6
500kHz Step-down type Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High-Efficiency 3A, 28V Input Synchronous Step Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO54302TST6
- Store part #
- C2980989
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C2980989
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.62 | ₹168.10 |
| 50+ | ₹26.38 | ₹1,319.00 |
| 150+ | ₹23.28 | ₹3,492.00 |
| 500+ | ₹19.42 | ₹9,710.00 |
| 3,000+ | ₹17.70 | ₹53,100.00 |
| 6,000+ | ₹16.67 | ₹1,00,020.00 |
5 × ₹33.62
₹168.10
excl. GST
₹198.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO54302TST6
₹168.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Overcurrent Protection;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The DIO54302 is high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 3A output currents. The DIO54302 family operate over a wide input voltage range from 4.5V to 28V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The COT architecture with Pseudo fixed switching frequency operation provides fast transient response and eases loop stabilization. DIO54302 operates in pulse skip mode, which maintains high efficiency during light load operation. Protection features include over-current protection and thermal shutdown. The DIO54302 requires a minimal number of readily-available, standard, external components and is available in a space-saving TSOT23-6 package.
Applications
- Portable Navigation Device
- Set Top Box
- Portable TV LCD TV
Key features
- Low RDS(ON) for internal switches (top/bottom) 80mΩ/40mΩ, 3.0A
- 4.5 - 28V input voltage range
- High-Efficiency Synchronous-Mode
- Internal soft start limits the inrush current
- Over Current protection
- Output short circuit protection with hiccup
- Thermal shutdown
- Available in TSOT23-6 package
