DIOODatasheet (PDF)

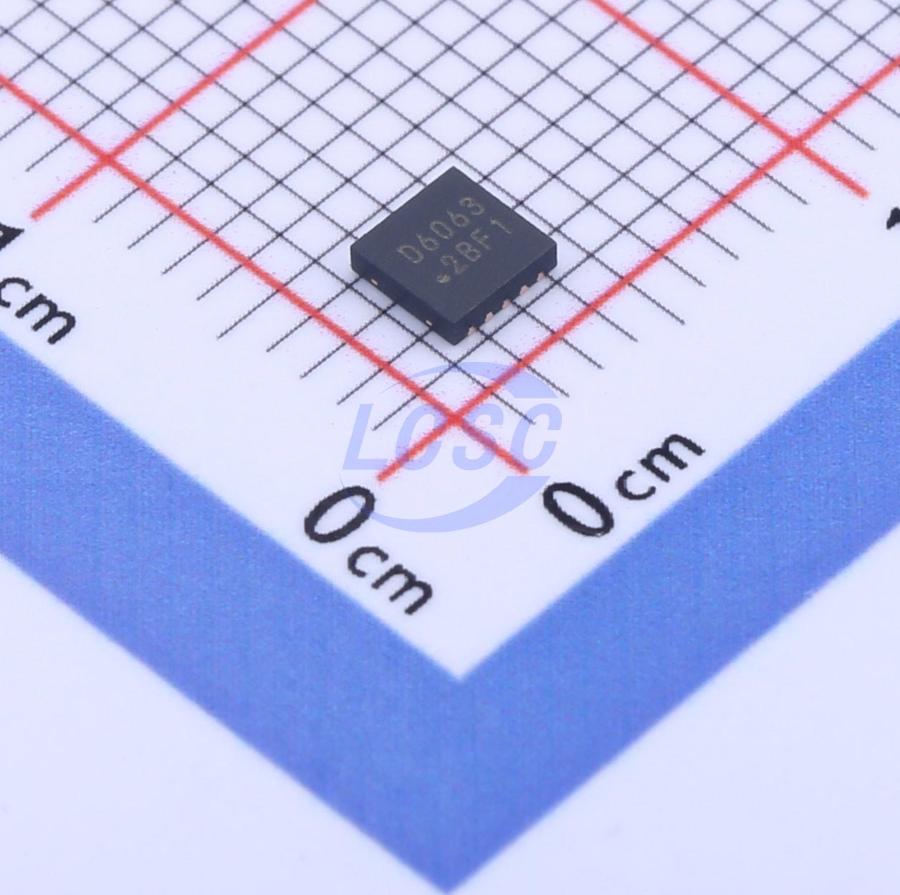

DIO6063CD10
1MHz Step-down type Adjustable 3.5A QFN-10(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-10(3x3)ROHS CompliantActive
High-Efficiency 1MHz, 3.5A Output Synchronous Step Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO6063CD10
- Store part #
- C2980988
- Package / case
- QFN-10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,615 in stock
#C2980988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.20 | ₹156.00 |
| 50+ | ₹27.24 | ₹1,362.00 |
| 150+ | ₹25.53 | ₹3,829.50 |
| 500+ | ₹23.42 | ₹11,710.00 |
| 2,500+ | ₹22.48 | ₹56,200.00 |
| 5,000+ | ₹21.91 | ₹1,09,550.00 |
5 × ₹31.20
₹156.00
excl. GST
₹184.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DIO6063CD10
₹156.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Hiccup current limiting;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
The DIO6063 is a high-efficiency 1MHz synchronous step-down DC-DC regulator IC capable of delivering up to 3.5A output current. The DIO6063 operates over a wide input voltage ranging from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.
Applications
- LCD TV
- Set Top Box
- Net PC
- Mini-Notebook PC
- Access Point
- Router
Key features
- Low RDS(ON) for internal switches (top/bottom) 90mΩ/70mΩ, 3.5A
- 2.7 - 5.5V input voltage range
- 1MHz switching frequency minimizes the external components
- Reliable short circuit protection: Hic-cup mode protection
- Internal soft start limits the inrush current
- 100% dropout operation
- No latch off output voltage protection
- RoHS Compliant and Halogen Free
- Compact package with DFN3*3-10
