DIOODatasheet (PDF)

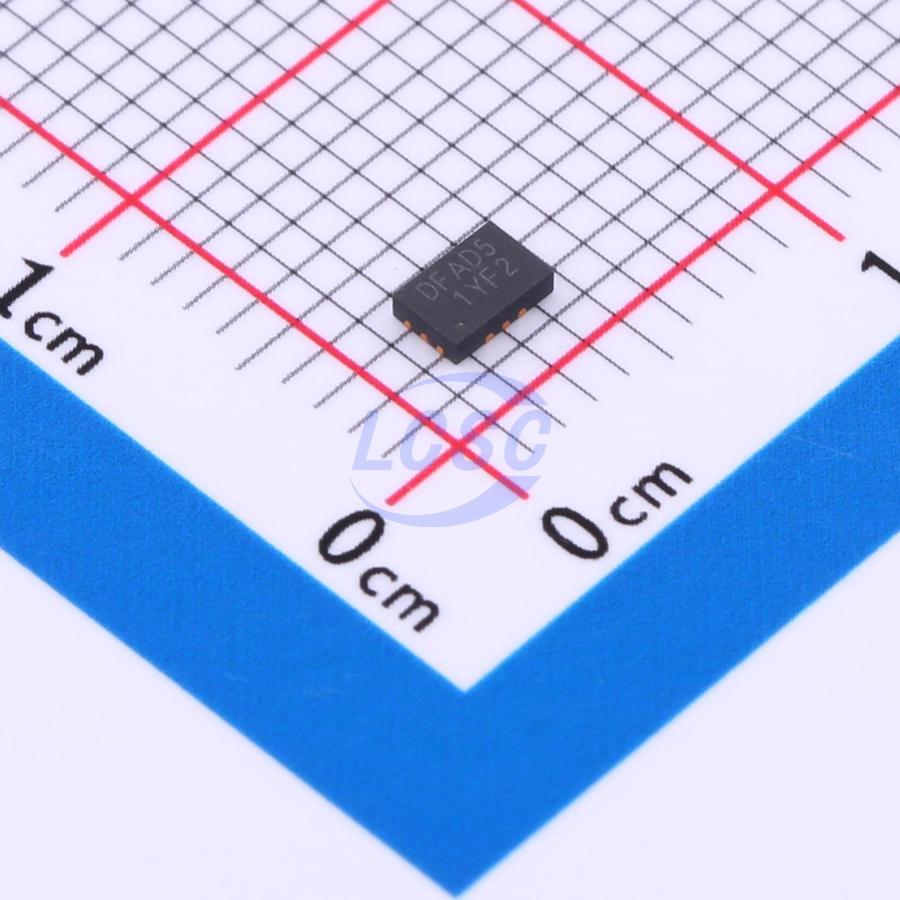

DIO6145QN12
1.2MHz Step-down type Adjustable 600mV~5.5V 6A QFN-12(2x3) Voltage Regulators - DC DC Switching Regulators
QFN-12(2x3)RoHSActive
High-Efficiency Synchronous Step-Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO6145QN12
- Store part #
- C2980987
- Package / case
- QFN-12(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,097 in stock
#C2980987
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.22 | ₹67.22 |
| 10+ | ₹52.47 | ₹524.70 |
| 30+ | ₹46.19 | ₹1,385.70 |
| 100+ | ₹38.38 | ₹3,838.00 |
| 500+ | ₹34.70 | ₹17,350.00 |
| 1,000+ | ₹32.74 | ₹32,740.00 |
1 × ₹67.22
₹67.22
excl. GST
₹79.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO6145QN12
₹67.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Dynamic voltage scaling;Operating status indication;Overcurrent Protection;Output discharge
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.8V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 6A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
The DIO6145 is a step-down DCDC converter with power MOSFETs integrated. It is able to provide continuous output current up to 6A. The output voltage can be regulated as low as below 0.6V. It also offers various protection scheme such as current-limiting and thermal shutdown. Optimized COT architecture (Constant on Time) allows both fast transient response and loop stability. Housed in a small flip-chip based QFN2*3-12 package, DIO6145 requires minimal external components to implement 6A output capability with superior thermal performance.
Applications
- Mobile or Battery-Powered Devices
- Storage (SSD, HDD)
Key features
- Operating Input Range: 2.8V to 5.5V
- Quiescent Current: 40μA
- Up to 6A Output Current
- Fixed Switching Frequency: 1.2MHz
- Adjustable Output from 0.6V
- 700μs Internal SS Time with Pre-Bias Startup
- 20mΩ and 12mΩ Internal Power MOSFETs
- Output discharge resistance: 600Ω
- 100% Duty Cycle in Dropout
- 1% Feedback Accuracy
- External Mode Control
- External VCON Control
- Cycle-by-Cycle Over Current Protection
- Short Circuit Protection with Hiccup Mode
- Stable with Low-ESR Output Ceramic Capacitors
- Thermal Shutdown
- Package: QFN2*3-12
