DIOODatasheet (PDF)

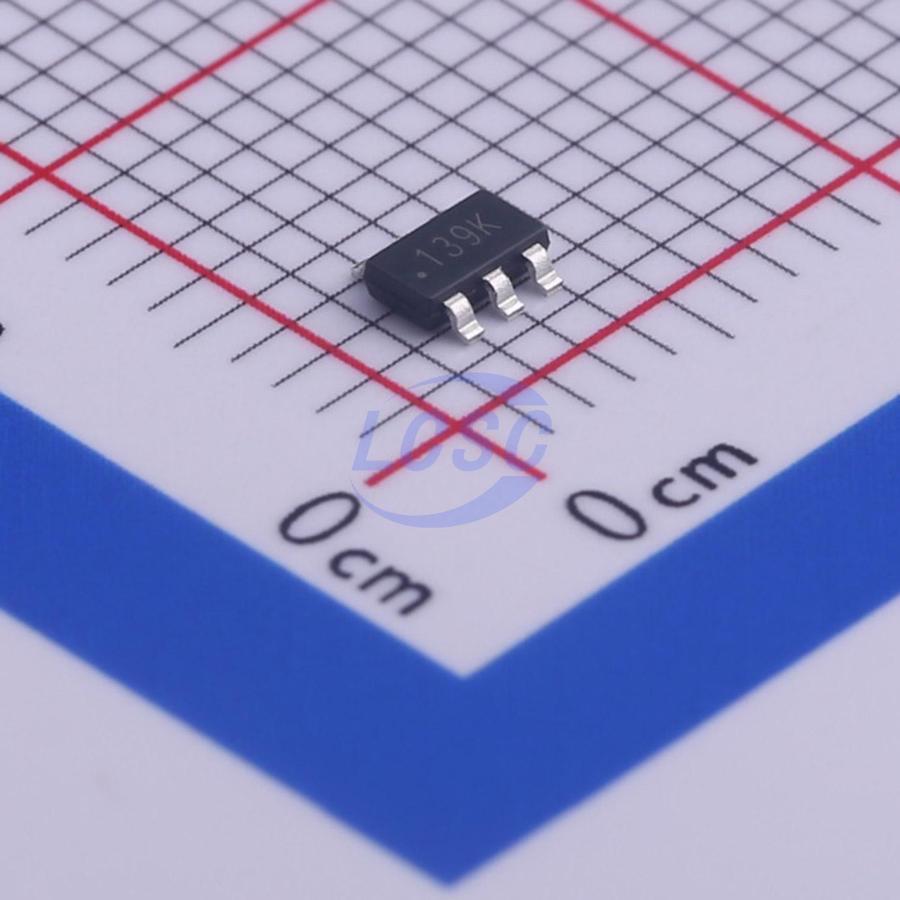

DIO6913TST6
500kHz Step-down type Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS CompliantActive
High-Efficiency 3A Synchronous Step Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO6913TST6
- Store part #
- C444643
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C444643
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.63 | ₹168.15 |
| 50+ | ₹26.86 | ₹1,343.00 |
| 150+ | ₹23.96 | ₹3,594.00 |
| 500+ | ₹20.33 | ₹10,165.00 |
| 3,000+ | ₹18.46 | ₹55,380.00 |
| 6,000+ | ₹17.48 | ₹1,04,880.00 |
5 × ₹33.63
₹168.15
excl. GST
₹198.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO6913TST6
₹168.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The DIO6913 is high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 3A output currents. The DIO6913 family operate over a wide input voltage range from 4.5V to 24V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The COT architecture with Pseudo fixed switching frequency operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The DIO6913 requires a minimal number of readily-available, standard, external components and is available in a space-saving TSOT23-6 package.
Applications
- Portable Navigation Device
- Set Top Box
- Portable TV LCD TV
Key features
- Low RDS(ON) for internal switches (top/bottom) 80mΩ/40mΩ, 3.0A 4.5 - 24V input voltage range
- High-Efficiency Synchronous-Mode
- Internal soft start limits the inrush current
- Over Current protection
- Thermal shutdown
- Available in TSOT23-6 package
