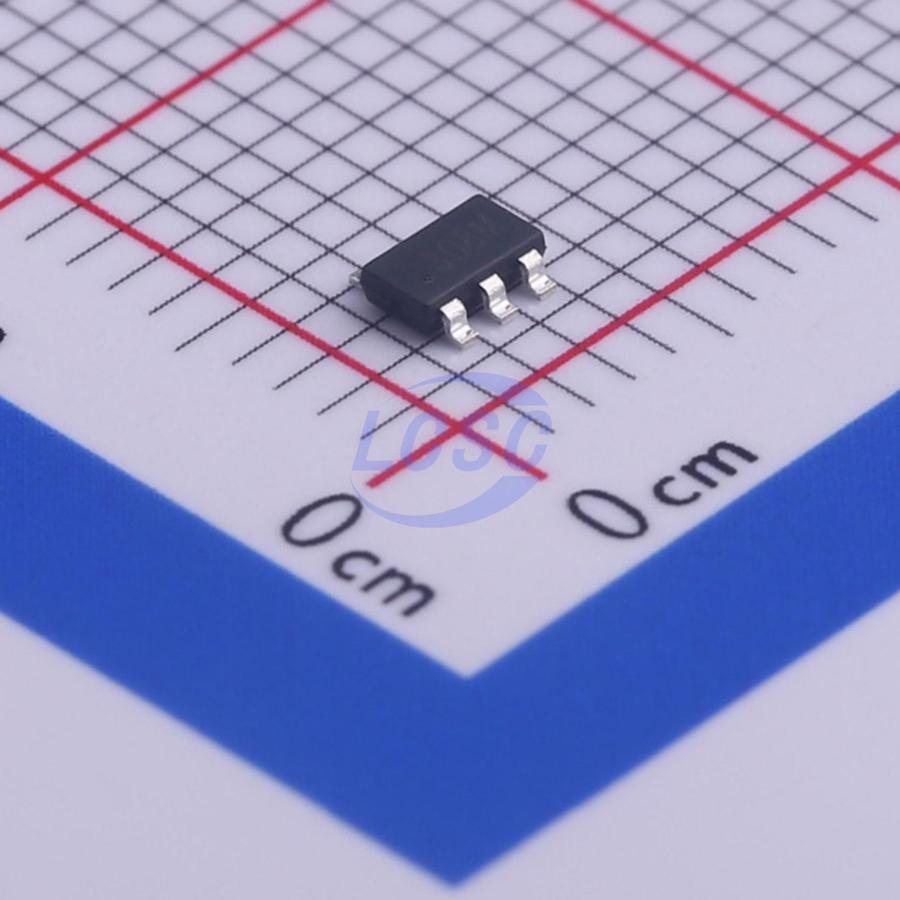

DIOO

DIO6930TST6

500kHz Step-down type Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators

TSOT-23-6RoHSActive

High-Efficiency 3A, 24V Input Synchronous Step Down Converter

Manufacturer: DIOO
Manufacturer part #: DIO6930TST6
Store part #: C444645
Package / case: TSOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,830 in stock

#C444645

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹35.19	₹175.95
50+	₹27.64	₹1,382.00
150+	₹24.40	₹3,660.00
500+	₹20.35	₹10,175.00
3,000+	₹18.56	₹55,680.00
6,000+	₹17.48	₹1,04,880.00

Quantity (min 5, multiples of 5)

5 × ₹35.19

₹175.95

excl. GST

₹207.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO6930TST6

₹175.95 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~24V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 140uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

The DIO6930 is high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 3A output currents. The DIO6930 family operate over a wide input voltage range from 4.5V to 24V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The COT architecture with Pseudo fixed switching frequency operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The DIO6930 requires a minimal number of readily-available, standard, external components and is available in a space-saving TSOT23-6 package.

Applications

Portable Navigation Device
Set Top Box
Portable TV LCD TV

Key features

Low RDS(ON) for internal switches (top/bottom) 80mΩ/40mΩ, 3.0A 4.5 - 24V input voltage range
High-Efficiency Synchronous-Mode
Internal soft start limits the inrush current
Over Current protection
Thermal shutdown
Available in TSOT23-6 packages
