DIOODatasheet (PDF)

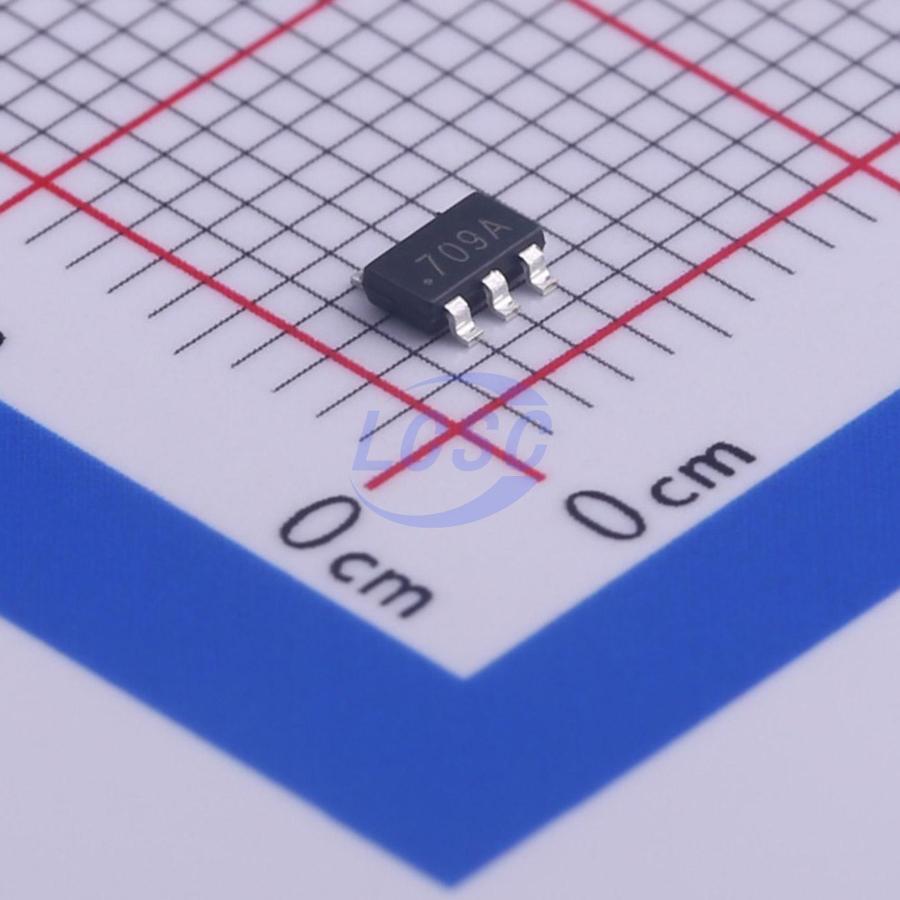

DIO6970TST6
Step-down type 500kHz Adjustable 2A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS CompliantActive
High-Efficiency 2A, 24V Input Synchronous Step Down Converter
- Manufacturer
- DIOO
- Manufacturer part #
- DIO6970TST6
- Store part #
- C444646
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,265 in stock
#C444646
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.69 | ₹153.45 |
| 50+ | ₹24.33 | ₹1,216.50 |
| 150+ | ₹21.62 | ₹3,243.00 |
| 500+ | ₹17.15 | ₹8,575.00 |
| 3,000+ | ₹15.64 | ₹46,920.00 |
| 6,000+ | ₹14.72 | ₹88,320.00 |
5 × ₹30.69
₹153.45
excl. GST
₹181.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO6970TST6
₹153.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The Dl06970 is high-efficiency, high frequency synchronous step-down Dc-Dc regulator ICs capable of delivering up to 2A output currents. The Dl06970 family operate over a wide input voltage range from 4.5V to 24V and integrate main switch and synchronous switch with very low Rps(on) to minimize the conduction loss. DlO6970 adopts the CoT architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under heavy load conditions to minimize the size of inductor and capacitor.
Applications
- Portable Navigation Device
- Set Top Box
- Portable TV
- LCD TV
Key features
- Low Ros(on) for internal switches (top/bottom) 120mΩ/75mΩ, 2.0A
- 4.5 - 24V input voltage range
- High-Efficiency Synchronous-Mode
- Internal soft start limits the inrush current
- Over Current protection
- Thermal shutdown
- Green package: TSOT23-6 is pin compatible.
