DIOO

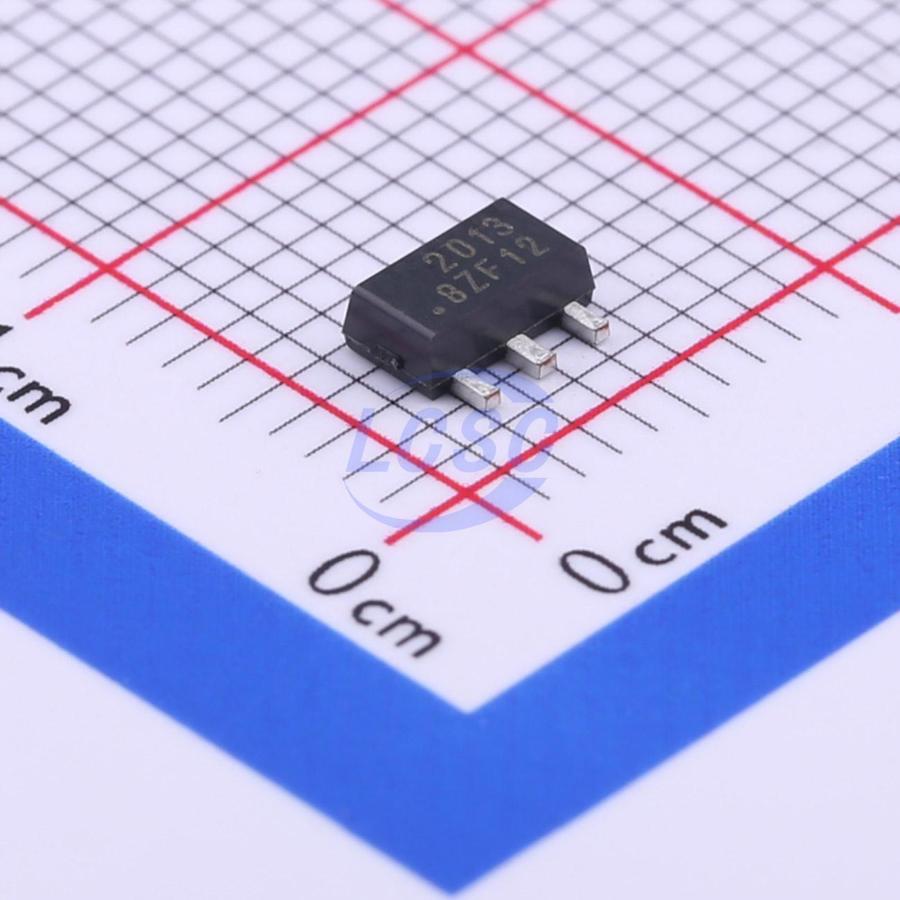

DIO8242F2TC3

1 AC-DC 120mA SOT-89 LED Drivers ICs

SOT-89RoHSActive

Adaptive Current Ripple Remover

Manufacturer: DIOO
Manufacturer part #: DIO8242F2TC3
Store part #: C428281
Package / case: SOT-89
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,970 in stock

#C428281

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.26	₹106.30
50+	₹16.70	₹835.00
150+	₹14.74	₹2,211.00
500+	₹12.30	₹6,150.00
2,500+	₹11.21	₹28,025.00
5,000+	₹10.56	₹52,800.00

Quantity (min 5, multiples of 5)

5 × ₹21.26

₹106.30

excl. GST

₹125.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

DIO8242F2TC3

₹106.30 for 5 + GST

Specifications

Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Type: AC-DC
Output Current: 120mA
Constant Current Accuracy: 1%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.223 g

Overview

DIO8242F2 is a regulator for driving internal NMOSFET to remove the 100/120Hz LED string current ripple on AC/DC power. Regulator for adaptive 100/120Hz current ripple remove Built-in zener diode for input voltage clamping Built-in 100V power MOSFET Programmable amplitude LED current ripple Programmable maximum cathode voltage of LED Programmable maximum LED current Optimized for TRIAC dimming, 1% brightness without flicker The current ripple is less than ± 1% SOT23-3, SOT89-3 and SOT223 packages Patented control strategies are optimized for remover current ripple. Nover circuit design makes a lower BOM and high cost-effective for flickerless filament.

Key features

Regulator for adaptive 100/120Hz current ripple remove
Built-in zener diode for input voltage clamping
Built-in 100V power MOSFET
Programmable amplitude LED current ripple
Programmable maximum cathode voltage of LED
Programmable maximum LED current
Optimized for TRIAC dimming, 1% brightness without flicker
The current ripple is less than ± 1%
SOT23-3, SOT89-3 and SOT223 packages
Patented control strategies are optimized for remover current ripple
Nover circuit design makes a lower BOM and high cost-effective for flickerless filament
