VBsemi ElecDatasheet (PDF)

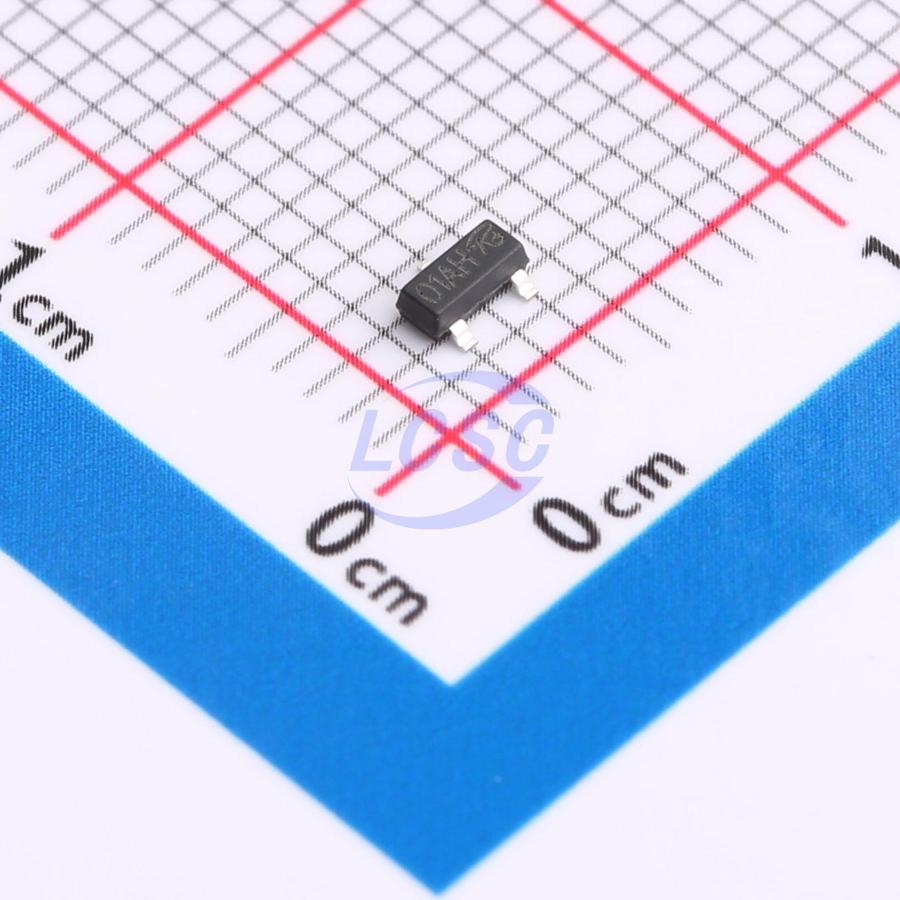

DMG2301U-7-VB
P-Channel 20V 4A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DMG2301U-7-VB
- Store part #
- C5456491
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5456491
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.90 | ₹89.00 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.18 | ₹1,854.00 |
| 3,000+ | ₹5.50 | ₹16,500.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹8.90
₹89.00
excl. GST
₹105.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG2301U-7-VB
₹89.00 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.062 g
Overview
XCH7N65F is a silicon N-channel enhancement-mode VDMOSFET utilizing self-aligned planar technology, which reduces conduction losses, improves switching performance, and enhances avalanche energy capability. This transistor is suitable for various power switching circuits to achieve system miniaturization and higher efficiency. Available in TO-220F package, RoHS compliant.
Applications
- Load Switch - Power Amplifier Switch - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CES2305-VB#C18212452VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹9.10 · 20 in stock | View |
 | SPP3413WS23RGB-VB#C19190244VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 70 | ₹9.00 · 70 in stock | View |
 | XP152A12COMRN-VB#C19626748VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹11.01 · 30 in stock | View |
 | BM2301-VB#C20754957VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹9.00 · 10 in stock | View |
 | TDM2301AC-TRL-VB#C20755280VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹8.67 · 50 in stock | View |
